SAXSdb — 1jvg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLCNAC1P URIDYLTRANSFERASE

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	URIDINE-DIPHOSPHATE-N-ACETYLGALACTOSAMINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	UAP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–522； UniProt 1–522 Author chain B； PDBConstruct 1–522； UniProt 1–522

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jvg
Deposition date deposition_date	2001-08-30
Structure title title	CRYSTAL STRUCTURE OF HUMAN AGX2 COMPLEXED WITH UDPGALNAC
Keywords keywords	NUCLEOTIDYLTRANSFERASE, ALTERNATIVE SPLICING, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jvg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

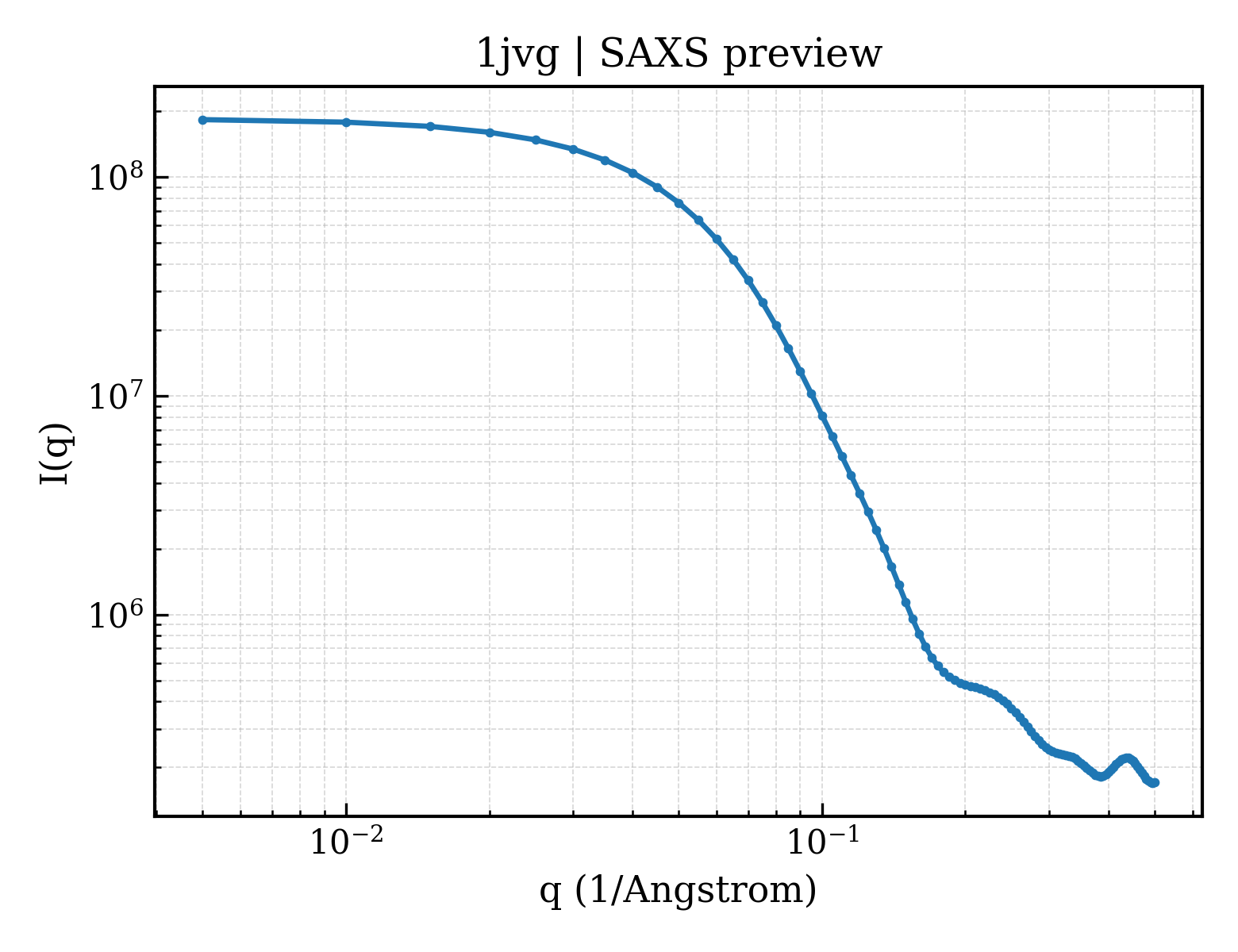

1jvg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1jvg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.61 Å
Rg (electron density)	32.07 Å
Total Rg	32.59 Å
Atom count	7725
Residues	965
Excluded volume	137670 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jvg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLCNAC1P URIDYLTRANSFERASE
Molecular weight formula_weight	58838.8 kDa
EC 编号 ec_number	2.7.7.23
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8040

MNINDLKLTLSKAGQEHLLRFWNELEEAQQVELYAELQAMNFEELNFFFQKAIEGFNQSSHQKNVDARMEPVPREVLGSATRDQDQLQAWESEGLFQISQNKVAVLLLAGGQGTRLGVAYPKGMYDVGLPSRKTLFQIQAERILKLQQVAEKYYGNKCIIPWYIMTSGRTMESTKEFFTKHKYFGLKKENVIFFQQGMLPAMSFDGKIILEEKNKVSMAPDGNGGLYRALAAQNIVEDMEQRGIWSIHVYCVDNILVKVADPRFIGFCIQKGADCGAKVVEKTNPTEPVGVVCRVDGVYQVVEYSEISLATAQKRSSDGRLLFNAGNIANHFFTVPFLRDVVNVYEPQLQHHVAQKKIPYVDTQGQLIKPDKPNGIKMEKFVFDIFQFAKKFVVYEVLREDEFSPLKNADSQNGKDNPTTARHALMSLHHCWVLNAGGHFIDENGSRLPAIPRSATNGKSETITADVNHNLKDANDVPIQCEISPLISYAGEGLESYVADKEFHAPLIIDENGVHELVKNGI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	URIDINE-DIPHOSPHATE-N-ACETYLGALACTOSAMINE
Molecular weight formula_weight	607.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	308

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jvga_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.5 — UDP-glucose pyrophosphorylase

Domain ID domain_id	d1jvgb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.68 — Nucleotide-diphospho-sugar transferases
Superfamily Superfamily superfamily	c.68.1 — Nucleotide-diphospho-sugar transferases
Family Family family	c.68.1.5 — UDP-glucose pyrophosphorylase

CATH v4.4 (4 domains)

Domain ID domain_id	1jvgA01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1jvgA02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	10 — Seminal Fluid Protein PDC-109 (Domain B)
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1jvgB01
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	550 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A
Homologous superfamily homologous superfamily	10 — Spore Coat Polysaccharide Biosynthesis Protein SpsA; Chain A

Domain ID domain_id	1jvgB02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	10 — Seminal Fluid Protein PDC-109 (Domain B)
Homologous superfamily homologous superfamily	100 —

▶

Unit-cell length a length_a	85.581 Å
Unit-cell length b length_b	71.785 Å
Unit-cell length c length_c	93.561 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.01 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.940 Å
R factor r_factor	—
R_work r_work	0.2010
R_free r_free	0.2400
