SAXSdb — 1jwg

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADP-ribosylation factor binding protein GGA1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Cation-independent mannose-6-phosphate receptor × 1 （P11717） IODIDE ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Cation-independent mannose-6-phosphate receptor × 1 （P11717） IODIDE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GGA1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–147； UniProt 1–147 Author chain B； PDBConstruct 1–147； UniProt 1–147

Cation-independent mannose-6-phosphate receptor

OrganismNot specified

UniProt P11717

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	ADP-ribosylation factor binding protein GGA1 × 1 （Q9UJY5） IODIDE ION × 2 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	ADP-ribosylation factor binding protein GGA1 × 1 （Q9UJY5） IODIDE ION × 4 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MPRI_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–13； UniProt 2479–2491 Author chain D； PDBConstruct 1–13； UniProt 2479–2491

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jwg
Deposition date deposition_date	2001-09-04
Structure title title	VHS Domain of human GGA1 complexed with cation-independent M6PR C-terminal Peptide
Keywords keywords	SUPER HELIX, PROTEIN-PEPTIDE COMPLEX, PROTEIN TRANSPORT-PROTEIN BINDING COMPLEX; PROTEIN TRANSPORT/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jwg__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jwg__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

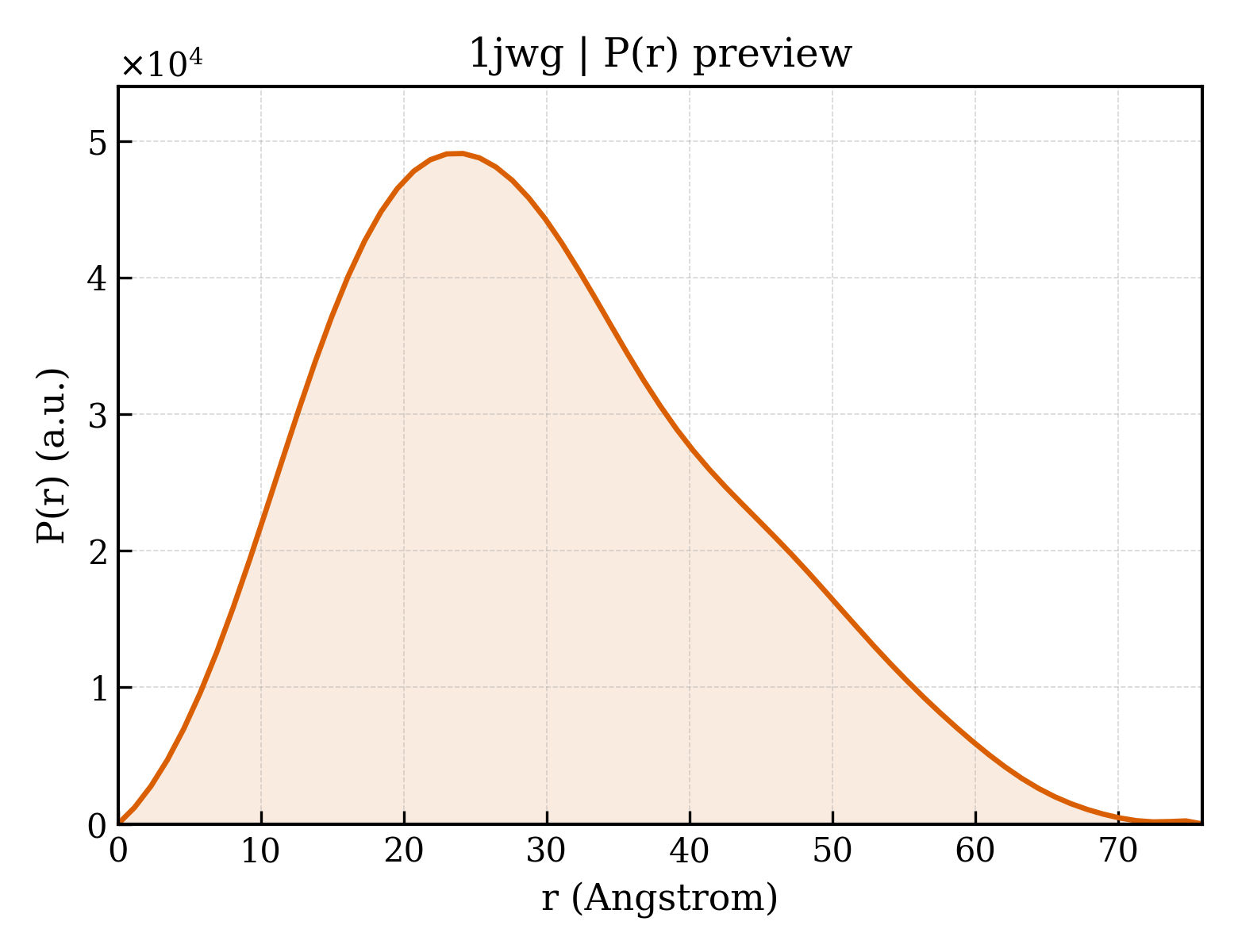

1jwg__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.10 Å
Rg (electron density)	14.78 Å
Total Rg	15.95 Å
Atom count	1188
Residues	147
Excluded volume	21395 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jwg__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1jwg__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ADP-ribosylation factor binding protein GGA1
Molecular weight formula_weight	16814.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	2559

MEPAMEPETLEARINRATNPLNKELDWASINGFCEQLNEDFEGPPLATRLLAHKIQSPQEWEAIQALTVLETCMKSCGKRFHDEVGKFRFLNELIKVVSPKYLGSRTSEKVKNKILELLYSWTVGLPEEVKIAEAYQMLKKQGIVKS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Cation-independent mannose-6-phosphate receptor
Molecular weight formula_weight	1544.6 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

SFHDDSDEDLLHI

Entity 3 Entity 3 non-polymer

Description description	IODIDE ION
Molecular weight formula_weight	126.9 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	198

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1jwga_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.9 — ENTH/VHS domain
Family Family family	a.118.9.2 — VHS domain

Domain ID domain_id	d1jwgb_
Class class	a — All alpha proteins
Fold Fold fold	a.118 — alpha-alpha superhelix
Superfamily Superfamily superfamily	a.118.9 — ENTH/VHS domain
Family Family family	a.118.9.2 — VHS domain

CATH v4.4 (2 domains)

Domain ID domain_id	1jwgA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	90 —

Domain ID domain_id	1jwgB00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	90 —

▶

Unit-cell length a length_a	56.146 Å
Unit-cell length b length_b	65.770 Å
Unit-cell length c length_c	101.426 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2280
R_work r_work	0.2263
R_free r_free	0.2611
