SAXSdb — 1jzo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

THIOL:DISULFIDE INTERCHANGE PROTEIN DSBC

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DSBC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–216； UniProt 21–236 Author chain B； PDBConstruct 1–216； UniProt 21–236

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1jzo
Deposition date deposition_date	2001-09-17
Structure title title	DsbC C101S
Keywords keywords	disulfide bond isomerase, thiol oxidoreductase, DsbC, thioredoxin fold, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1jzo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1jzo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

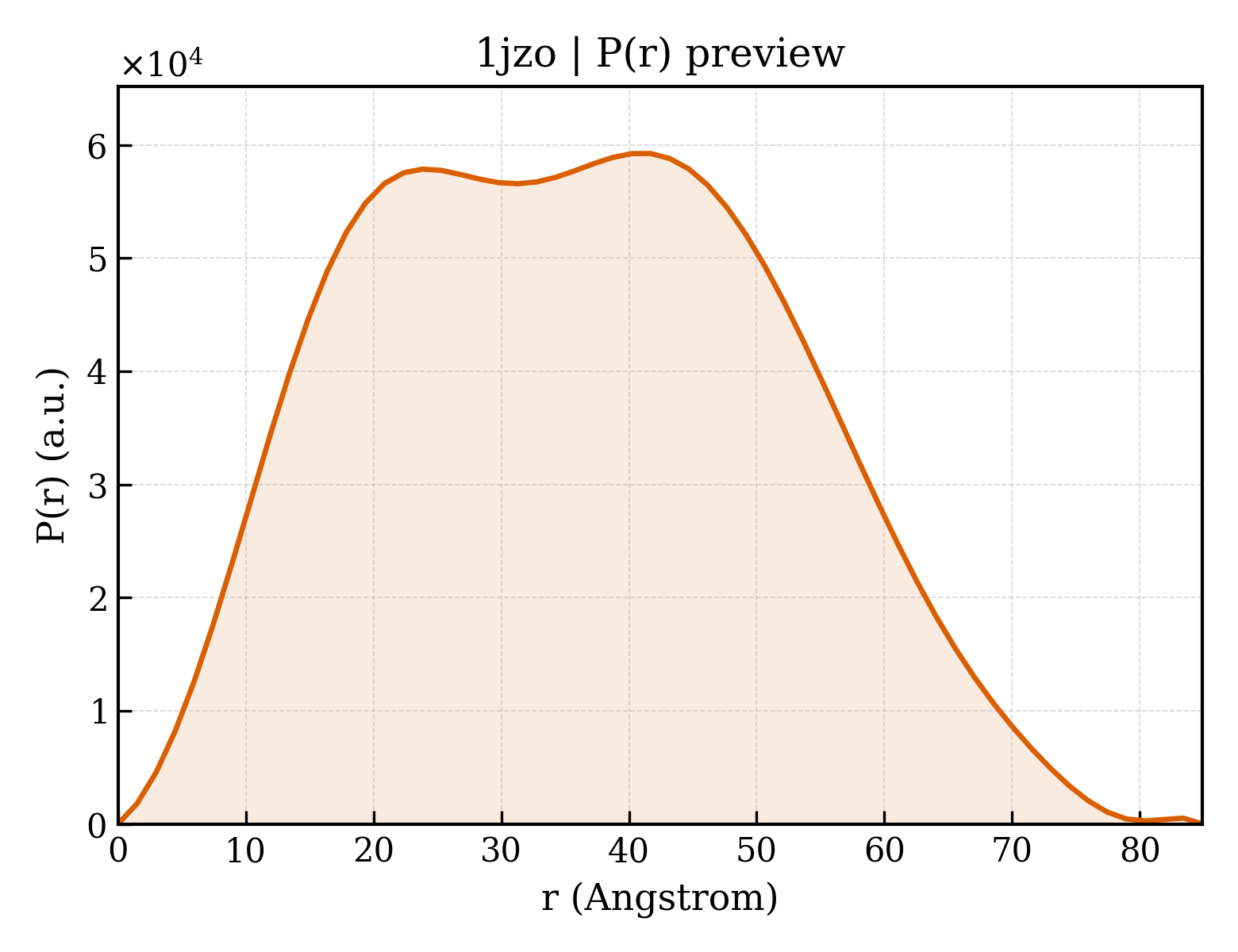

1jzo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.75 Å
Rg (electron density)	26.79 Å
Total Rg	27.60 Å
Atom count	3270
Residues	431
Excluded volume	58581 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1jzo__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1jzoa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.9 — DsbC/DsbG C-terminal domain-like

Domain ID domain_id	d1jzoa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.3 — DsbC/DsbG N-terminal domain-like
Family Family family	d.17.3.1 — DsbC/DsbG N-terminal domain-like

Domain ID domain_id	d1jzob1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.9 — DsbC/DsbG C-terminal domain-like

Domain ID domain_id	d1jzob2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.17 — Cystatin-like
Superfamily Superfamily superfamily	d.17.3 — DsbC/DsbG N-terminal domain-like
Family Family family	d.17.3.1 — DsbC/DsbG N-terminal domain-like

CATH v4.4 (4 domains)

Domain ID domain_id	1jzoA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	70 — Disulphide bond isomerase, DsbC/G, N-terminal

Domain ID domain_id	1jzoA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	1jzoB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	450 — Nuclear Transport Factor 2; Chain: A,
Homologous superfamily homologous superfamily	70 — Disulphide bond isomerase, DsbC/G, N-terminal

Domain ID domain_id	1jzoB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

▶

Unit-cell length a length_a	59.400 Å
Unit-cell length b length_b	78.294 Å
Unit-cell length c length_c	95.587 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.920 Å
Low-resolution limit resolution_low	32.690 Å
R factor r_factor	—
R_work r_work	0.2200
R_free r_free	0.2460

Description description	THIOL:DISULFIDE INTERCHANGE PROTEIN DSBC
Molecular weight formula_weight	23471.9 kDa
Mutation mutation	C101S
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3517

DsbC C101S

1. Protein Identity and Related Structures Protein Identity & Related Structures

THIOL:DISULFIDE INTERCHANGE PROTEIN DSBC

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1jzo__assembly_1__model_1

1jzo__assembly_1__model_1 | I(q)

1jzo__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	247
