1k25

PBP2x from a Highly Penicillin-resistant Streptococcus pneumoniae Clinical Isolate

Method: X-RAY DIFFRACTION D_max: 160.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

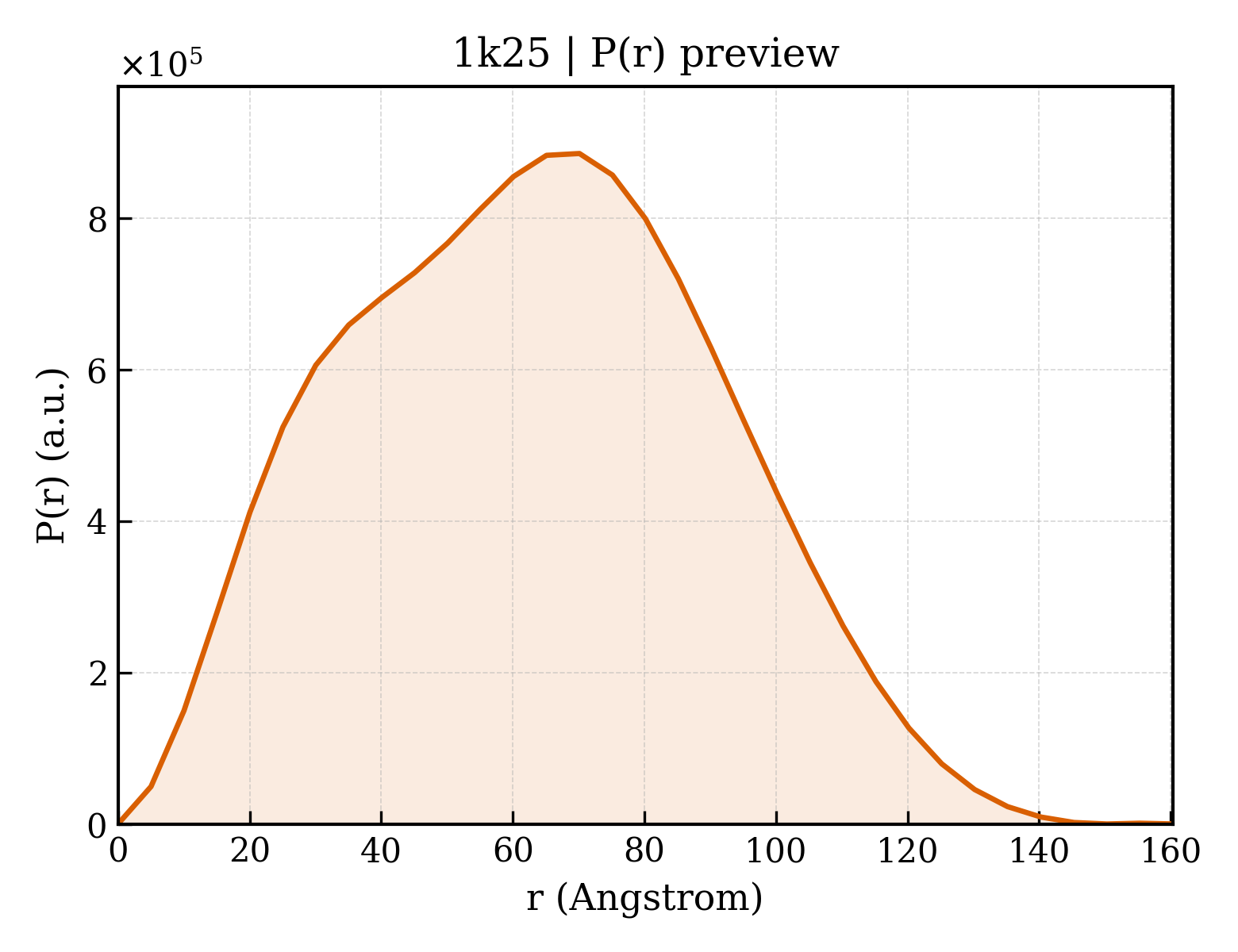

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1k25
沉积日期 deposition_date	2001-09-26
结构标题 title	PBP2x from a Highly Penicillin-resistant Streptococcus pneumoniae Clinical Isolate
关键词 keywords	antibiotic resistance, clinical mutant, low-affinity penicillin-binding, MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	48.96 Å
回转半径 Rg (电子) rg_electron	48.84 Å
零角强度 I(0) i0	840708000.00
分子量 molecular_weight	238260.0 kDa
排除体积 excluded_volume	296940 Å³
包络体积 envelope_volume	426250 Å³
水化壳体积 shell_volume	73202 Å³
包络直径 envelope_diameter	164.7 Å
壳层 Rg shell_rg	53.30 Å
包络 Rg envelope_rg	46.86 Å
形状 Rg shape_rg	48.82 Å
总 Rg total_rg	49.07 Å
总原子数 total_atoms	16765
残基数 n_residues	2237
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	160.3 Å
Rg (实空间) rg_real	48.79 Å
Rg 误差 (实空间) rg_real_error	1.32 Å
I(0) (实空间) i0_real	8.4070e+08
I(0) 误差 (实空间) i0_real_error	1.6670e+07
Rg (倒空间) rg_reciprocal	48.96 Å
I(0) (倒空间) i0_reciprocal	840900000.0000
解质量估计 total_estimate	0.8239
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	70.1 Å
偏度 Skewness skewness	0.116
峰度 Kurtosis kurtosis	-0.629
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	93510000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.902; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	low-affinity PENICILLIN-BINDING PROTEIN 2X
分子量 formula_weight	75259.4 kDa
突变 mutation	F364L
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	16786

HQITRTVPAKRGTIYDRNGVPIAEDATSYNVYAVIDKKYKSATGKILYVEDAQFNKVAEVFHKYLDMEESYVREQLSQPNLKQVSFGSKGNGITYANMMAIKKELETAEVKGIDFTTSPNRSYPNGQFASSFIGLAQLHENEDGSKSLLGTSGMESSLNSILAGTDGIITYEKDRVGNIVPGTELVSQQTVDGKDVYTTLSSPLQSFMETQMDAFLEKVKGKYMTATLVSAKTGEILATTQRPTFNADTKEGITEDFVWRDILYQSNYEPGSAMKVMTLASSIDNNTFPSGEYFNSSELKIADATTRDWDVNEGLTTGGMMTFLQGFAHSSNVGMSLLEQKMGDATWLDYLKRFKFGVPTRFGLTDEYAGQLPADNIVSIAQSSFGQGISVTQTQMLRAFTAIANDGVMLEPKFISAIYDTNNQSVRKSQKEIVGNPVSKEAASTTRNHMILVGTDPLYGTMYNHYTGKPIITVPGQNVAVKSGTAQIADEKNGGYLVGSTNYIFSAVTMNPAENPDFILYVTVQQPEHYSGIQLGEFATPILERASAMKESLNLQSPAKNLDKVTTESSYAMPSIKDISPGELAEALRRNIVQPIVVGTGTKIKETSVEEGTNLAPNQQVLLLSDKVEEIPDMYGWKKETAETFAKWLDIELEFEGSGSVVQKQDVRTNTAIKNIKKIKLTLGD

来源 Source

来源生物 organism	Streptococcus pneumoniae
NCBI 分类编号 ncbi_taxonomy_id	1313
宿主生物 host_organism	Escherichia coli

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	21

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (16 domains)

结构域编号 domain_id	d1k25a1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25a2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25a3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.175 — Penicillin binding protein dimerisation domain
超家族 Superfamily superfamily	d.175.1 — Penicillin binding protein dimerisation domain
家族 Family family	d.175.1.1 — Penicillin binding protein dimerisation domain

结构域编号 domain_id	d1k25a4
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.3 — beta-lactamase/transpeptidase-like
超家族 Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
家族 Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

结构域编号 domain_id	d1k25b1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25b2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25b3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.175 — Penicillin binding protein dimerisation domain
超家族 Superfamily superfamily	d.175.1 — Penicillin binding protein dimerisation domain
家族 Family family	d.175.1.1 — Penicillin binding protein dimerisation domain

结构域编号 domain_id	d1k25b4
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.3 — beta-lactamase/transpeptidase-like
超家族 Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
家族 Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

结构域编号 domain_id	d1k25c1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25c2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25c3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.175 — Penicillin binding protein dimerisation domain
超家族 Superfamily superfamily	d.175.1 — Penicillin binding protein dimerisation domain
家族 Family family	d.175.1.1 — Penicillin binding protein dimerisation domain

结构域编号 domain_id	d1k25c4
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.3 — beta-lactamase/transpeptidase-like
超家族 Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
家族 Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

结构域编号 domain_id	d1k25d1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25d2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.11 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
超家族 Superfamily superfamily	d.11.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain
家族 Family family	d.11.1.1 — Penicillin-binding protein 2x (pbp-2x), c-terminal domain

结构域编号 domain_id	d1k25d3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.175 — Penicillin binding protein dimerisation domain
超家族 Superfamily superfamily	d.175.1 — Penicillin binding protein dimerisation domain
家族 Family family	d.175.1.1 — Penicillin binding protein dimerisation domain

结构域编号 domain_id	d1k25d4
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.3 — beta-lactamase/transpeptidase-like
超家族 Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
家族 Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

CATH v4.4 (8 domains)

结构域编号 domain_id	1k25A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1310 — Penicillin-binding protein 2a (Domain 2)
同源超家族 H-superfamily homologous superfamily	10 — Penicillin-binding protein 2a (Domain 2)

结构域编号 domain_id	1k25A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	710 — Beta-lactamase
同源超家族 H-superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

结构域编号 domain_id	1k25B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1310 — Penicillin-binding protein 2a (Domain 2)
同源超家族 H-superfamily homologous superfamily	10 — Penicillin-binding protein 2a (Domain 2)

结构域编号 domain_id	1k25B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	710 — Beta-lactamase
同源超家族 H-superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

结构域编号 domain_id	1k25C01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1310 — Penicillin-binding protein 2a (Domain 2)
同源超家族 H-superfamily homologous superfamily	10 — Penicillin-binding protein 2a (Domain 2)

结构域编号 domain_id	1k25C02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	710 — Beta-lactamase
同源超家族 H-superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

结构域编号 domain_id	1k25D01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1310 — Penicillin-binding protein 2a (Domain 2)
同源超家族 H-superfamily homologous superfamily	10 — Penicillin-binding protein 2a (Domain 2)

结构域编号 domain_id	1k25D02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	710 — Beta-lactamase
同源超家族 H-superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	146.560 Å
晶胞边长 b length_b	146.560 Å
晶胞边长 c length_c	132.610 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 32
空间群编号 int_tables_number	145
晶系 crystal_system	—

分辨率 resolution	3.200 Å
最低分辨率 resolution_low	19.900 Å
R 因子 r_factor	0.2350
R_work r_work	0.2350
R_free r_free	0.3120
