Pseudomonas aeruginosa
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | ZINC ION × 1 L(+)-TARTARIC ACID × 1 water × 1 | Consistent with protein count |
| UniProt name | ALGC_PSEAE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain X； PDBConstruct 1–463； UniProt 0–462 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1k2y |
| Deposition date deposition_date | 2001-09-30 |
| Structure title title | Crystal Structure of Phosphomannomutase/Phosphoglucomutase S108A mutant from P. aeruginosa |
| Keywords keywords | ALPHA/BETA PROTEIN, ACTIVE-SITE MUTANT, ENZYME-LIGAND COMPLEX, ISOMERASE; ISOMERASE |
| Experimental Method method | X-RAY DIFFRACTION |

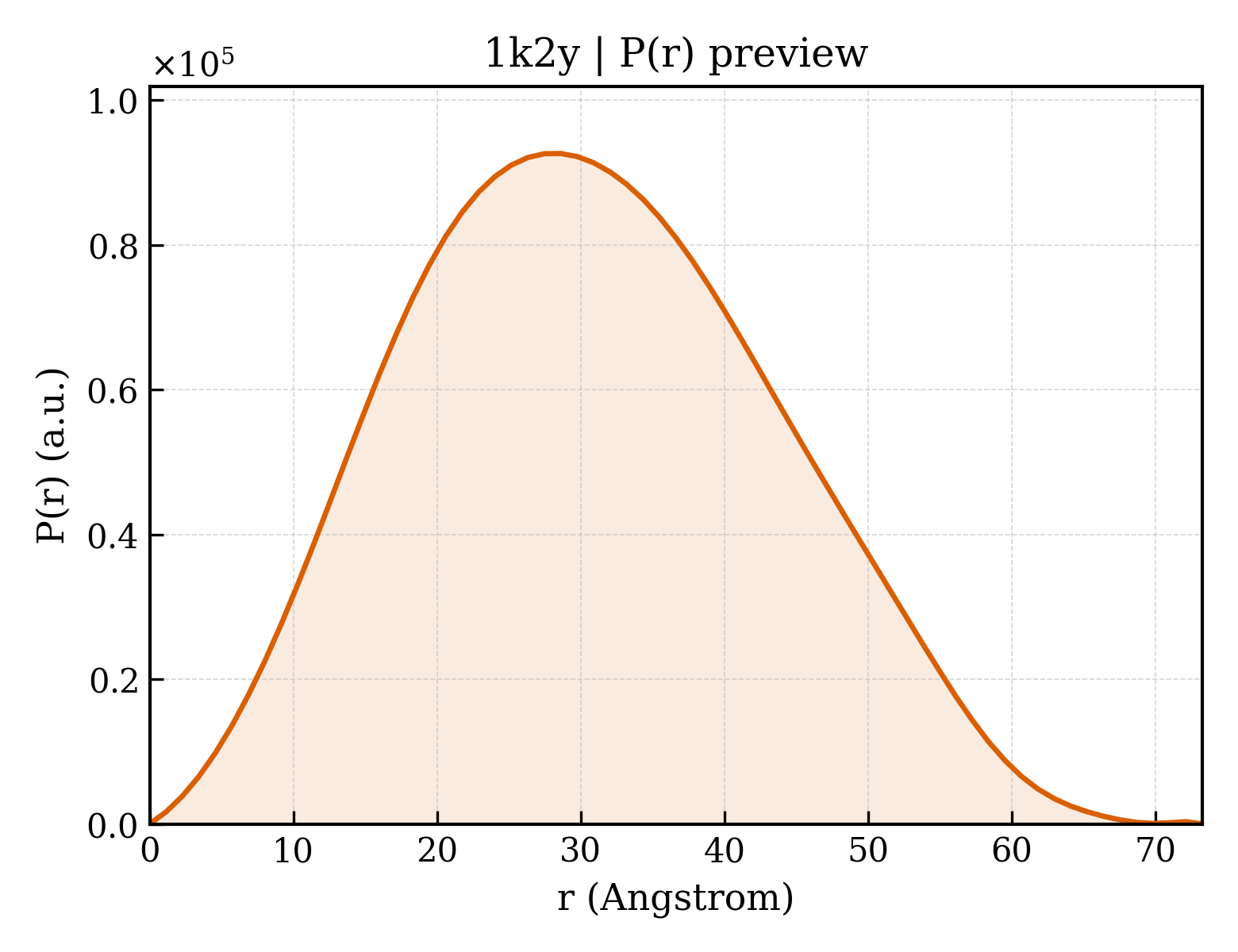

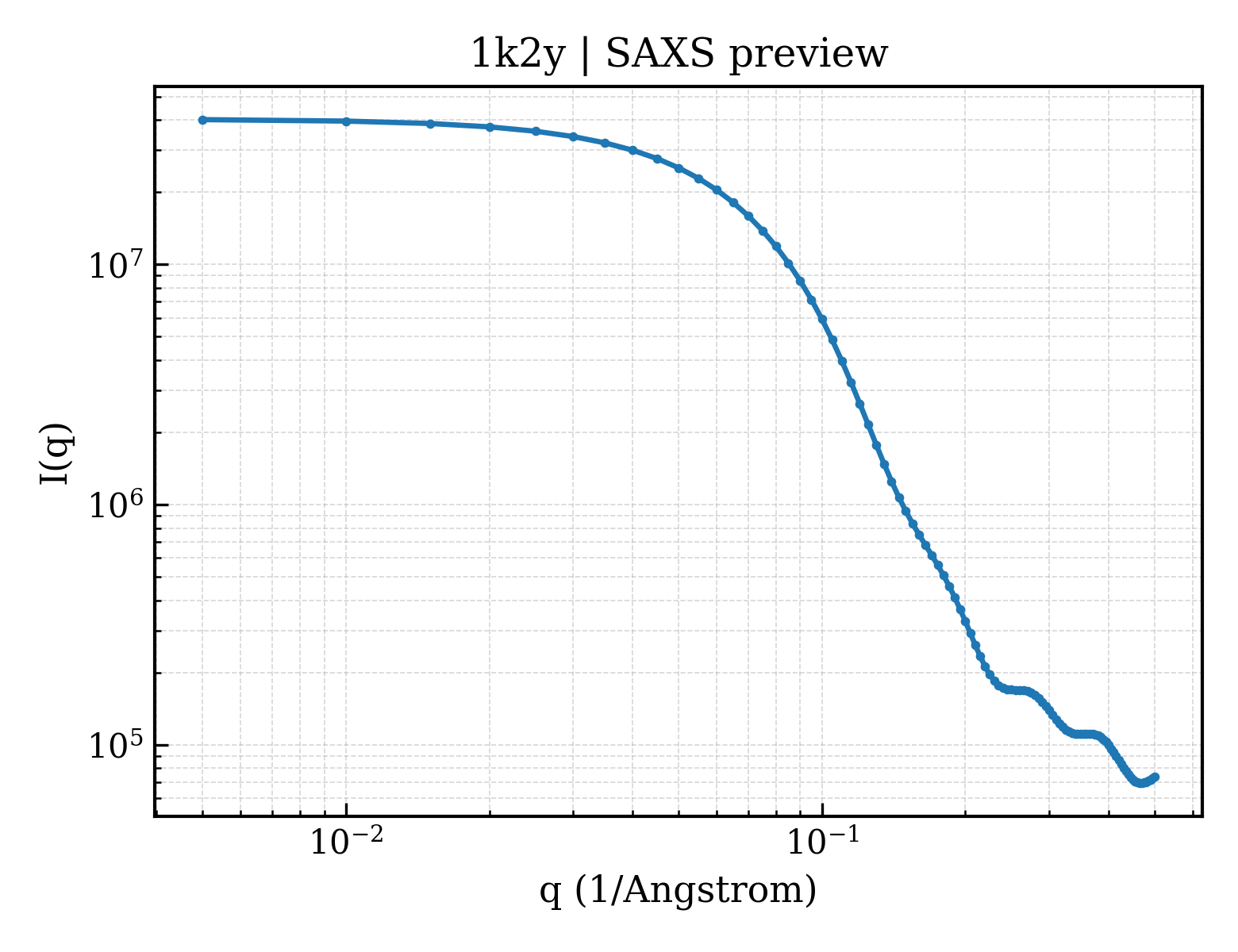

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 23.62 Å |
| Rg (electron density) | 22.55 Å |
| Total Rg | 23.37 Å |
| Atom count | 3469 |
| Residues | 459 |
| Excluded volume | 61887 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1k2yx1 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.84 — Phosphoglucomutase, first 3 domains |
| Superfamily Superfamily superfamily | c.84.1 — Phosphoglucomutase, first 3 domains |
| Family Family family | c.84.1.1 — Phosphoglucomutase, first 3 domains |
| Domain ID domain_id | d1k2yx2 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.84 — Phosphoglucomutase, first 3 domains |
| Superfamily Superfamily superfamily | c.84.1 — Phosphoglucomutase, first 3 domains |
| Family Family family | c.84.1.1 — Phosphoglucomutase, first 3 domains |
| Domain ID domain_id | d1k2yx3 |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.84 — Phosphoglucomutase, first 3 domains |
| Superfamily Superfamily superfamily | c.84.1 — Phosphoglucomutase, first 3 domains |
| Family Family family | c.84.1.1 — Phosphoglucomutase, first 3 domains |
| Domain ID domain_id | d1k2yx4 |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.129 — TBP-like |
| Superfamily Superfamily superfamily | d.129.2 — Phosphoglucomutase, C-terminal domain |
| Family Family family | d.129.2.1 — Phosphoglucomutase, C-terminal domain |
| Domain ID domain_id | 1k2yX01 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3 |
| Homologous superfamily homologous superfamily | 10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3 |
| Domain ID domain_id | 1k2yX02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3 |
| Homologous superfamily homologous superfamily | 10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3 |
| Domain ID domain_id | 1k2yX03 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 120 — Alpha-D-Glucose-1,6-Bisphosphate; Chain A, domain 3 |
| Homologous superfamily homologous superfamily | 10 — Alpha-D-Glucose-1,6-Bisphosphate, subunit A, domain 3 |
| Domain ID domain_id | 1k2yX04 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 310 — TATA-Binding Protein |
| Homologous superfamily homologous superfamily | 50 — Alpha-D-phosphohexomutase, C-terminal domain |
