SAXSdb — 1k3s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

SigE

Salmonella enterica

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	PHOSPHATE ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SIGE_SALTY
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–113； UniProt 1–113 Author chain B； PDBConstruct 1–113； UniProt 1–113

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k3s
Deposition date deposition_date	2001-10-03
Structure title title	Type III Secretion Chaperone SigE
Keywords keywords	Type III, secretion, chaperone, SigE; CHAPERONE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k3s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

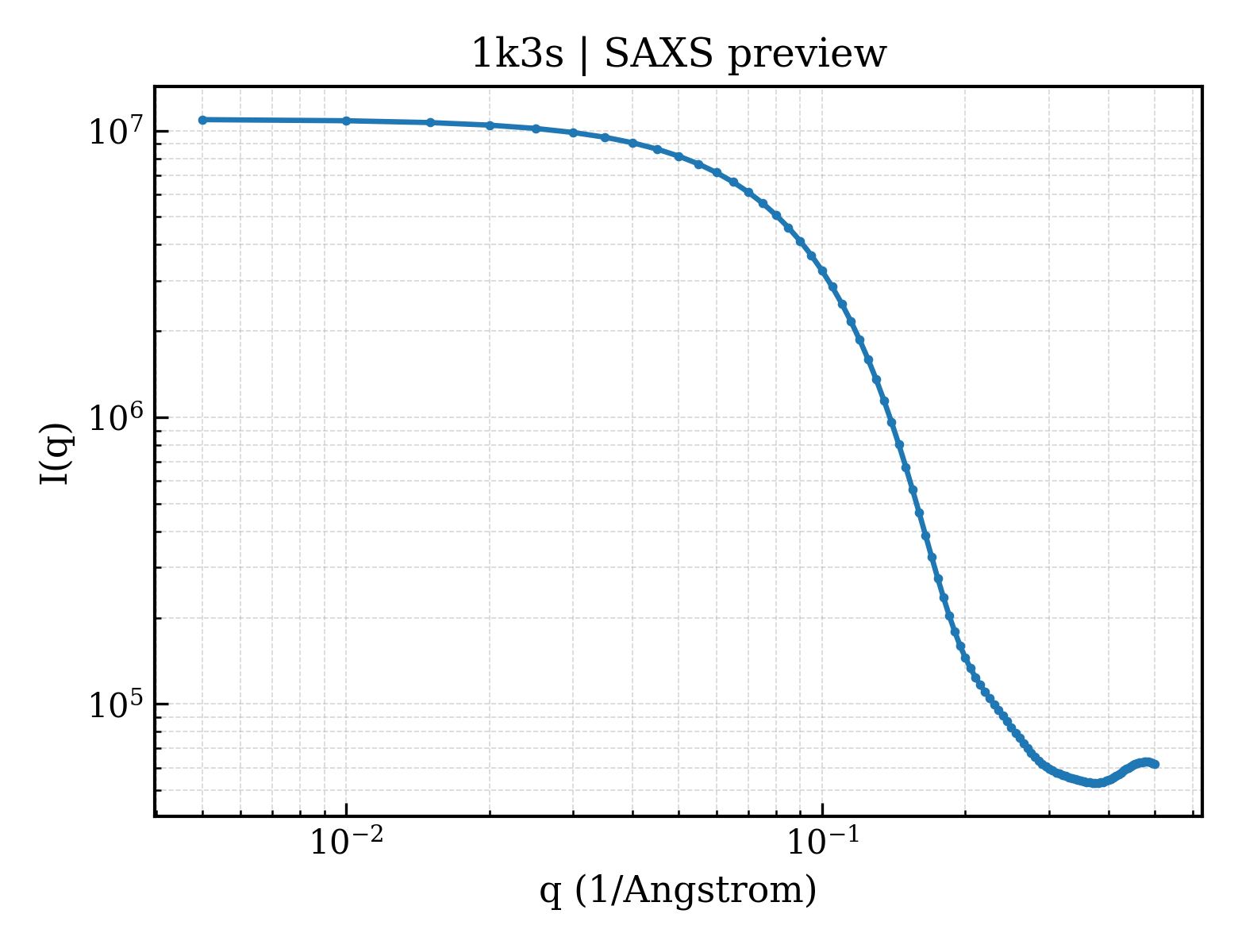

1k3s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1k3s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.84 Å
Rg (electron density)	17.79 Å
Total Rg	18.74 Å
Atom count	1707
Residues	210
Excluded volume	30525 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k3s__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	SigE
Molecular weight formula_weight	12900.0 kDa
Mutation mutation	none
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1758

MESLLNRLYDALGLDAPEDEPLLIIDDGIQVYFNESDHTLEMCCPFMPLPDDILTLQHFLRLNYTSAVTIGADADNTALVALYRLPQTSTEEEALTGFELFISNVKQLKEHYA

Source Source

Source organism organism	Salmonella enterica
NCBI taxonomy ID ncbi_taxonomy_id	28901
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	50

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1k3sa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.198 — Secretion chaperone-like
Superfamily Superfamily superfamily	d.198.1 — Type III secretory system chaperone-like
Family Family family	d.198.1.1 — Type III secretory system chaperone

Domain ID domain_id	d1k3sb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.198 — Secretion chaperone-like
Superfamily Superfamily superfamily	d.198.1 — Type III secretory system chaperone-like
Family Family family	d.198.1.1 — Type III secretory system chaperone

CATH v4.4 (2 domains)

Domain ID domain_id	1k3sA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1460 — Yope Regulator; Chain: A,
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1k3sB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1460 — Yope Regulator; Chain: A,
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	44.497 Å
Unit-cell length b length_b	48.725 Å
Unit-cell length c length_c	94.532 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2236
R_work r_work	0.2236
R_free r_free	0.2717
