SAXSdb — 1k53

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein L

Finegoldia magna

UniProt Q51912

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 6 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q51912_PEPMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–72； UniProt 111–173 Author chain B； PDBConstruct 10–72； UniProt 111–173

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k53
Deposition date deposition_date	2001-10-09
Structure title title	Monomeric Protein L B1 Domain with a G15A Mutation
Keywords keywords	Protein L B1 domain, strained beta-hairpin turn, positive phi angles, domain swapping, amyloid formation, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k53__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

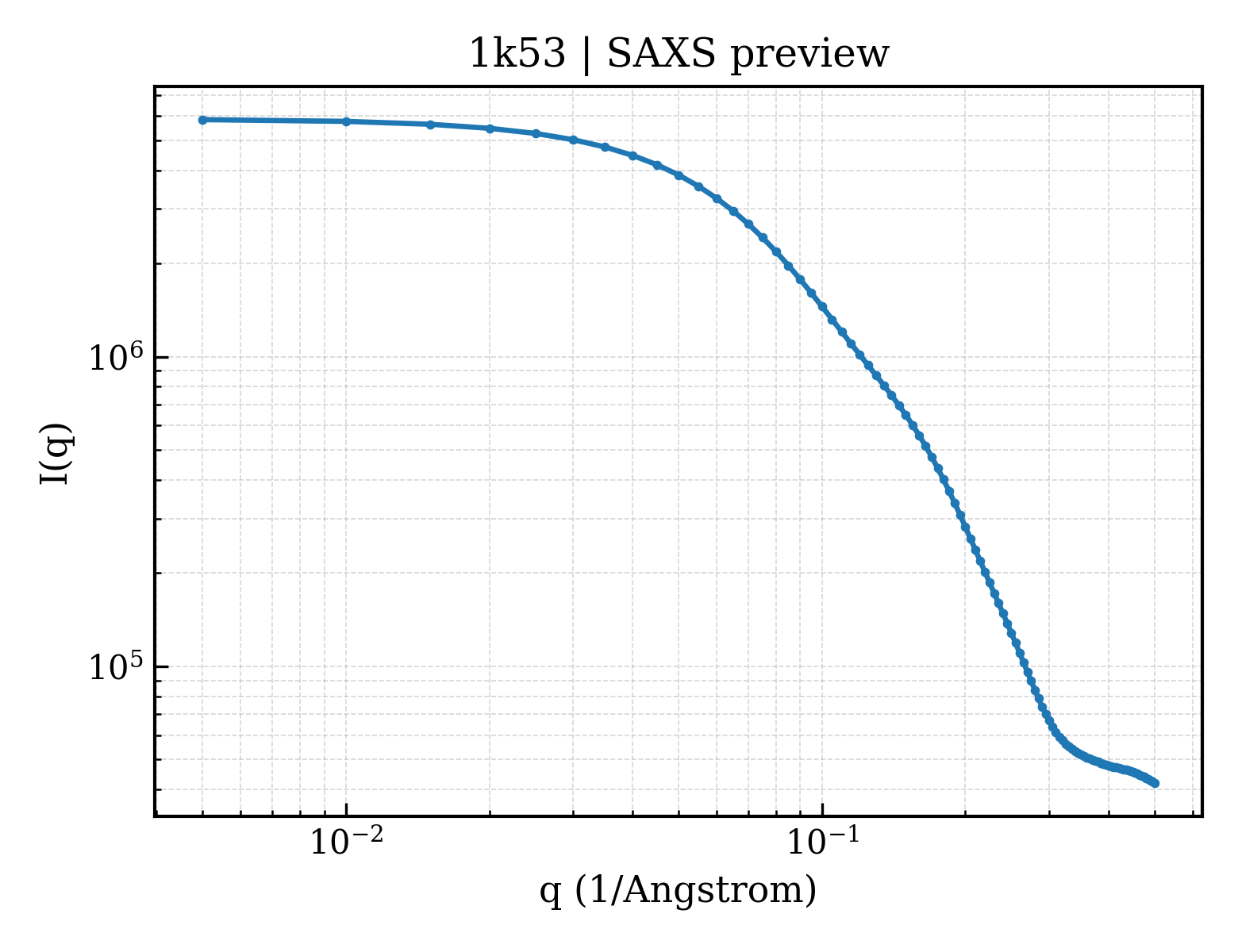

1k53__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

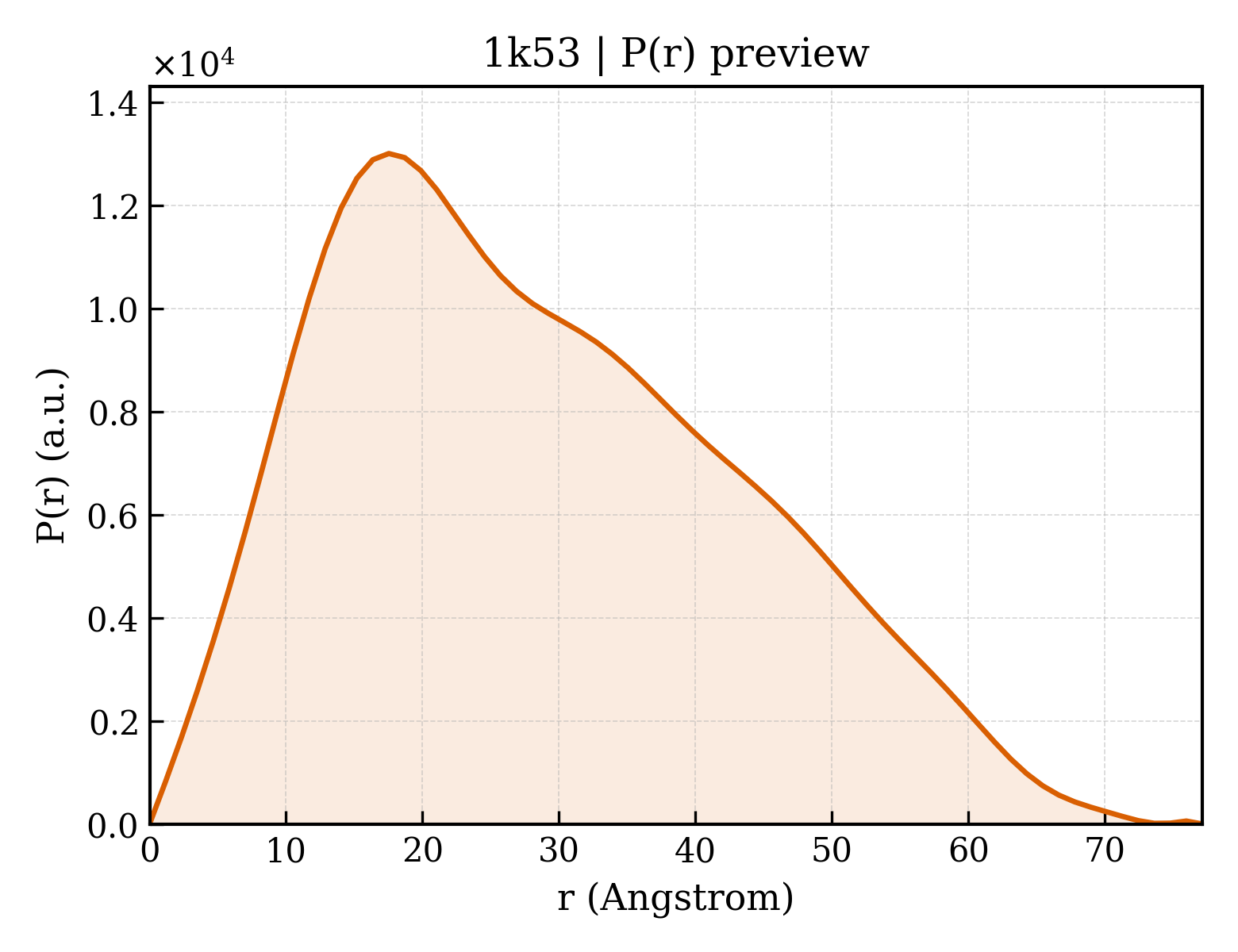

1k53__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	14.94 Å
Rg (electron density)	13.51 Å
Total Rg	15.20 Å
Atom count	575
Residues	72
Excluded volume	10172 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k53__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1k53__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Protein L
Molecular weight formula_weight	8066.9 kDa
Mutation mutation	G15A, Y47W
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	1282

MHHHHHHAMEEVTIKANLIFANASTQTAEFKGTFEKATSEAYAYADTLKKDNGEWTVDVADKGYTLNIKFAG

Source Source

Source organism organism	Finegoldia magna
NCBI taxonomy ID ncbi_taxonomy_id	334413
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	136

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1k53a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1k53a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d1k53b1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.7 — Immunoglobulin-binding domains
Family Family family	d.15.7.1 — Immunoglobulin-binding domains

Domain ID domain_id	d1k53b2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (2 domains)

Domain ID domain_id	1k53A00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1k53B00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	66.511 Å
Unit-cell length b length_b	66.511 Å
Unit-cell length c length_c	109.192 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	24.550 Å
R factor r_factor	0.2300
R_work r_work	0.2129
R_free r_free	0.2330
