SAXSdb — 1k75

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-histidinol dehydrogenase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	SULFATE ION × 4 GLYCEROL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HISX_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–434； UniProt 1–434 Author chain B； PDBConstruct 1–434； UniProt 1–434

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k75
Deposition date deposition_date	2001-10-18
Structure title title	The L-histidinol dehydrogenase (hisD) structure implicates domain swapping and gene duplication.
Keywords keywords	;L-histidinol dehydrogenase, homodimer, Rossmann fold, 4 domains, hisD, L-histidine biosynthesis, NAD cofactor, Montreal-Kingston Bacterial Structural Genomics Initiative, BSGI, Structural Genomics, OXIDOREDUCTASE ;; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k75__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

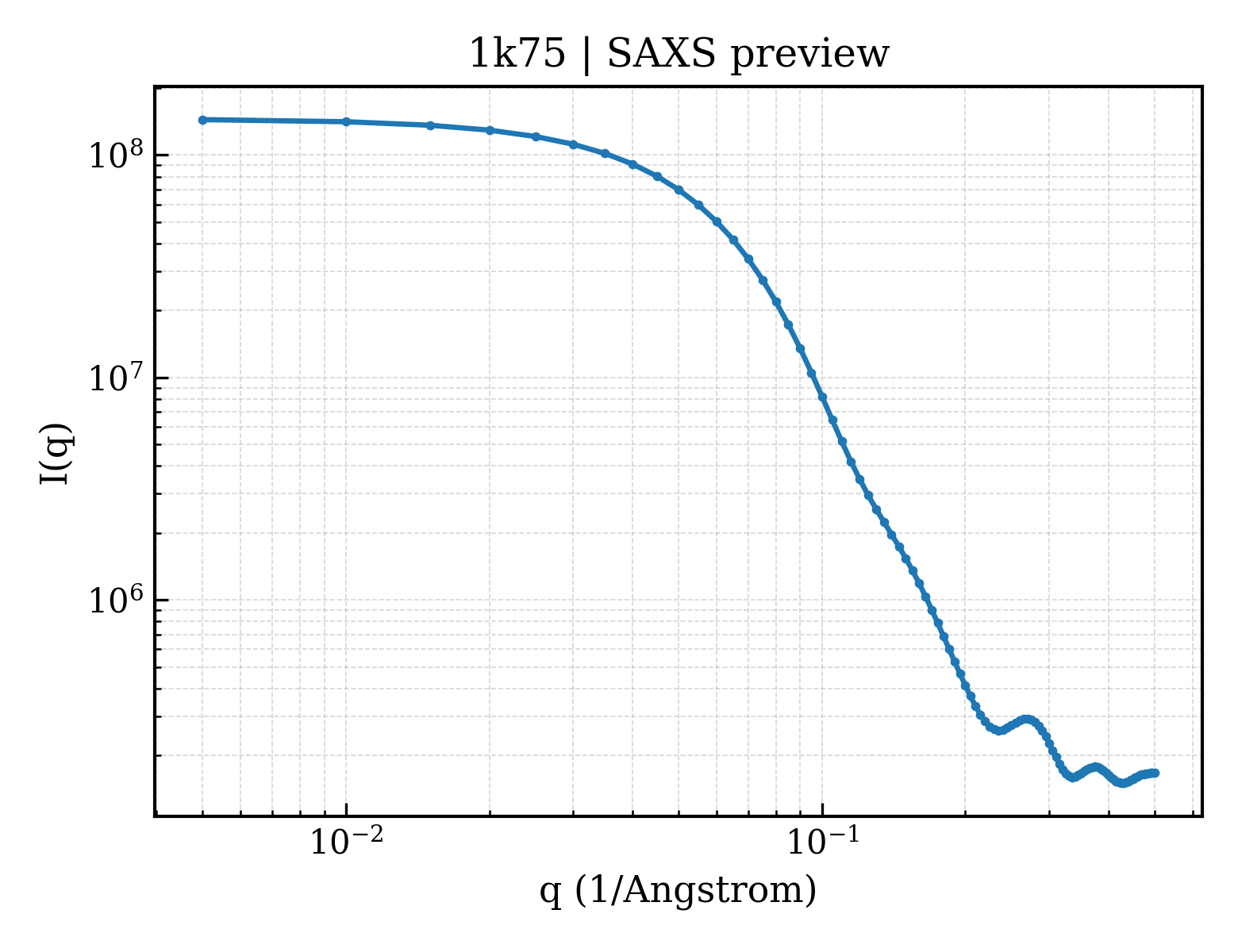

1k75__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1k75__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.53 Å
Rg (electron density)	28.54 Å
Total Rg	29.24 Å
Atom count	6446
Residues	850
Excluded volume	114610 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k75__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	L-histidinol dehydrogenase
Molecular weight formula_weight	46434.5 kDa
EC 编号 ec_number	1.1.1.23
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7382

MSFNTIIDWNSCTAEQQRQLLMRPAISASESITRTVNDILDNVKARGDEALREYSAKFDKTTVTALKVSAEEIAAASERLSDELKQAMAVAVKNIETFHTAQKLPPVDVETQPGVRCQQVTRPVASVGLYIPGGSAPLFSTVLMLATPASIAGCKKVVLCSPPPIADEILYAAQLCGVQDVFNVGGAQAIAALAFGTESVPKVDKIFGPGNAFVTEAKRQVSQRLDGAAIDMPAGPSEVLVIADSGATPDFVASDLLSQAEHGPDSQVILLTPAADMARRVAEAVERQLAELPRAETARQALNASRLIVTKDLAQCVEISNQYGPEHLIIQTRNARELVDSITSAGSVFLGDWSPESAGDYASGTNHVLPTYGYTATCSSLGLADFQKRMTVQELSKEGFSALASTIETLAAAERLTAHKNAVTLRVNALKEQA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	924

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1k75a_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.2 — L-histidinol dehydrogenase HisD

Domain ID domain_id	d1k75b_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.82 — ALDH-like
Superfamily Superfamily superfamily	c.82.1 — ALDH-like
Family Family family	c.82.1.2 — L-histidinol dehydrogenase HisD

CATH v4.4 (6 domains)

Domain ID domain_id	1k75A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1980 — Nitrogenase molybdenum iron protein domain

Domain ID domain_id	1k75A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1300 —

Domain ID domain_id	1k75A03
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1980 — Nitrogenase molybdenum iron protein domain

Domain ID domain_id	1k75B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1980 — Nitrogenase molybdenum iron protein domain

Domain ID domain_id	1k75B02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1980 — Nitrogenase molybdenum iron protein domain

Domain ID domain_id	1k75B03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	1300 —

▶

Unit-cell length a length_a	54.370 Å
Unit-cell length b length_b	107.520 Å
Unit-cell length c length_c	157.200 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	40.000 Å
R factor r_factor	—
R_work r_work	0.1900
R_free r_free	0.2250

The L-histidinol dehydrogenase (hisD) structure implicates domain swapping and gene duplication.
