1k82
Crystal structure of E.coli formamidopyrimidine-DNA glycosylase (Fpg) covalently trapped with DNA
SAXS 散射曲线 SAXS Profile

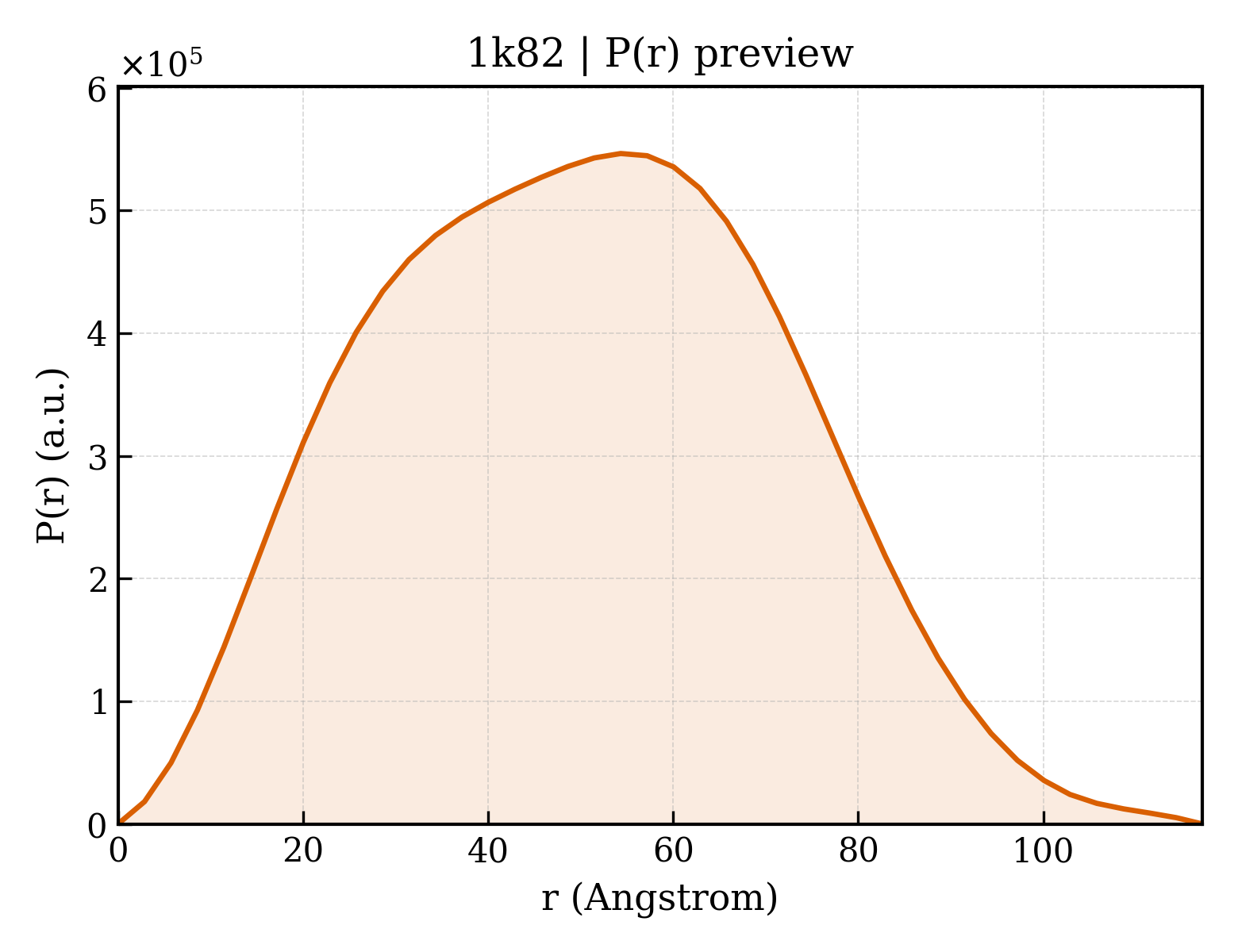

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1k82 |
| 沉积日期 deposition_date | 2001-10-22 |
| 结构标题 title | Crystal structure of E.coli formamidopyrimidine-DNA glycosylase (Fpg) covalently trapped with DNA |
| 关键词 keywords | PROTEIN-DNA COMPLEX, DNA REPAIR, BETA SANDWICH, ZINC FINGER, HELIX TWO-TURNS HELIX, HYDROLASE-DNA COMPLEX; HYDROLASE/DNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 38.77 Å |
| 回转半径 Rg (电子) rg_electron | 37.16 Å |
| 零角强度 I(0) i0 | 418324000.00 |
| 分子量 molecular_weight | 147100.0 kDa |
| 排除体积 excluded_volume | 176050 ų |
| 包络体积 envelope_volume | 240140 ų |
| 水化壳体积 shell_volume | 52998 ų |
| 包络直径 envelope_diameter | 124.0 Å |
| 壳层 Rg shell_rg | 44.53 Å |
| 包络 Rg envelope_rg | 35.99 Å |
| 形状 Rg shape_rg | 37.04 Å |
| 总 Rg total_rg | 37.89 Å |
| 总原子数 total_atoms | 10217 |
| 残基数 n_residues | 1140 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 117.2 Å |
| Rg (实空间) rg_real | 38.60 Å |
| Rg 误差 (实空间) rg_real_error | 0.62 Å |
| I(0) (实空间) i0_real | 4.1830e+08 |
| I(0) 误差 (实空间) i0_real_error | 5.7060e+06 |
| Rg (倒空间) rg_reciprocal | 38.71 Å |
| I(0) (倒空间) i0_reciprocal | 418400000.0000 |
| 解质量估计 total_estimate | 0.8954 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 54.3 Å |
| 偏度 Skewness skewness | 0.118 |
| 峰度 Kurtosis kurtosis | -0.602 |
| 角度范围 angular_range | — – 0.2050 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 49990000.0000 |
| 实空间数据点数 n_real_points | 42 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.972; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.721 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 20 domains
SCOP 2.08 (12 domains)
| 结构域编号 domain_id | d1k82a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.156 — S13-like H2TH domain |
| 超家族 Superfamily superfamily | a.156.1 — S13-like H2TH domain |
| 家族 Family family | a.156.1.2 — Middle domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82a2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.113 — N-terminal domain of MutM-like DNA repair proteins |
| 超家族 Superfamily superfamily | b.113.1 — N-terminal domain of MutM-like DNA repair proteins |
| 家族 Family family | b.113.1.1 — N-terminal domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82a3 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.39 — Glucocorticoid receptor-like (DNA-binding domain) |
| 超家族 Superfamily superfamily | g.39.1 — Glucocorticoid receptor-like (DNA-binding domain) |
| 家族 Family family | g.39.1.8 — C-terminal, Zn-finger domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82b1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.156 — S13-like H2TH domain |
| 超家族 Superfamily superfamily | a.156.1 — S13-like H2TH domain |
| 家族 Family family | a.156.1.2 — Middle domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82b2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.113 — N-terminal domain of MutM-like DNA repair proteins |
| 超家族 Superfamily superfamily | b.113.1 — N-terminal domain of MutM-like DNA repair proteins |
| 家族 Family family | b.113.1.1 — N-terminal domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82b3 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.39 — Glucocorticoid receptor-like (DNA-binding domain) |
| 超家族 Superfamily superfamily | g.39.1 — Glucocorticoid receptor-like (DNA-binding domain) |
| 家族 Family family | g.39.1.8 — C-terminal, Zn-finger domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82c1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.156 — S13-like H2TH domain |
| 超家族 Superfamily superfamily | a.156.1 — S13-like H2TH domain |
| 家族 Family family | a.156.1.2 — Middle domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82c2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.113 — N-terminal domain of MutM-like DNA repair proteins |
| 超家族 Superfamily superfamily | b.113.1 — N-terminal domain of MutM-like DNA repair proteins |
| 家族 Family family | b.113.1.1 — N-terminal domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82c3 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.39 — Glucocorticoid receptor-like (DNA-binding domain) |
| 超家族 Superfamily superfamily | g.39.1 — Glucocorticoid receptor-like (DNA-binding domain) |
| 家族 Family family | g.39.1.8 — C-terminal, Zn-finger domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82d1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.156 — S13-like H2TH domain |
| 超家族 Superfamily superfamily | a.156.1 — S13-like H2TH domain |
| 家族 Family family | a.156.1.2 — Middle domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82d2 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.113 — N-terminal domain of MutM-like DNA repair proteins |
| 超家族 Superfamily superfamily | b.113.1 — N-terminal domain of MutM-like DNA repair proteins |
| 家族 Family family | b.113.1.1 — N-terminal domain of MutM-like DNA repair proteins |
| 结构域编号 domain_id | d1k82d3 |
| 类 Class class | g — Small proteins |
| 折叠类型 Fold fold | g.39 — Glucocorticoid receptor-like (DNA-binding domain) |
| 超家族 Superfamily superfamily | g.39.1 — Glucocorticoid receptor-like (DNA-binding domain) |
| 家族 Family family | g.39.1.8 — C-terminal, Zn-finger domain of MutM-like DNA repair proteins |
CATH v4.4 (8 domains)
| 结构域编号 domain_id | 1k82A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 190 — N-terminal domain of MutM-like DNA repair proteins |
| 同源超家族 H-superfamily homologous superfamily | 10 — MutM-like, N-terminal |
| 结构域编号 domain_id | 1k82A02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1k82B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 190 — N-terminal domain of MutM-like DNA repair proteins |
| 同源超家族 H-superfamily homologous superfamily | 10 — MutM-like, N-terminal |
| 结构域编号 domain_id | 1k82B02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1k82C01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 190 — N-terminal domain of MutM-like DNA repair proteins |
| 同源超家族 H-superfamily homologous superfamily | 10 — MutM-like, N-terminal |
| 结构域编号 domain_id | 1k82C02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
| 结构域编号 domain_id | 1k82D01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 20 — Alpha-Beta Barrel |
| 拓扑 Topology topology | 190 — N-terminal domain of MutM-like DNA repair proteins |
| 同源超家族 H-superfamily homologous superfamily | 10 — MutM-like, N-terminal |
| 结构域编号 domain_id | 1k82D02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 8 — Helicase, Ruva Protein; domain 3 |
| 同源超家族 H-superfamily homologous superfamily | 50 — |
