1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1k8c
沉积日期 deposition_date	2001-10-23
结构标题 title	Crystal structure of dimeric xylose reductase in complex with NADP(H)
关键词 keywords	beta-alpha barrel, aldo-keto reductase, NADP(H), OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	41.68 Å
回转半径 Rg (电子) rg_electron	41.38 Å
零角强度 I(0) i0	294282000.00
分子量 molecular_weight	145620.0 kDa
排除体积 excluded_volume	184260 Å³
包络体积 envelope_volume	229740 Å³
水化壳体积 shell_volume	48171 Å³
包络直径 envelope_diameter	141.5 Å
壳层 Rg shell_rg	44.10 Å
包络 Rg envelope_rg	41.15 Å
形状 Rg shape_rg	41.36 Å
总 Rg total_rg	41.61 Å
总原子数 total_atoms	10303
残基数 n_residues	1274
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	139.2 Å
Rg (实空间) rg_real	41.92 Å
Rg 误差 (实空间) rg_real_error	1.19 Å
I(0) (实空间) i0_real	2.9430e+08
I(0) 误差 (实空间) i0_real_error	5.3110e+06
Rg (倒空间) rg_reciprocal	41.68 Å
I(0) (倒空间) i0_reciprocal	294200000.0000
解质量估计 total_estimate	0.8337
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	40.3 Å
偏度 Skewness skewness	0.451
峰度 Kurtosis kurtosis	-0.441
角度范围 angular_range	— – 0.1900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42130000.0000
实空间数据点数 n_real_points	39
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.863; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.913; Smooth: 0.333

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	xylose reductase
分子量 formula_weight	36062.2 kDa
EC 编号 ec_number	1.1.1.21
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	11037

MSASIPDIKLSSGHLMPSIGFGCWKLANATAGEQVYQAIKAGYRLFDGAEDYGNEKEVGDGVKRAIDEGLVKREEIFLTSKLWNNYHDPKNVETALNKTLADLKVDYVDLFLIHFPIAFKFVPIEEKYPPGFYCGDGNNFVYEDVPILETWKALEKLVAAGKIKSIGVSNFPGALLLDLLRGATIKPAVLQVEHHPYLQQPKLIEFAQKAGVTITAYSSFGPQSFVEMNQGRALNTPTLFAHDTIKAIAAKYNKTPAEVLLRWAAQRGIAVIPKSNLPERLVQNRSFNTFDLTKEDFEEIAKLDIGLRFNDPWDWDNIPIFV

来源 Source

来源生物 organism	Candida tenuis
NCBI 分类编号 ncbi_taxonomy_id	45596
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
分子量 formula_weight	743.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	734

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1k8ca_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
家族 Family family	c.1.7.1 — Aldo-keto reductases (NADP)

结构域编号 domain_id	d1k8cb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
家族 Family family	c.1.7.1 — Aldo-keto reductases (NADP)

结构域编号 domain_id	d1k8cc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
家族 Family family	c.1.7.1 — Aldo-keto reductases (NADP)

结构域编号 domain_id	d1k8cd_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.1 — TIM beta/alpha-barrel
超家族 Superfamily superfamily	c.1.7 — NAD(P)-linked oxidoreductase
家族 Family family	c.1.7.1 — Aldo-keto reductases (NADP)

CATH v4.4 (4 domains)

结构域编号 domain_id	1k8cA00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

结构域编号 domain_id	1k8cB00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

结构域编号 domain_id	1k8cC00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

结构域编号 domain_id	1k8cD00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	20 — TIM Barrel
同源超家族 H-superfamily homologous superfamily	100 — NADP-dependent oxidoreductase domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	182.202 Å
晶胞边长 b length_b	127.809 Å
晶胞边长 c length_c	80.251 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.37 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.100 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2130
R_free r_free	0.2430

fit	/app/data/saxs_computation/k8/1k8c/1k8c.fit
pddf	/app/data/pr_computation/k8/1k8c/1k8c.pr.out
profile	/app/data/saxs_computation/k8/1k8c/1k8c.dat

Crystal structure of dimeric xylose reductase in complex with NADP(H)

SAXS 散射曲线 SAXS Profile

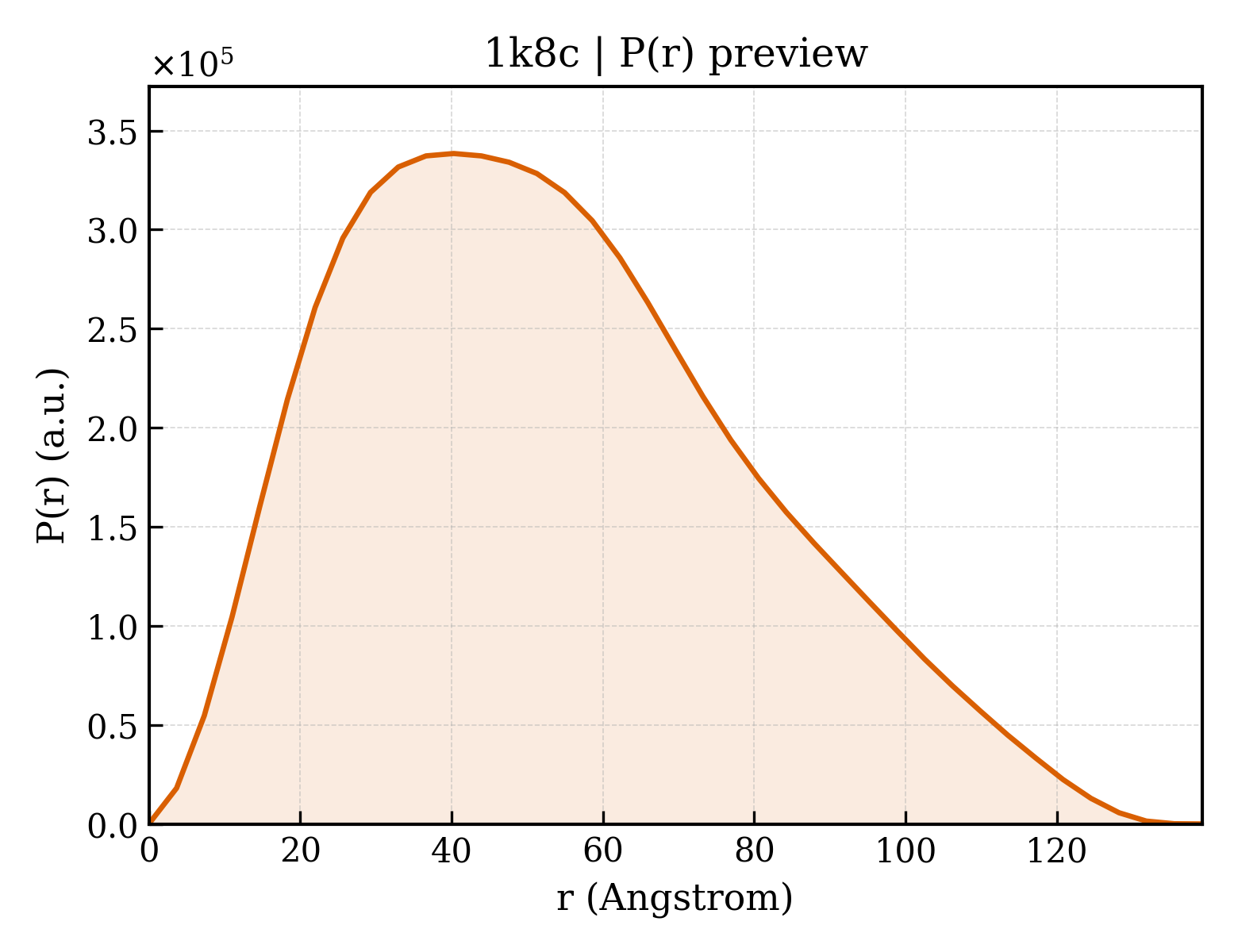

P(r) 距离分布 P(r) Distribution
