SAXSdb — 1k8f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADENYLYL CYCLASE-ASSOCIATED PROTEIN

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 2	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CAP1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–157； UniProt 319–475 Author chain B； PDBConstruct 1–157； UniProt 319–475 Author chain C； PDBConstruct 1–157； UniProt 319–475 Author chain D； PDBConstruct 1–157； UniProt 319–475

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k8f
Deposition date deposition_date	2001-10-24
Structure title title	CRYSTAL STRUCTURE OF THE HUMAN C-TERMINAL CAP1-ADENYLYL CYCLASE ASSOCIATED PROTEIN
Keywords keywords	;CAP, CAP1, ADENYLYL CYCLASE ASSOCIATED PROTEIN, ACTIN BINDING, Structural Genomics, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, UNKNOWN FUNCTION ;; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k8f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1k8f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

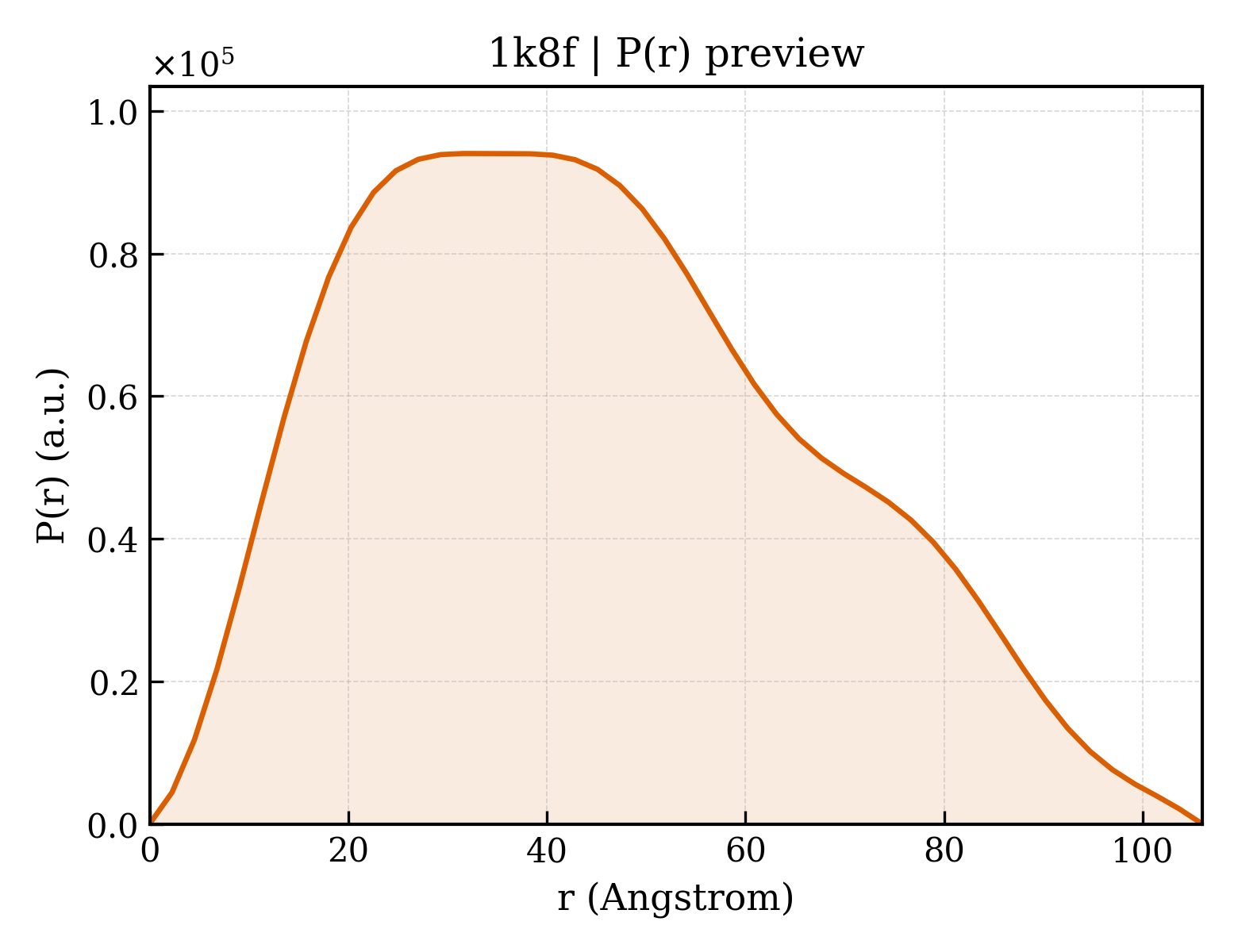

1k8f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.99 Å
Rg (electron density)	23.41 Å
Total Rg	24.11 Å
Atom count	2432
Residues	314
Excluded volume	43862 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k8f__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1k8f__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1k8fa_
Class class	b — All beta proteins
Fold Fold fold	b.80 — Single-stranded right-handed beta-helix
Superfamily Superfamily superfamily	b.80.5 — C-terminal domain of adenylylcyclase associated protein
Family Family family	b.80.5.1 — C-terminal domain of adenylylcyclase associated protein

Domain ID domain_id	d1k8fb_
Class class	b — All beta proteins
Fold Fold fold	b.80 — Single-stranded right-handed beta-helix
Superfamily Superfamily superfamily	b.80.5 — C-terminal domain of adenylylcyclase associated protein
Family Family family	b.80.5.1 — C-terminal domain of adenylylcyclase associated protein

Domain ID domain_id	d1k8fc_
Class class	b — All beta proteins
Fold Fold fold	b.80 — Single-stranded right-handed beta-helix
Superfamily Superfamily superfamily	b.80.5 — C-terminal domain of adenylylcyclase associated protein
Family Family family	b.80.5.1 — C-terminal domain of adenylylcyclase associated protein

Domain ID domain_id	d1k8fd_
Class class	b — All beta proteins
Fold Fold fold	b.80 — Single-stranded right-handed beta-helix
Superfamily Superfamily superfamily	b.80.5 — C-terminal domain of adenylylcyclase associated protein
Family Family family	b.80.5.1 — C-terminal domain of adenylylcyclase associated protein

CATH v4.4 (4 domains)

Domain ID domain_id	1k8fA00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1k8fB00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1k8fC00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	1k8fD00
Class class	2 — Mainly Beta
Architecture architecture	160 — 3 Solenoid
Topology topology	20 — Pectate Lyase C-like
Homologous superfamily homologous superfamily	70 —

▶

Unit-cell length a length_a	82.640 Å
Unit-cell length b length_b	83.120 Å
Unit-cell length c length_c	99.960 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.2320
R_work r_work	0.2320
R_free r_free	0.2680

Description description	ADENYLYL CYCLASE-ASSOCIATED PROTEIN
Molecular weight formula_weight	17361.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	4864

CRYSTAL STRUCTURE OF THE HUMAN C-TERMINAL CAP1-ADENYLYL CYCLASE ASSOCIATED PROTEIN

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADENYLYL CYCLASE-ASSOCIATED PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1k8f__assembly_1__model_1

1k8f__assembly_1__model_1 | I(q)

1k8f__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)
