SAXSdb — 1k97

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ARGININOSUCCINATE SYNTHASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	ASPARTIC ACID × 4 CITRULLINE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ASSY_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–446； UniProt 1–446

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1k97
Deposition date deposition_date	2001-10-26
Structure title title	Crystal Structure of E. coli Argininosuccinate Synthetase in complex with Aspartate and Citrulline
Keywords keywords	N-TYPE ATP PYROPHOSPHATASE, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1k97__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1k97__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

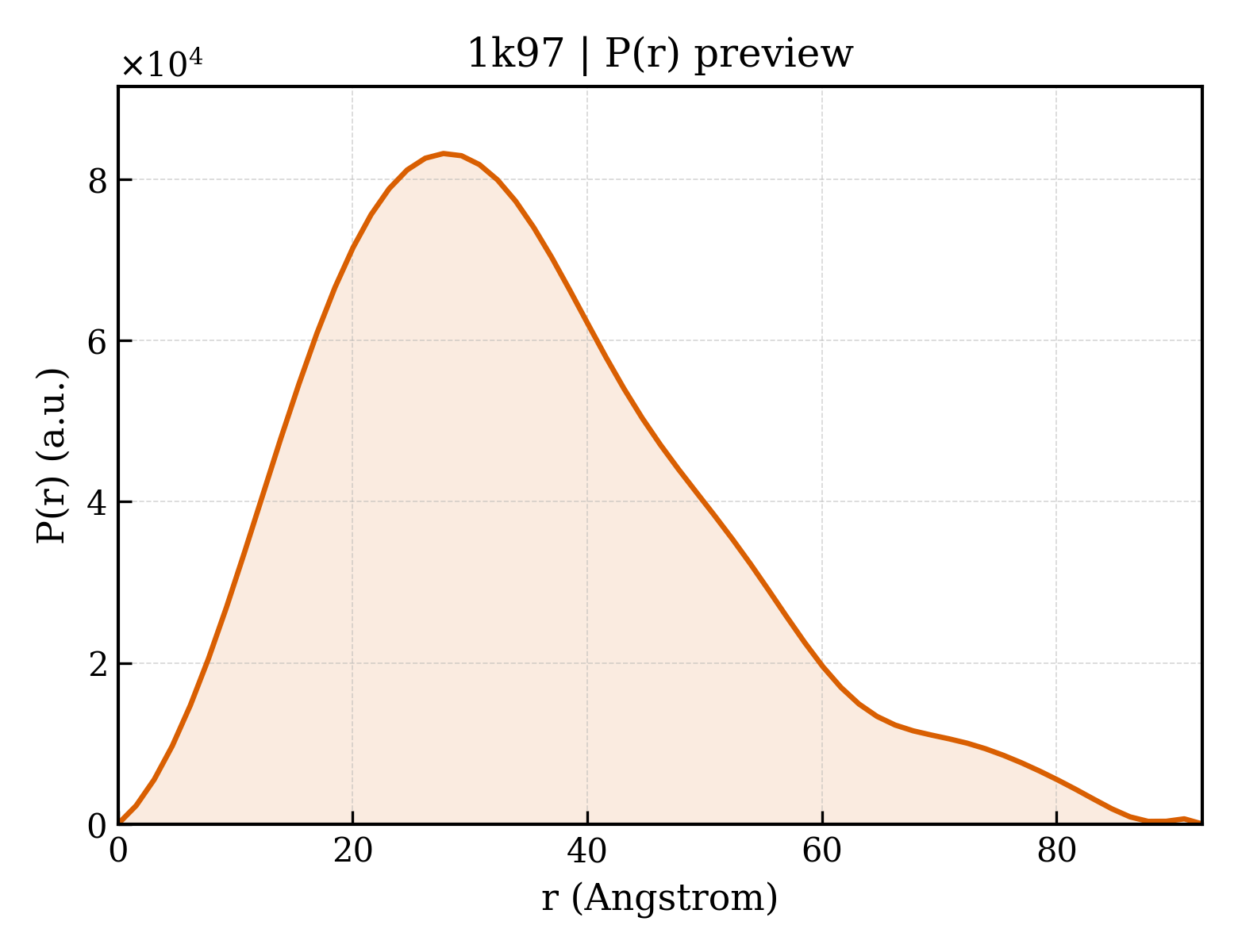

1k97__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.50 Å
Rg (electron density)	34.80 Å
Total Rg	35.36 Å
Atom count	13520
Residues	1728
Excluded volume	238510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1k97__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	ARGININOSUCCINATE SYNTHASE
Molecular weight formula_weight	50967.3 kDa
EC 编号 ec_number	6.3.4.5
Mutation mutation	C-term tag SVEHHHHHH
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3711

TTILKHLPVGQRIGIAFSGGLDTSAALLWMRQKGAVPYAYTANLGQPDEEDYDAIPRRAMEYGAENARLIDCRKQLVAEGIAAIQCGAFHNTTGGLTYFNTTPLGRAVTGTMLVAAMKEDGVNIWGDGSTYKGNDIERFYRYGLLTNAELQIYKPWLDTDFIDELGGRHEMSEFMIACGFDYKMSVEKAYSTDSNMLGATHEAKDLEYLNSSVKIVNPIMGVKFWDESVKIPAEEVTVRFEQGHPVALNGKTFSDDVEMMLEANRIGGRHGLGMSDQIENRIIEAKSRGIYEAPGMALLHIAYERLLTGIHNEDTIEQYHAHGRQLGRLLYQGRWFDSQALMLRDSLQRWVASQITGEVTLELRRGNDYSILNTVSENLTYKPERLTMEKGDSVFSPDDRIGQLTMRNLDITDTREKLFGYAKTGLLSSSAASGVPQVENLENKGQSVEHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ASPARTIC ACID
Molecular weight formula_weight	133.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CITRULLINE
Molecular weight formula_weight	175.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	331

▼

6. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1k97a1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.2 — Adenine nucleotide alpha hydrolases-like
Family Family family	c.26.2.1 — N-type ATP pyrophosphatases

Domain ID domain_id	d1k97a2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.210 — Argininosuccinate synthetase, C-terminal domain
Superfamily Superfamily superfamily	d.210.1 — Argininosuccinate synthetase, C-terminal domain
Family Family family	d.210.1.1 — Argininosuccinate synthetase, C-terminal domain

CATH v4.4 (3 domains)

Domain ID domain_id	1k97A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1k97A02
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1260 — Argininosuccinate synthetase, chain A, domain 2
Homologous superfamily homologous superfamily	10 — Argininosuccinate synthetase, chain A, domain 2

Domain ID domain_id	1k97A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	400 —

▶

Unit-cell length a length_a	77.996 Å
Unit-cell length b length_b	105.336 Å
Unit-cell length c length_c	127.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	20.440 Å
R factor r_factor	0.1760
R_work r_work	0.1760
R_free r_free	0.2140
