Thermotoga maritima
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | ACETIC ACID × 1 water × 1 | Consistent with protein count |
| UniProt name | HIS5_THEMA |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain F； PDBConstruct 1–201； UniProt 1–201 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1k9v |
| Deposition date deposition_date | 2001-10-31 |
| Structure title title | Structural evidence for ammonia tunelling across the (beta-alpha)8-barrel of the imidazole glycerol phosphate synthase bienzyme complex |
| Keywords keywords | glutaminase, imidazole glycerol phosphate synthase, (beta-alpha)8-barrel, ammonia tunnel, TRANSFERASE; TRANSFERASE |
| Experimental Method method | X-RAY DIFFRACTION |

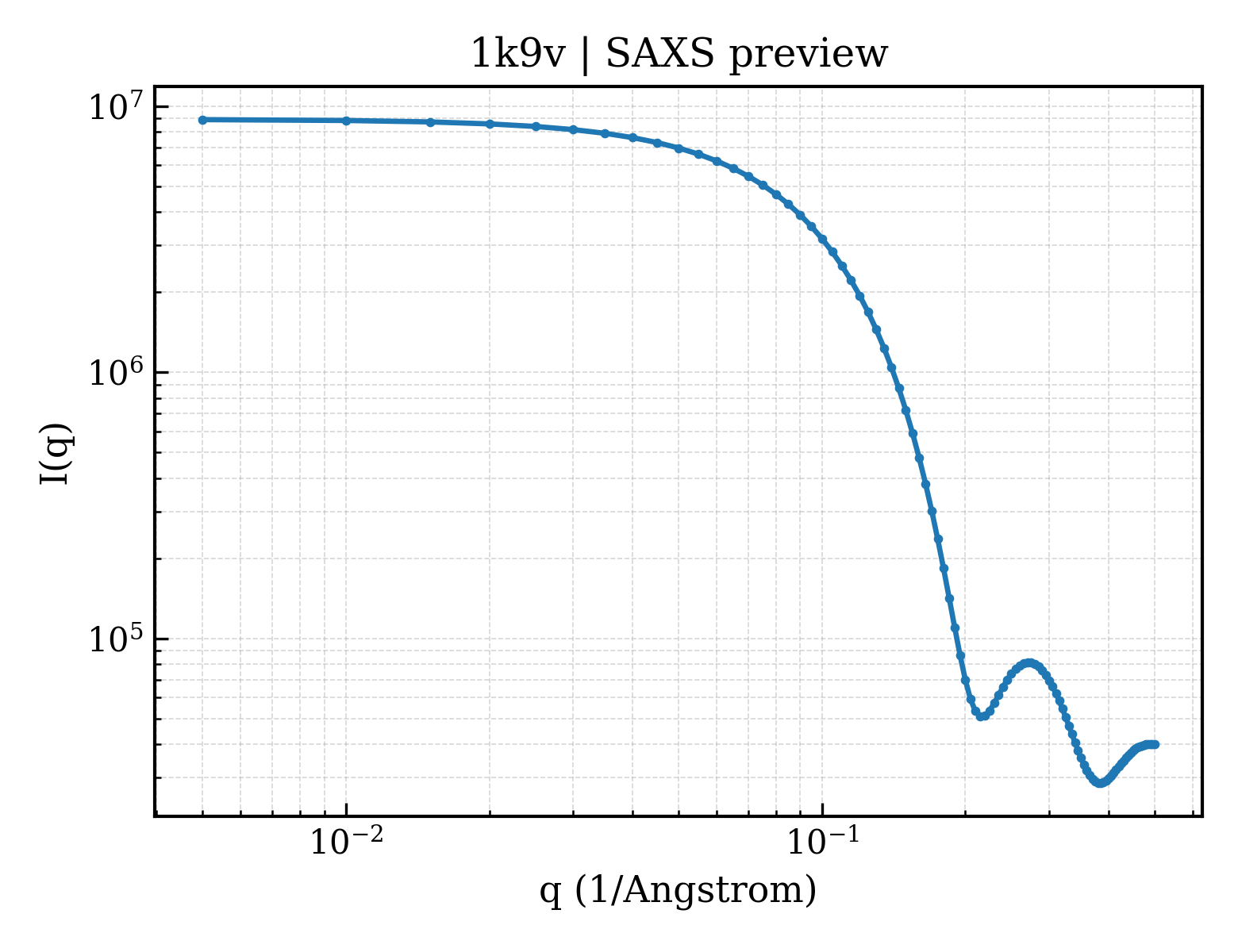

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.27 Å |
| Rg (electron density) | 15.77 Å |
| Total Rg | 16.89 Å |
| Atom count | 1578 |
| Residues | 200 |
| Excluded volume | 28170 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1k9vf_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.23 — Flavodoxin-like |
| Superfamily Superfamily superfamily | c.23.16 — Class I glutamine amidotransferase-like |
| Family Family family | c.23.16.1 — Class I glutamine amidotransferases (GAT) |
| Domain ID domain_id | 1k9vF00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 880 — Class I glutamine amidotransferase (GATase) domain |
