Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | ZINC ION × 2 | Consistent with protein count |
| UniProt name | KSR1_MOUSE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–49； UniProt 331–378 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1kbe |
| Deposition date deposition_date | 2001-11-06 |
| Structure title title | Solution structure of the cysteine-rich C1 domain of Kinase Suppressor of Ras |
| Keywords keywords | Kinase Suppressor of Ras, KSR, Cysteine-rich domain, Zinc-binding protein, SIGNALING PROTEIN; SIGNALING PROTEIN |
| Experimental Method method | SOLUTION NMR |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

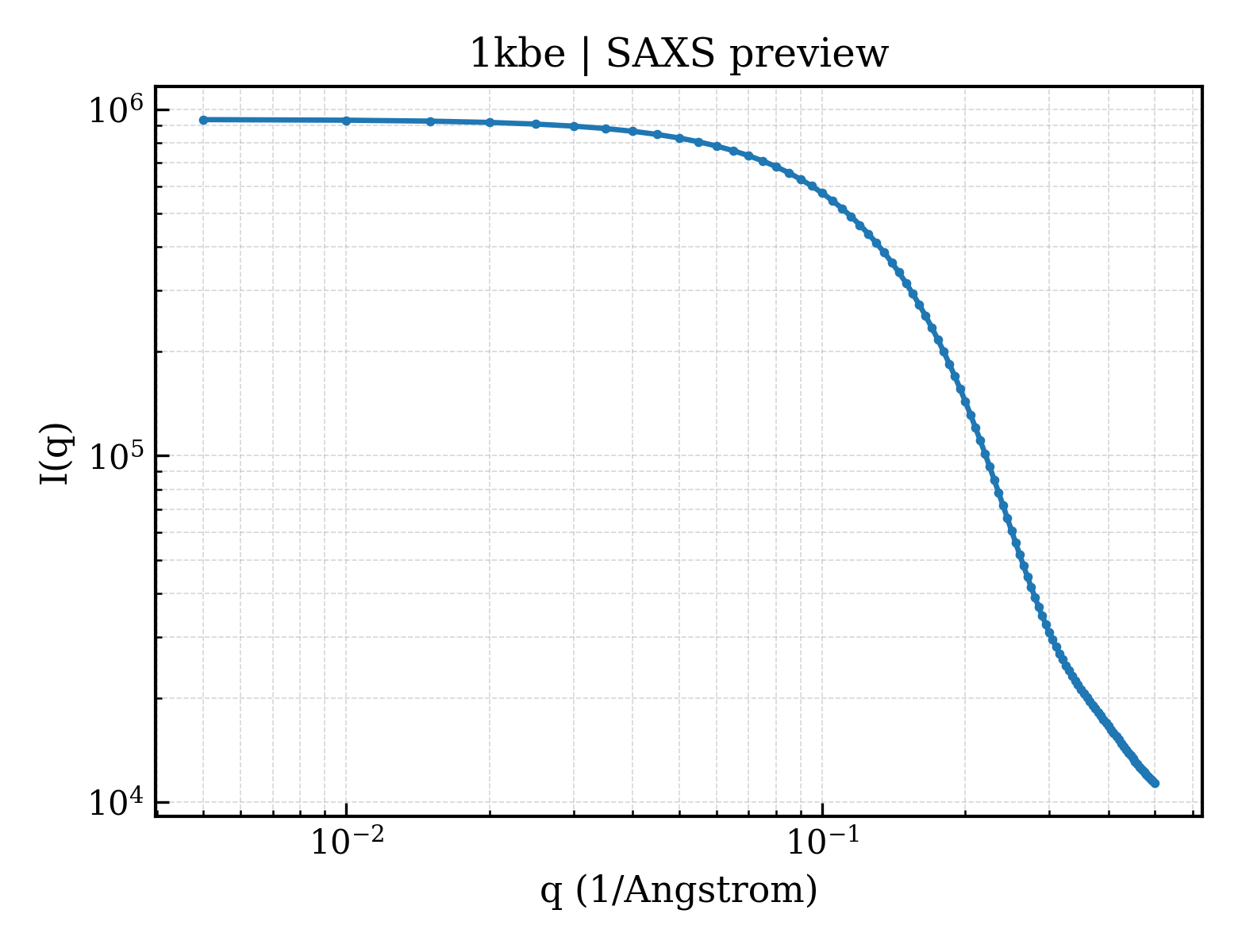

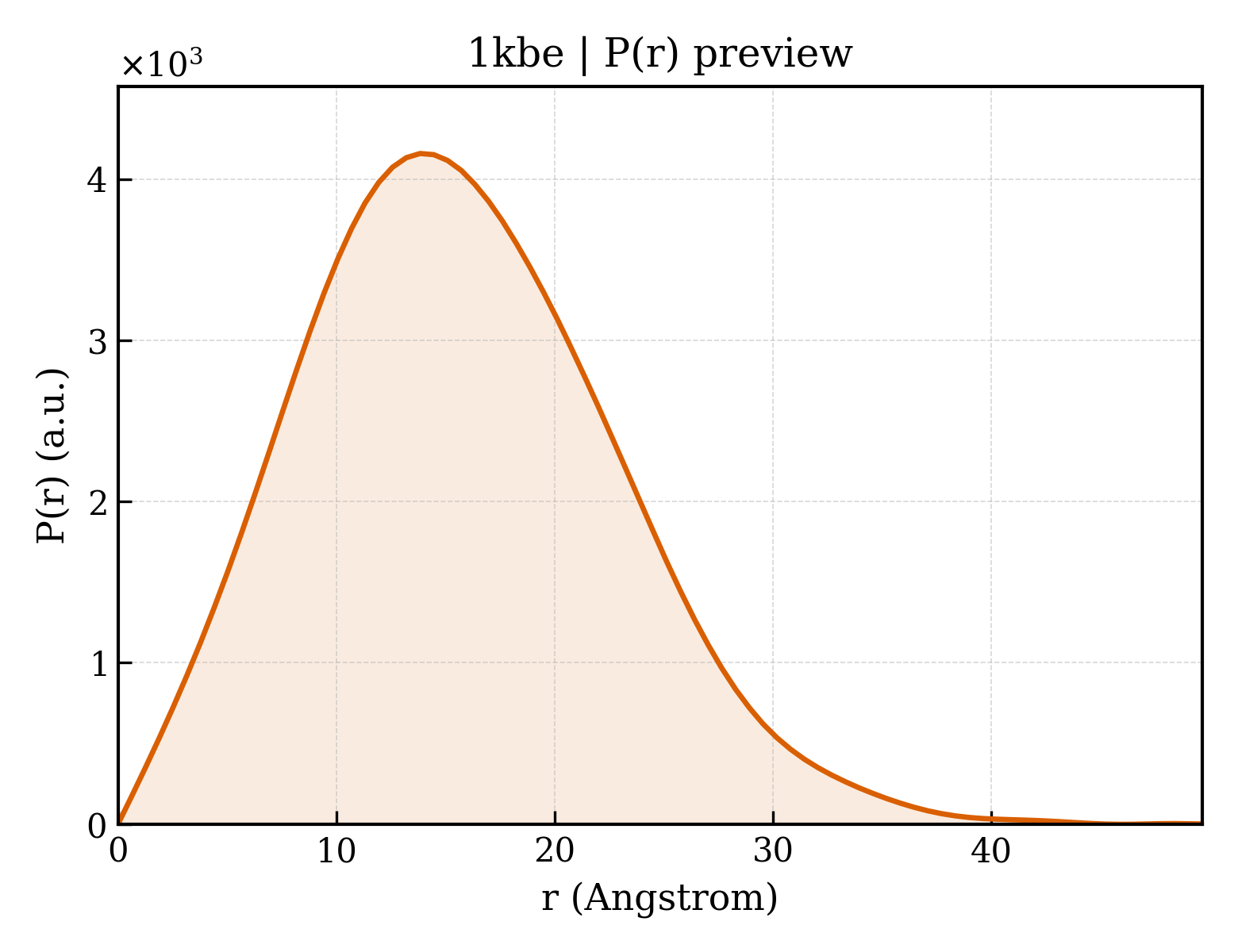

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 12.12 Å |
| Rg (electron density) | 11.18 Å |
| Total Rg | 12.42 Å |
| Atom count | 778 |
| Residues | 49 |
| Excluded volume | 6923 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1kbea1 |
| Class class | g — Small proteins |
| Fold Fold fold | g.49 — Cysteine-rich domain |
| Superfamily Superfamily superfamily | g.49.1 — Cysteine-rich domain |
| Family Family family | g.49.1.1 — Protein kinase cysteine-rich domain (cys2, phorbol-binding domain) |
| Domain ID domain_id | d1kbea2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1kbeA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 60 — Wheat Germ Agglutinin (Isolectin 2); domain 1 |
| Homologous superfamily homologous superfamily | 20 — |
