OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | CTX4_NAJAT |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–60； UniProt 22–81 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1kbs |
| Deposition date deposition_date | 1996-07-22 |
| Structure title title | SOLUTION STRUCTURE OF CARDIOTOXIN IV, NMR, 1 STRUCTURE |
| Keywords keywords | VENOM, CYTOTOXIN, CARDIOTOXIN, MULTIGENE FAMILY; CYTOTOXIN |
| Experimental Method method | SOLUTION NMR |

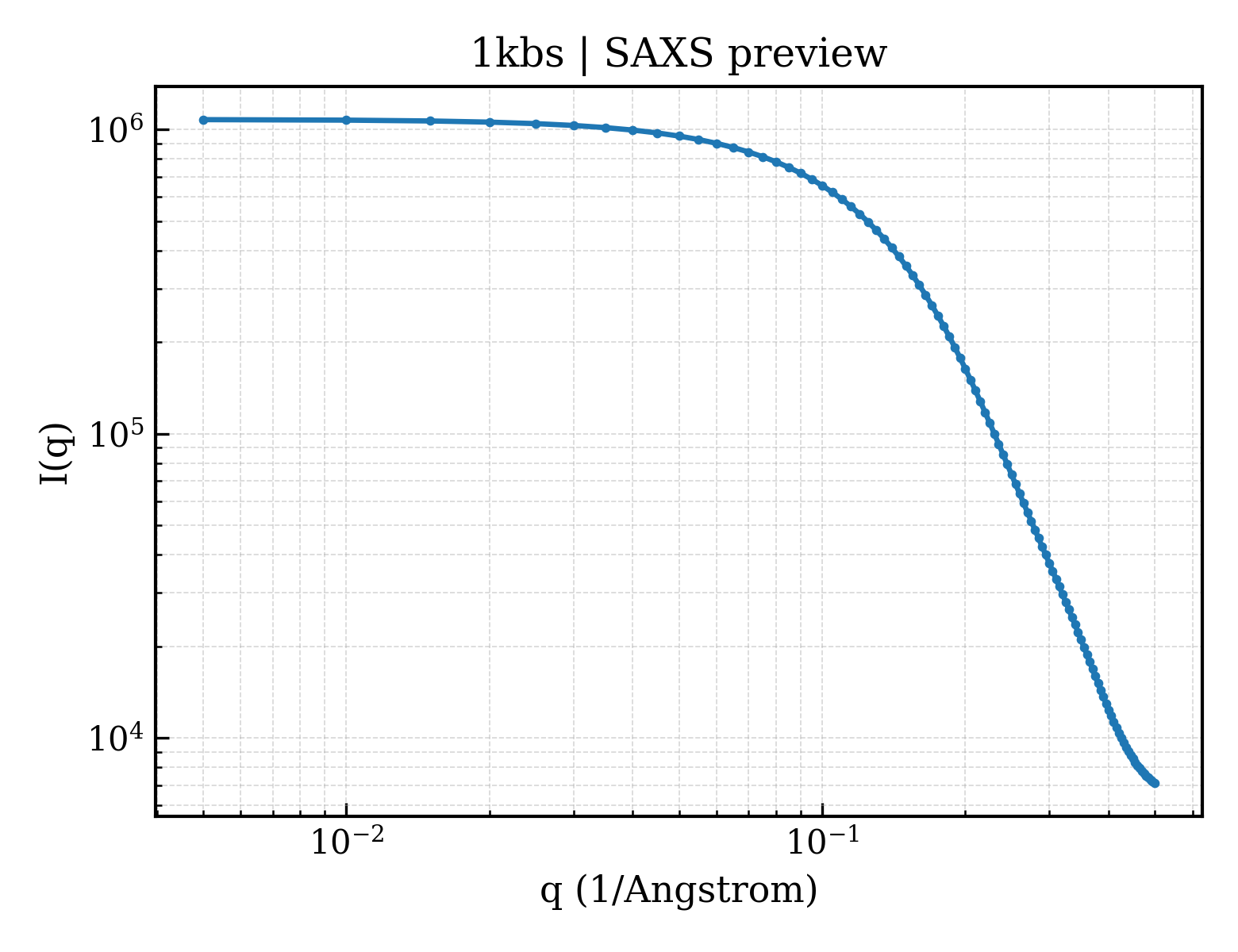

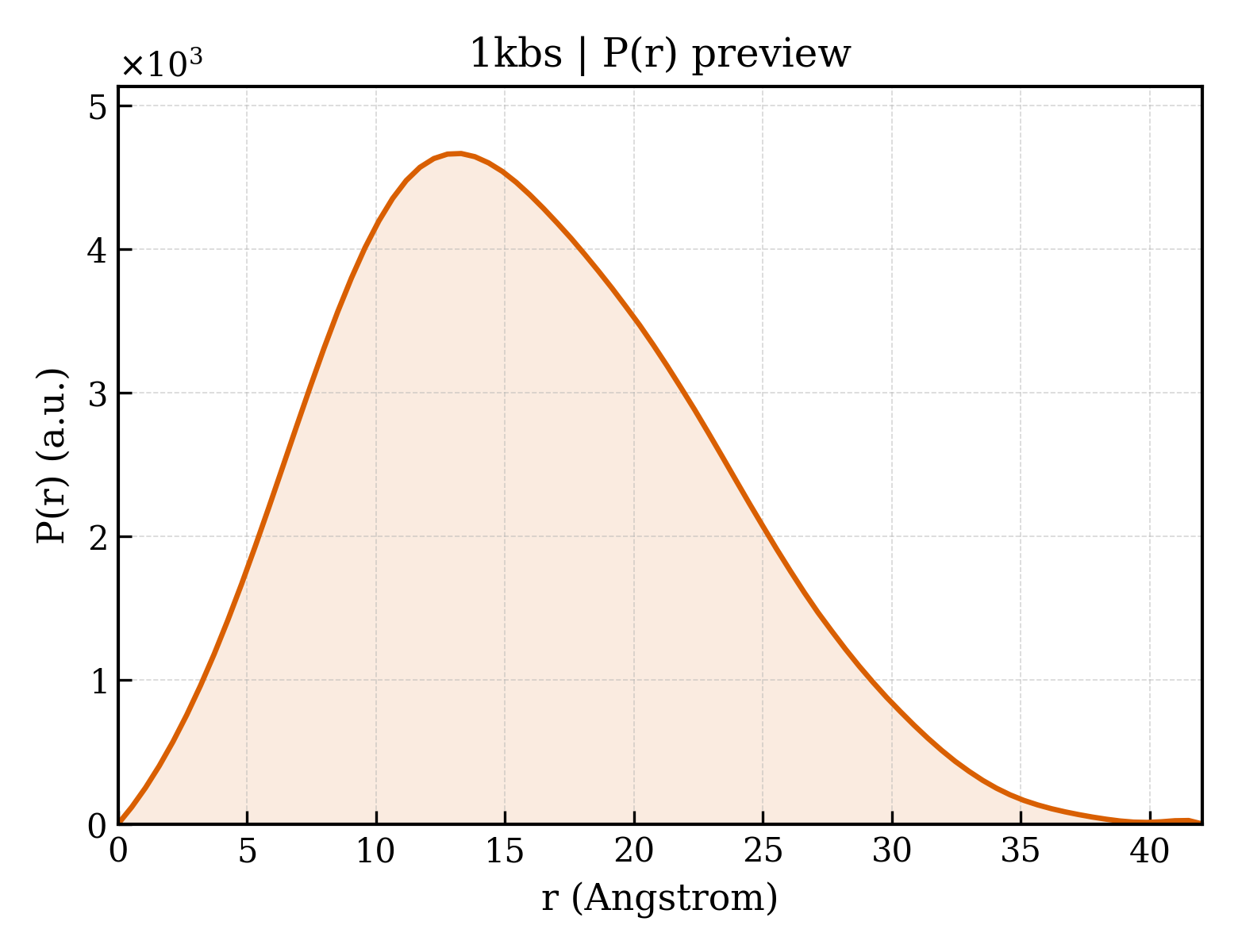

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 12.26 Å |
| Rg (electron density) | 11.38 Å |
| Total Rg | 12.80 Å |
| Atom count | 956 |
| Residues | 60 |
| Excluded volume | 8547 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1kbsa_ |
| Class class | g — Small proteins |
| Fold Fold fold | g.7 — Snake toxin-like |
| Superfamily Superfamily superfamily | g.7.1 — Snake toxin-like |
| Family Family family | g.7.1.1 — Snake venom toxins |
| Domain ID domain_id | 1kbsA00 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 10 — Ribbon |
| Topology topology | 60 — CD59 |
| Homologous superfamily homologous superfamily | 10 — CD59 |
