SAXSdb — 1kl7

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kl7
沉积日期 deposition_date	2001-12-11
结构标题 title	Crystal Structure of Threonine Synthase from Yeast
关键词 keywords	threonine synthesis, pyridoxal 5-phosphate, beta-family, monomer, LYASE; LYASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	36.59 Å
回转半径 Rg (电子) rg_electron	36.01 Å
零角强度 I(0) i0	190490000.00
分子量 molecular_weight	113260.0 kDa
排除体积 excluded_volume	142020 Å³
包络体积 envelope_volume	177950 Å³
水化壳体积 shell_volume	40557 Å³
包络直径 envelope_diameter	113.8 Å
壳层 Rg shell_rg	42.90 Å
包络 Rg envelope_rg	35.67 Å
形状 Rg shape_rg	36.00 Å
总 Rg total_rg	36.49 Å
总原子数 total_atoms	7960
残基数 n_residues	1006
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	115.2 Å
Rg (实空间) rg_real	36.66 Å
Rg 误差 (实空间) rg_real_error	0.74 Å
I(0) (实空间) i0_real	1.9050e+08
I(0) 误差 (实空间) i0_real_error	2.8460e+06
Rg (倒空间) rg_reciprocal	36.62 Å
I(0) (倒空间) i0_reciprocal	190500000.0000
解质量估计 total_estimate	0.8069
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	32.1 Å
偏度 Skewness skewness	0.269
峰度 Kurtosis kurtosis	-0.838
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	42000000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.856; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.917; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Threonine Synthase
分子量 formula_weight	57867.2 kDa
EC 编号 ec_number	4.2.99.2
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	8294

MPNASQVYRSTRSSSPKTISFEEAIIQGLATDGGLFIPPTIPQVDQATLFNDWSKLSFQDLAFAIMRLYIAQEEIPDADLKDLIKRSYSTFRSDEVTPLVQNVTGDKENLHILELFHGPTYAFKDVALQFVGNLFEYFLQRTNANLPEGEKKQITVVGATSGDTGSAAIYGLRGKKDVSVFILYPTGRISPIQEEQMTTVPDENVQTLSVTGTFDNCQDIVKAIFGDKEFNSKHNVGAVNSINWARILAQMTYYFYSFFQATNGKDSKKVKFVVPSGNFGDILAGYFAKKMGLPIEKLAIATNENDILDRFLKSGLYERSDKVAATLSPAMDILISSNFERLLWYLAREYLANGDDLKAGEIVNNWFQELKTNGKFQVDKSIIEGASKDFTSERVSNEETSETIKKIYESSVNPKHYILDPHTAVGVCATERLIAKDNDKSIQYISLSTAHPAKFADAVNNALSGFSNYSFEKDVLPEELKKLSTLKKKLKFIERADVELVKNAIEEELAKMKL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	PYRIDOXAL-5'-PHOSPHATE
分子量 formula_weight	247.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	334

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (2 domains)

结构域编号 domain_id	d1kl7a_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

结构域编号 domain_id	d1kl7b_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.79 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
超家族 Superfamily superfamily	c.79.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes
家族 Family family	c.79.1.1 — Tryptophan synthase beta subunit-like PLP-dependent enzymes

CATH v4.4 (6 domains)

结构域编号 domain_id	1kl7A01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1380 — threonine synthase, domain 1, chain A
同源超家族 H-superfamily homologous superfamily	10 — Threonine synthase, N-terminal domain

结构域编号 domain_id	1kl7A02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1kl7A03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1kl7B01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1380 — threonine synthase, domain 1, chain A
同源超家族 H-superfamily homologous superfamily	10 — Threonine synthase, N-terminal domain

结构域编号 domain_id	1kl7B02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

结构域编号 domain_id	1kl7B03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	1100 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	95.300 Å
晶胞边长 b length_b	51.600 Å
晶胞边长 c length_c	106.900 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	99.60 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.700 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	—
R_work r_work	0.2009
R_free r_free	0.2526

fit	/app/data/saxs_computation/kl/1kl7/1kl7.fit
pddf	/app/data/pr_computation/kl/1kl7/1kl7.pr.out
profile	/app/data/saxs_computation/kl/1kl7/1kl7.dat

Crystal Structure of Threonine Synthase from Yeast

SAXS 散射曲线 SAXS Profile

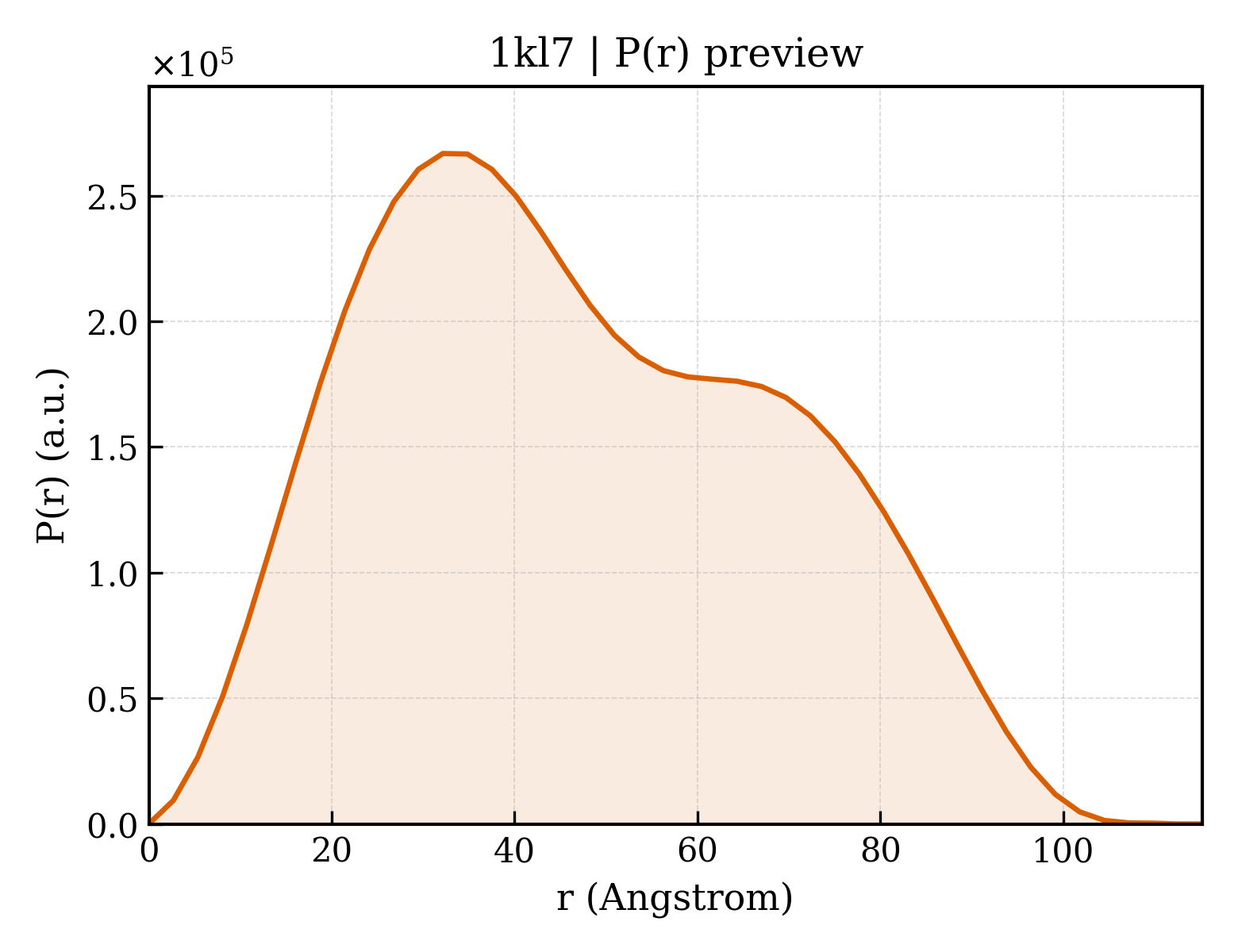

P(r) 距离分布 P(r) Distribution
