1knz

;Recognition of the rotavirus mRNA 3' consensus by an asymmetric NSP3 homodimer ;

Method: X-RAY DIFFRACTION D_max: 155.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

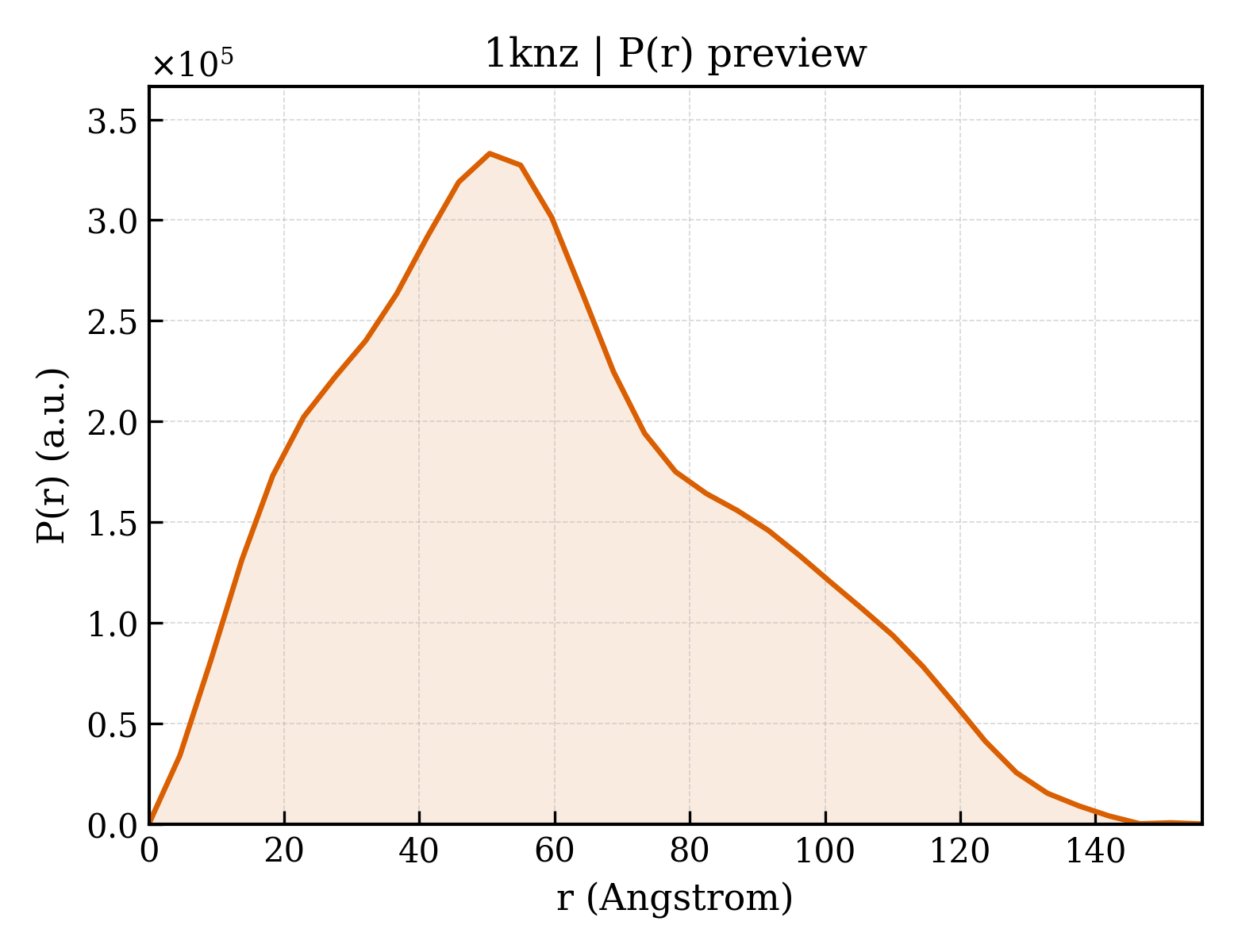

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1knz
沉积日期 deposition_date	2001-12-19
结构标题 title	;Recognition of the rotavirus mRNA 3' consensus by an asymmetric NSP3 homodimer ;
关键词 keywords	Protein-ssRNA complex, Viral protein-RNA COMPLEX; Viral protein/RNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.85 Å
回转半径 Rg (电子) rg_electron	46.54 Å
零角强度 I(0) i0	283920000.00
分子量 molecular_weight	128350.0 kDa
排除体积 excluded_volume	156880 Å³
包络体积 envelope_volume	241110 Å³
水化壳体积 shell_volume	47567 Å³
包络直径 envelope_diameter	158.1 Å
壳层 Rg shell_rg	45.43 Å
包络 Rg envelope_rg	44.80 Å
形状 Rg shape_rg	46.58 Å
总 Rg total_rg	46.35 Å
总原子数 total_atoms	8950
残基数 n_residues	1188
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	155.8 Å
Rg (实空间) rg_real	46.20 Å
Rg 误差 (实空间) rg_real_error	1.69 Å
I(0) (实空间) i0_real	2.8390e+08
I(0) 误差 (实空间) i0_real_error	5.0690e+06
Rg (倒空间) rg_reciprocal	45.86 Å
I(0) (倒空间) i0_reciprocal	283800000.0000
解质量估计 total_estimate	0.8358
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	50.4 Å
偏度 Skewness skewness	0.418
峰度 Kurtosis kurtosis	-0.479
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6049000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.755; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.943; Smooth: 0.655

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	5'-R(UPGPAPCP*C)-3'
分子量 formula_weight	1546.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	W,X,Y,Z
原子数 atom_count	9555

UGACC

Entity 2 polymer

描述 description	Nonstructural RNA-binding Protein 34
分子量 formula_weight	18380.0 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,I,J,M,N

LGSMESTQQMAVSIINSSFEAAVVAATSALENMGIEYDYQDIYSRVKNKFDFVMDDSGVKNNPIGKAITIDQALNNKFGSAIRNRNWLADTSRPAKLDEDVNKLRMMLSSKGIDQKMRVLNACFSVKRIPGKSSSIIKCTKLMRDKLERGEVEVDDSFVDEKME

来源 Source

来源生物 organism	Simian rotavirus A/SA11
NCBI 分类编号 ncbi_taxonomy_id	10923
宿主生物 host_organism	Escherichia coli

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	605

▼

6. 折叠分类 (SCOP + CATH) 28 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1knza_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzb1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzb2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1knzc_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzd1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzd2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1knzi_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzj1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzj2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1knzm_
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzn1
类 Class class	e — Multi-domain proteins (alpha and beta)
折叠类型 Fold fold	e.34 — NSP3 homodimer
超家族 Superfamily superfamily	e.34.1 — NSP3 homodimer
家族 Family family	e.34.1.1 — NSP3 homodimer

结构域编号 domain_id	d1knzn2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

CATH v4.4 (16 domains)

结构域编号 domain_id	1knzA01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzB01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzC01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzD01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzI01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzI02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzJ01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzJ02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzM01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzM02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

结构域编号 domain_id	1knzN01
类 Class class	6 — Special
架构 Architecture architecture	10 — Helix non-globular
拓扑 Topology topology	280 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
同源超家族 H-superfamily homologous superfamily	20 — Rotavirus non-structural protein NSP3, N-terminal domain

结构域编号 domain_id	1knzN02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	1610 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	40.275 Å
晶胞边长 b length_b	85.359 Å
晶胞边长 c length_c	96.051 Å
晶胞夹角 α angle_alpha	89.99 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.05 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.450 Å
最低分辨率 resolution_low	22.000 Å
R 因子 r_factor	—
R_work r_work	0.2280
R_free r_free	0.2800

fit	/app/data/saxs_computation/kn/1knz/1knz.fit
pddf	/app/data/pr_computation/kn/1knz/1knz.pr.out
profile	/app/data/saxs_computation/kn/1knz/1knz.dat
