1kq1

1.55 A Crystal structure of the pleiotropic translational regulator, Hfq

Method: X-RAY DIFFRACTION D_max: 78.9 Å Quality: EXCELLENT

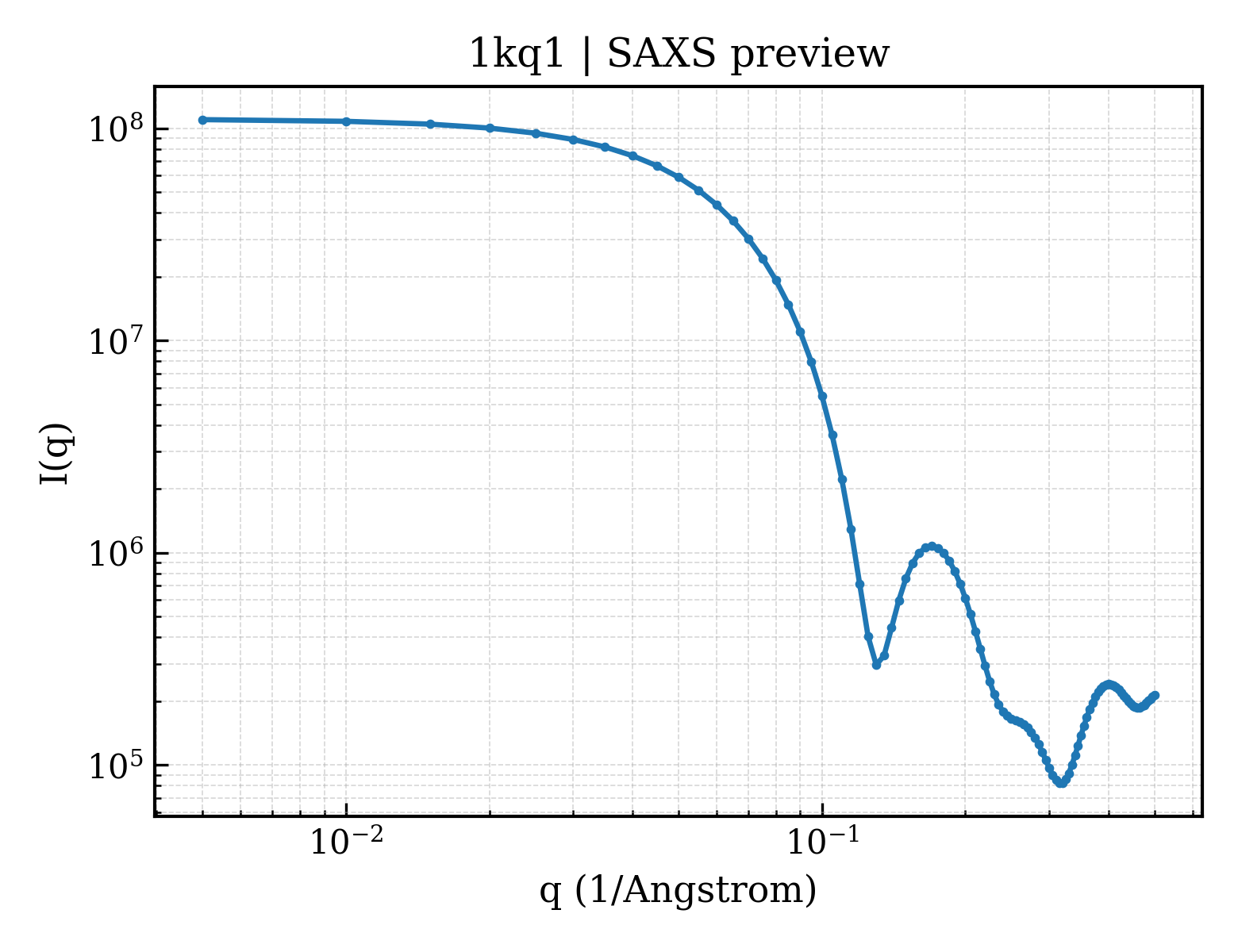

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kq1
沉积日期 deposition_date	2002-01-03
结构标题 title	1.55 A Crystal structure of the pleiotropic translational regulator, Hfq
关键词 keywords	Hfq, hexamer, RNA binding protein, translational regulator, Sm motif, TRANSLATION; TRANSLATION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.22 Å
回转半径 Rg (电子) rg_electron	25.62 Å
零角强度 I(0) i0	110511000.00
分子量 molecular_weight	85109.0 kDa
排除体积 excluded_volume	107560 Å³
包络体积 envelope_volume	129910 Å³
水化壳体积 shell_volume	39843 Å³
包络直径 envelope_diameter	83.4 Å
壳层 Rg shell_rg	34.78 Å
包络 Rg envelope_rg	25.55 Å
形状 Rg shape_rg	25.58 Å
总 Rg total_rg	26.74 Å
总原子数 total_atoms	6019
残基数 n_residues	734
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

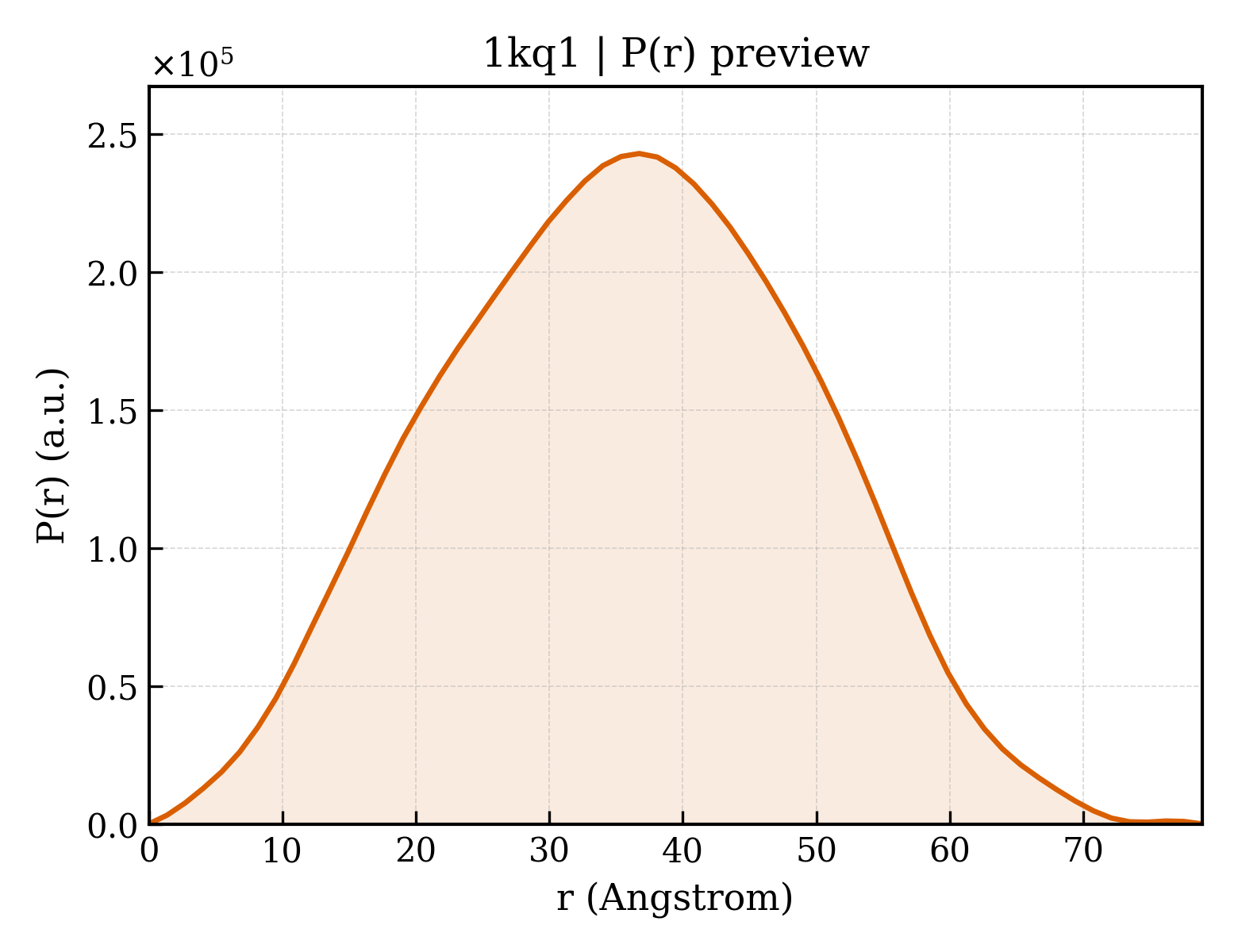

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.9 Å
Rg (实空间) rg_real	26.95 Å
Rg 误差 (实空间) rg_real_error	0.38 Å
I(0) (实空间) i0_real	1.1050e+08
I(0) 误差 (实空间) i0_real_error	1.3890e+06
Rg (倒空间) rg_reciprocal	27.04 Å
I(0) (倒空间) i0_reciprocal	110500000.0000
解质量估计 total_estimate	0.9060
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	36.7 Å
偏度 Skewness skewness	0.004
峰度 Kurtosis kurtosis	-0.534
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	53250000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.965; Smooth: 0.993

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Host Factor for Q beta
分子量 formula_weight	8786.7 kDa
来源方法 src_method	man
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,H,I,K,M,S,T,Y,N,R,W
原子数 atom_count	6611

MIANENIQDKALENFKANQTEVTVFFLNGFQMKGVIEEYDKYVVSLNSQGKQHLIYKHAISTYTVETEGQASTESEE

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	ACETIC ACID
分子量 formula_weight	60.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	592

▼

6. 折叠分类 (SCOP + CATH) 24 domains

SCOP 2.08 (12 domains)

结构域编号 domain_id	d1kq1a_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1b_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1h_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1i_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1k_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1m_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1n_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1r_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1s_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1t_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1w_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

结构域编号 domain_id	d1kq1y_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.38 — Sm-like fold
超家族 Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
家族 Family family	b.38.1.2 — Pleiotropic translational regulator Hfq

CATH v4.4 (12 domains)

结构域编号 domain_id	1kq1A00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1B00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1H00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1I00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1K00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1M00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1N00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1R00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1S00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1T00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1W00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

结构域编号 domain_id	1kq1Y00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	30 — Roll
拓扑 Topology topology	30 — SH3 type barrels.
同源超家族 H-superfamily homologous superfamily	100 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	67.030 Å
晶胞边长 b length_b	89.950 Å
晶胞边长 c length_c	67.770 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	97.95 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.550 Å
最低分辨率 resolution_low	22.370 Å
R 因子 r_factor	—
R_work r_work	0.2370
R_free r_free	0.2590

fit	/app/data/saxs_computation/kq/1kq1/1kq1.fit
pddf	/app/data/pr_computation/kq/1kq1/1kq1.pr.out
profile	/app/data/saxs_computation/kq/1kq1/1kq1.dat
