SAXSdb — 1kq4

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kq4
沉积日期 deposition_date	2002-01-03
结构标题 title	CRYSTAL STRUCTURE OF A THY1-COMPLEMENTING PROTEIN (TM0449) FROM THERMOTOGA MARITIMA AT 2.25 A RESOLUTION
关键词 keywords	;THY1-COMPLEMENTING PROTEIN, STRUCTURAL GENOMICS, JOINT CENTER FOR STRUCTURAL GENOMICS, JCSG, PROTEIN STRUCTURE INITIATIVE, PSI, TRANSFERASE ;; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	28.74 Å
回转半径 Rg (电子) rg_electron	28.37 Å
零角强度 I(0) i0	159876000.00
分子量 molecular_weight	102400.0 kDa
排除体积 excluded_volume	128400 Å³
包络体积 envelope_volume	150420 Å³
水化壳体积 shell_volume	42785 Å³
包络直径 envelope_diameter	102.1 Å
壳层 Rg shell_rg	36.65 Å
包络 Rg envelope_rg	28.79 Å
形状 Rg shape_rg	28.37 Å
总 Rg total_rg	29.05 Å
总原子数 total_atoms	7193
残基数 n_residues	822
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	96.3 Å
Rg (实空间) rg_real	28.72 Å
Rg 误差 (实空间) rg_real_error	0.59 Å
I(0) (实空间) i0_real	1.5990e+08
I(0) 误差 (实空间) i0_real_error	2.2620e+06
Rg (倒空间) rg_reciprocal	28.73 Å
I(0) (倒空间) i0_reciprocal	159900000.0000
解质量估计 total_estimate	0.8616
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	35.0 Å
偏度 Skewness skewness	0.437
峰度 Kurtosis kurtosis	0.048
角度范围 angular_range	— – 0.2750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	89900000.0000
实空间数据点数 n_real_points	56
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.759; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.923

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	HYPOTHETICAL PROTEIN TM0449
分子量 formula_weight	27785.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	7467

MGSDKIHHHHHHMKIDILDKGFVELVDVMGNDLSAVRAARVSFDMGLKDEERDRHLIEYLMKHGHETPFEHIVFTFHVKAPIFVARQWFRHRIASYNELSGRYSKLSYEFYIPSPERLEGYKTTIPPERVTEKISEIVDKAYRTYLELIESGVPREVARIVLPLNLYTRFFWTVNARSLMNFLNLRADSHAQWEIQQYALAIARIFKEKCPWTFEAFLKYAYKGDILKEVQV

来源 Source

来源生物 organism	Thermotoga maritima
NCBI 分类编号 ncbi_taxonomy_id	2336
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	FLAVIN-ADENINE DINUCLEOTIDE
分子量 formula_weight	785.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	274

▼

6. 折叠分类 (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1kq4a1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.207 — Thymidylate synthase-complementing protein Thy1
超家族 Superfamily superfamily	d.207.1 — Thymidylate synthase-complementing protein Thy1
家族 Family family	d.207.1.1 — Thymidylate synthase-complementing protein Thy1

结构域编号 domain_id	d1kq4a2
类 Class class	l — Artifacts
折叠类型 Fold fold	l.1 — Tags
超家族 Superfamily superfamily	l.1.1 — Tags
家族 Family family	l.1.1.1 — Tags

结构域编号 domain_id	d1kq4b_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.207 — Thymidylate synthase-complementing protein Thy1
超家族 Superfamily superfamily	d.207.1 — Thymidylate synthase-complementing protein Thy1
家族 Family family	d.207.1.1 — Thymidylate synthase-complementing protein Thy1

结构域编号 domain_id	d1kq4c_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.207 — Thymidylate synthase-complementing protein Thy1
超家族 Superfamily superfamily	d.207.1 — Thymidylate synthase-complementing protein Thy1
家族 Family family	d.207.1.1 — Thymidylate synthase-complementing protein Thy1

结构域编号 domain_id	d1kq4d_
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.207 — Thymidylate synthase-complementing protein Thy1
超家族 Superfamily superfamily	d.207.1 — Thymidylate synthase-complementing protein Thy1
家族 Family family	d.207.1.1 — Thymidylate synthase-complementing protein Thy1

CATH v4.4 (4 domains)

结构域编号 domain_id	1kq4A00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1kq4B00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1kq4C00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	170 —

结构域编号 domain_id	1kq4D00
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1360 — Gyrase A; domain 2
同源超家族 H-superfamily homologous superfamily	170 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	54.200 Å
晶胞边长 b length_b	116.610 Å
晶胞边长 c length_c	141.830 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.250 Å
最低分辨率 resolution_low	20.000 Å
R 因子 r_factor	0.1920
R_work r_work	0.1920
R_free r_free	0.2400

fit	/app/data/saxs_computation/kq/1kq4/1kq4.fit
pddf	/app/data/pr_computation/kq/1kq4/1kq4.pr.out
profile	/app/data/saxs_computation/kq/1kq4/1kq4.dat

CRYSTAL STRUCTURE OF A THY1-COMPLEMENTING PROTEIN (TM0449) FROM THERMOTOGA MARITIMA AT 2.25 A RESOLUTION

SAXS 散射曲线 SAXS Profile

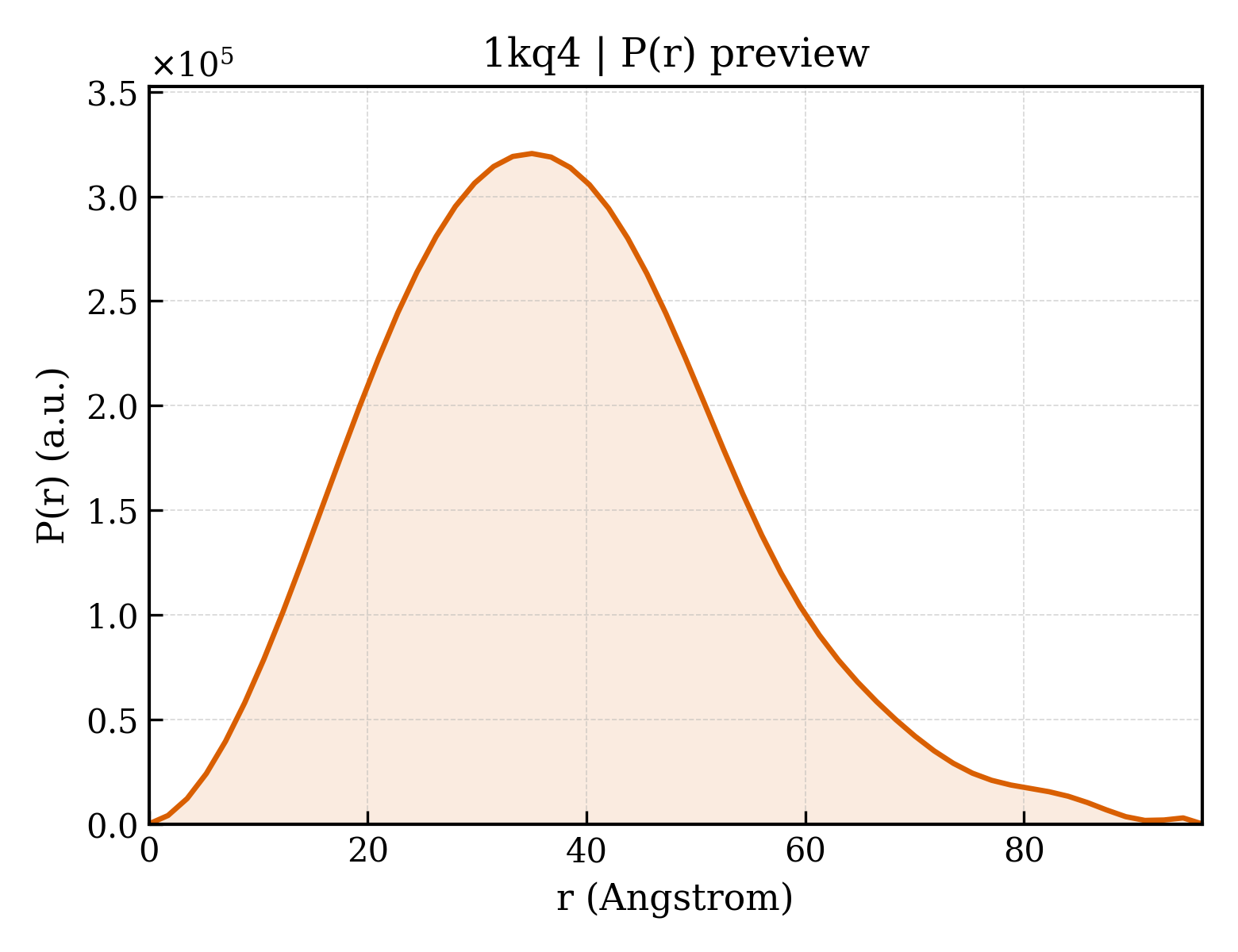

P(r) 距离分布 P(r) Distribution
