1kqg

FORMATE DEHYDROGENASE N FROM E. COLI

Method: X-RAY DIFFRACTION D_max: 151.2 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

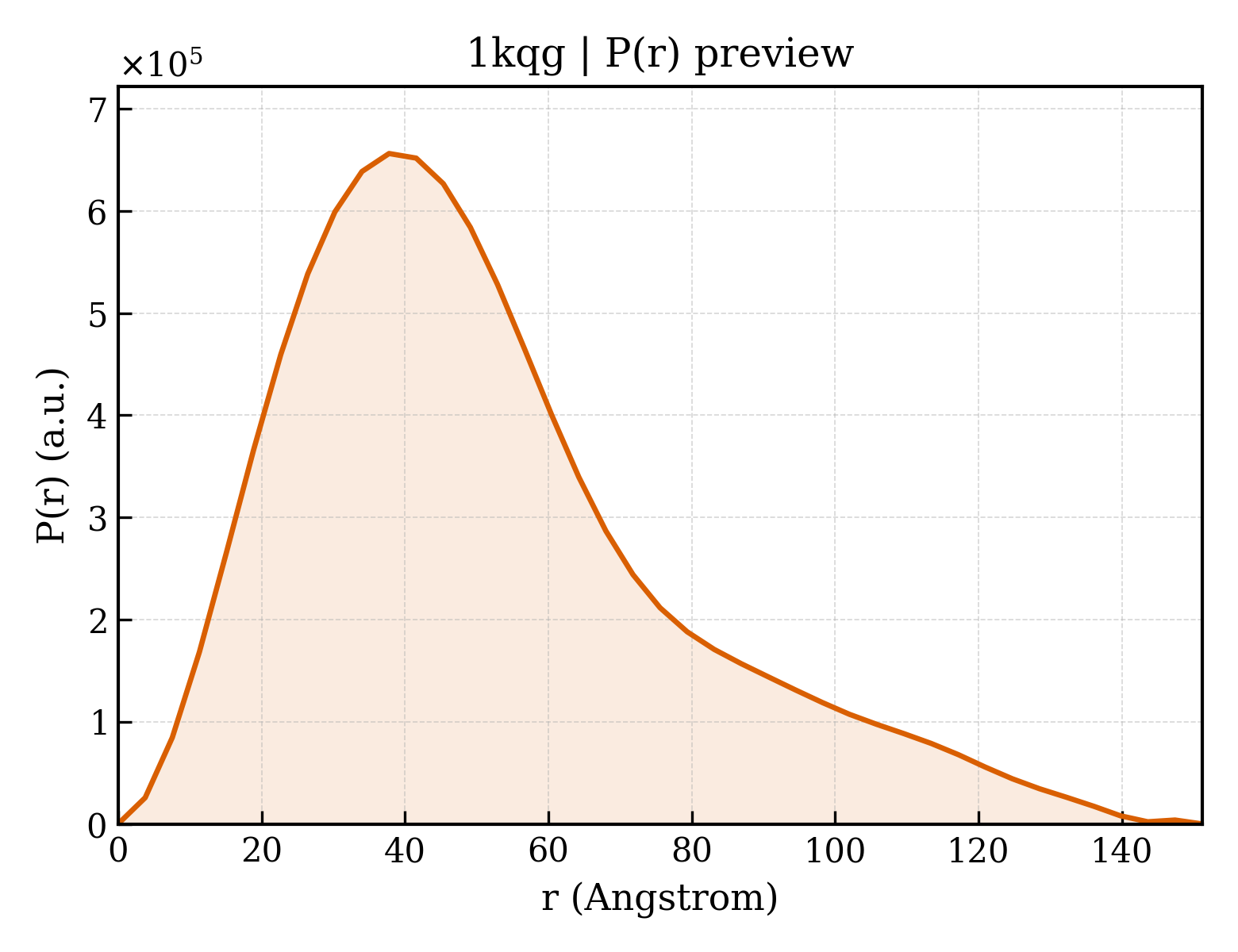

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1kqg
沉积日期 deposition_date	2002-01-05
结构标题 title	FORMATE DEHYDROGENASE N FROM E. COLI
关键词 keywords	;OXIDOREDUCTASE, SELENIUM, SELENOCYSTEINE, SECYS, MOLYBDENUM, MOLYBDOPTERIN, MPT, MOLYBDOPTERIN GUANINE DINUCLEOTIDE, MGD, IRON SULFUR CLUSTER, FE4S4, FORMATE, DEHYDROGENASE, ANAEROBIC, INTEGRAL MEMBRANE PROTEIN ;; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.65 Å
回转半径 Rg (电子) rg_electron	41.29 Å
零角强度 I(0) i0	459727000.00
分子量 molecular_weight	172240.0 kDa
排除体积 excluded_volume	213780 Å³
包络体积 envelope_volume	263170 Å³
水化壳体积 shell_volume	55807 Å³
包络直径 envelope_diameter	162.2 Å
壳层 Rg shell_rg	43.41 Å
包络 Rg envelope_rg	43.53 Å
形状 Rg shape_rg	41.41 Å
总 Rg total_rg	40.99 Å
总原子数 total_atoms	12019
残基数 n_residues	1487
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.2 Å
Rg (实空间) rg_real	40.59 Å
Rg 误差 (实空间) rg_real_error	1.84 Å
I(0) (实空间) i0_real	4.5970e+08
I(0) 误差 (实空间) i0_real_error	8.9960e+06
Rg (倒空间) rg_reciprocal	40.00 Å
I(0) (倒空间) i0_reciprocal	459400000.0000
解质量估计 total_estimate	0.7155
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	37.8 Å
偏度 Skewness skewness	0.887
峰度 Kurtosis kurtosis	0.437
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	104500000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.349; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.556; Smooth: 0.694

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	FORMATE DEHYDROGENASE, NITRATE-INDUCIBLE, MAJOR SUBUNIT
分子量 formula_weight	113088.2 kDa
EC 编号 ec_number	1.2.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	14003

MDVSRRQFFKICAGGMAGTTVAALGFAPKQALAQARNYKLLRAKEIRNTCTYCSVGCGLLMYSLGDGAKNAREAIYHIEGDPDHPVSRGALCPKGAGLLDYVNSENRLRYPEYRAPGSDKWQRISWEEAFSRIAKLMKADRDANFIEKNEQGVTVNRWLSTGMLCASGASNETGMLTQKFARSLGMLAVDNQARVUHGPTVASLAPTFGRGAMTNHWVDIKNANVVMVMGGNAAEAHPVGFRWAMEAKNNNDATLIVVDPRFTRTASVADIYAPIRSGTDITFLSGVLRYLIENNKINAEYVKHYTNASLLVRDDFAFEDGLFSGYDAEKRQYDKSSWNYQLDENGYAKRDETLTHPRCVWNLLKEHVSRYTPDVVENICGTPKADFLKVCEVLASTSAPDRTTTFLYALGWTQHTVGAQNIRTMAMIQLLLGNMGMAGGGVNALRGHSNIQGLTDLGLLSTSLPGYLTLPSEKQVDLQSYLEANTPKATLADQVNYWSNYPKFFVSLMKSFYGDAAQKENNWGYDWLPKWDQTYDVIKYFNMMDEGKVTGYFCQGFNPVASFPDKNKVVSCLSKLKYMVVIDPLVTETSTFWQNHGESNDVDPASIQTEVFRLPSTCFAEEDGSIANSGRWLQWHWKGQDAPGEARNDGEILAGIYHHLRELYQSEGGKGVEPLMKMSWNYKQPHEPQSDEVAKENNGYALEDLYDANGVLIAKKGQLLSSFAHLRDDGTTASSCWIYTGSWTEQGNQMANRDNSDPSGLGNTLGWAWAWPLNRRVLYNRASADINGKPWDPKRMLIQWNGSKWTGNDIPDFGNAAPGTPTGPFIMQPEGMGRLFAINKMAEGPFPEHYEPIETPLGTNPLHPNVVSNPVVRLYEQDALRMGKKEQFPYVGTTYRLTEHFHTWTKHALLNAIAQPEQFVEISETLAAAKGINNGDRVTVSSKRGFIRAVAVVTRRLKPLNVNGQQVETVGIPIHWGFEGVARKGYIANTLTPNVGDANSQTPEYKAFLVNIEKA

Entity 2 polymer

描述 description	FORMATE DEHYDROGENASE, NITRATE-INDUCIBLE, IRON-SULFUR SUBUNIT
分子量 formula_weight	32279.7 kDa
EC 编号 ec_number	1.2.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAMETQDIIKRSATNSITPPSQVRDYKAEVAKLIDVSTCIGCKACQVACSEWNDIRDEVGHCVGVYDNPADLSAKSWTVMRFSETEQNGKLEWLIRKDGCMHCEDPGCLKACPSAGAIIQYANGIVDFQSENCIGCGYCIAGCPFNIPRLNKEDNRVYKCTLCVDRVSVGQEPACVKTCPTGAIHFGTKKEMLELAEQRVAKLKARGYEHAGVYNPEGVGGTHVMYVLHHADQPELYHGLPKDPKIDTSVSLWKGALKPLAAAGFIATFAGLIFHYIGIGPNKEVDDDEEDHHE

Entity 3 polymer

描述 description	FORMATE DEHYDROGENASE, NITRATE-INDUCIBLE, CYTOCHROME B556(FDN) SUBUNIT
分子量 formula_weight	25405.5 kDa
EC 编号 ec_number	1.2.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSKSKMIVRTKFIDRACHWTVVICFFLVALSGISFFFPTLQWLTQTFGTPQMGRILHPFFGIAIFVALMFMFVRFVHHNIPDKKDIPWLLNIVEVLKGNEHKVADVGKYNAGQKMMFWSIMSMIFVLLVTGVIIWRPYFAQYFPMQVVRYSLLIHAAAGIILIHAILIHMYMAFWVKGSIKGMIEGKVSRRWAKKHHPRWYREIEKAEAKKESEEGI

Entity 4 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 non-polymer

描述 description	2-AMINO-5,6-DIMERCAPTO-7-METHYL-3,7,8A,9-TETRAHYDRO-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-4-ONE GUANOSINE DINUCLEOTIDE
分子量 formula_weight	740.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 non-polymer

描述 description	MOLYBDENUM(VI) ION
分子量 formula_weight	95.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	CARDIOLIPIN
分子量 formula_weight	1464.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	PROTOPORPHYRIN IX CONTAINING FE
分子量 formula_weight	616.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 non-polymer

描述 description	2-HEPTYL-4-HYDROXY QUINOLINE N-OXIDE
分子量 formula_weight	259.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 10 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1984

▼

6. 折叠分类 (SCOP + CATH) 12 domains

SCOP 2.08 (5 domains)

结构域编号 domain_id	d1kqga1
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.52 — Double psi beta-barrel
超家族 Superfamily superfamily	b.52.2 — ADC-like
家族 Family family	b.52.2.2 — Formate dehydrogenase/DMSO reductase, C-terminal domain

结构域编号 domain_id	d1kqga2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.81 — Formate dehydrogenase/DMSO reductase, domains 1-3
超家族 Superfamily superfamily	c.81.1 — Formate dehydrogenase/DMSO reductase, domains 1-3
家族 Family family	c.81.1.1 — Formate dehydrogenase/DMSO reductase, domains 1-3

结构域编号 domain_id	d1kqgb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.58 — Ferredoxin-like
超家族 Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
家族 Family family	d.58.1.5 — Ferredoxin domains from multidomain proteins

结构域编号 domain_id	d1kqgb2
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.23 — Single transmembrane helix
超家族 Superfamily superfamily	f.23.22 — Iron-sulfur subunit of formate dehydrogenase N, transmembrane anchor
家族 Family family	f.23.22.1 — Iron-sulfur subunit of formate dehydrogenase N, transmembrane anchor

结构域编号 domain_id	d1kqgc_
类 Class class	f — Membrane and cell surface proteins and peptides
折叠类型 Fold fold	f.21 — Heme-binding four-helical bundle
超家族 Superfamily superfamily	f.21.1 — Transmembrane di-heme cytochromes
家族 Family family	f.21.1.1 — Formate dehydrogenase N, cytochrome (gamma) subunit

CATH v4.4 (7 domains)

结构域编号 domain_id	1kqgA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	740 —

结构域编号 domain_id	1kqgA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	228 — Dimethylsulfoxide Reductase; domain 2
同源超家族 H-superfamily homologous superfamily	10 — Dimethylsulfoxide Reductase, domain 2

结构域编号 domain_id	1kqgA04
类 Class class	2 — Mainly Beta
架构 Architecture architecture	40 — Beta Barrel
拓扑 Topology topology	40 — Barwin-like endoglucanases
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1kqgB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1kqgB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	70 — Alpha-Beta Plaits
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1kqgB03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
同源超家族 H-superfamily homologous superfamily	480 — Single helix bin

结构域编号 domain_id	1kqgC00
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	950 — Fumarate Reductase Cytochrome B subunit
同源超家族 H-superfamily homologous superfamily	20 — Transmembrane di-heme cytochromes, Chain C

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	203.000 Å
晶胞边长 b length_b	203.000 Å
晶胞边长 c length_c	203.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	12

空间群 space_group	P 21 3
空间群编号 int_tables_number	198
晶系 crystal_system	—

分辨率 resolution	2.800 Å
最低分辨率 resolution_low	40.000 Å
R 因子 r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2390

fit	/app/data/saxs_computation/kq/1kqg/1kqg.fit
pddf	/app/data/pr_computation/kq/1kqg/1kqg.pr.out
profile	/app/data/saxs_computation/kq/1kqg/1kqg.dat
