Nasutitermes takasagoensis
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | CALCIUM ION × 1 water × 1 | Consistent with protein count |
| UniProt name | O77044_9NEOP |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–433； UniProt 16–448 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1ksc |
| Deposition date deposition_date | 2002-01-11 |
| Structure title title | The structure of Endoglucanase from termite, Nasutitermes takasagoensis, at pH 5.6. |
| Keywords keywords | Cellulase, Endoglucanase, Termite, Nasutitermes takasagoensis, Glycosyl Hydrolase, Family 9, (Alpha/Alpha)6, HYDROLASE; HYDROLASE |
| Experimental Method method | X-RAY DIFFRACTION |

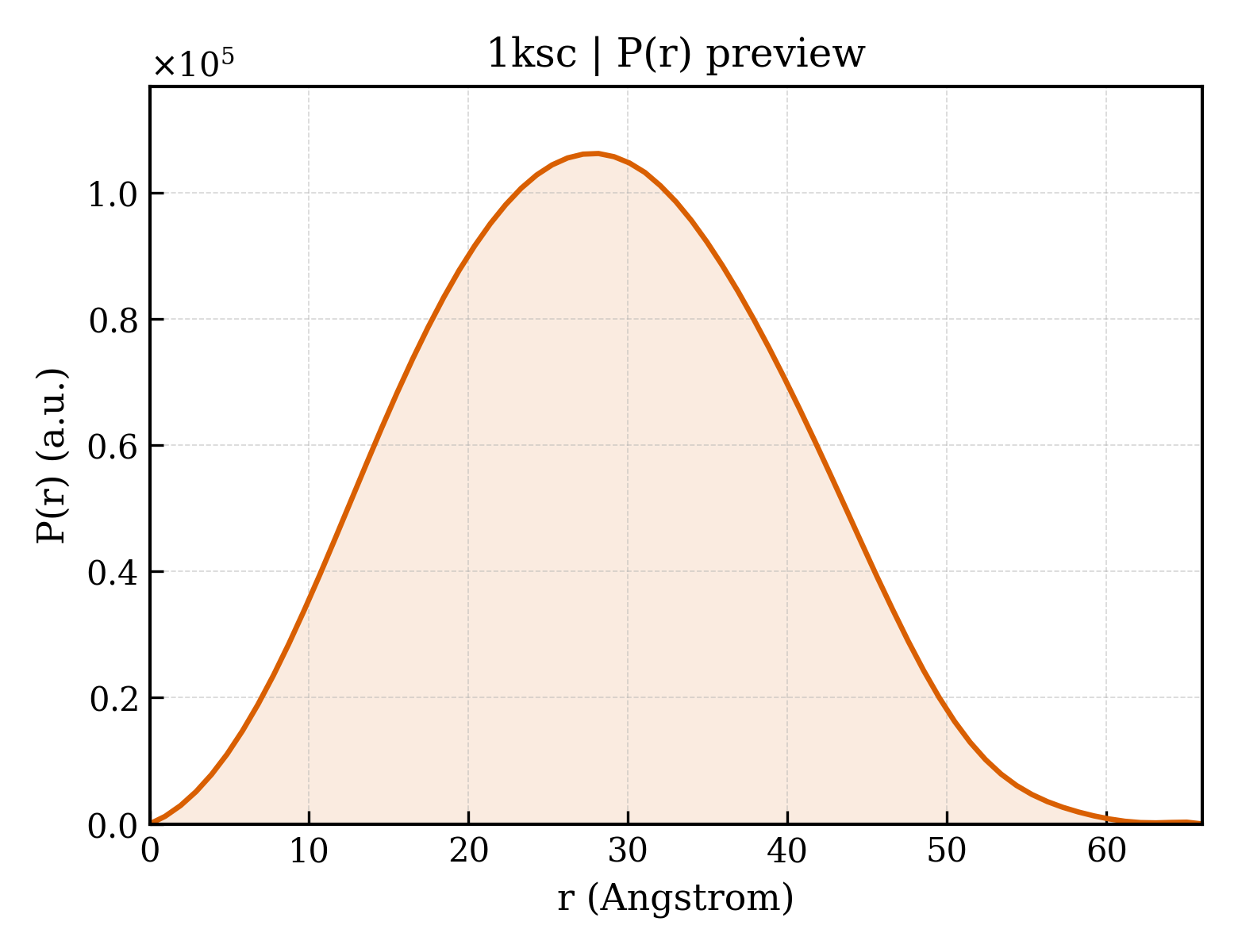

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 21.62 Å |
| Rg (electron density) | 20.34 Å |
| Total Rg | 21.25 Å |
| Atom count | 3384 |
| Residues | 433 |
| Excluded volume | 59030 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1ksca1 |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.102 — alpha/alpha toroid |
| Superfamily Superfamily superfamily | a.102.1 — Six-hairpin glycosidases |
| Family Family family | a.102.1.2 — Cellulases catalytic domain |
| Domain ID domain_id | d1ksca2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1kscA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 50 — Alpha/alpha barrel |
| Topology topology | 10 — Glycosyltransferase |
| Homologous superfamily homologous superfamily | 10 — |
