SAXSdb — 1ktn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-deoxyribose-5-phosphate aldolase

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DEOC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–250； UniProt 1–250 Author chain B； PDBConstruct 1–250； UniProt 1–250

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ktn
Deposition date deposition_date	2002-01-16
Structure title title	Structural Genomics, Protein EC1535
Keywords keywords	BETA BARREL, STRUCTURAL GENOMICS, PSI, Protein Structure Initiative, Midwest Center for Structural Genomics, MCSG, LYASE; STRUCTURAL GENOMICS, LYASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1ktn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1ktn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

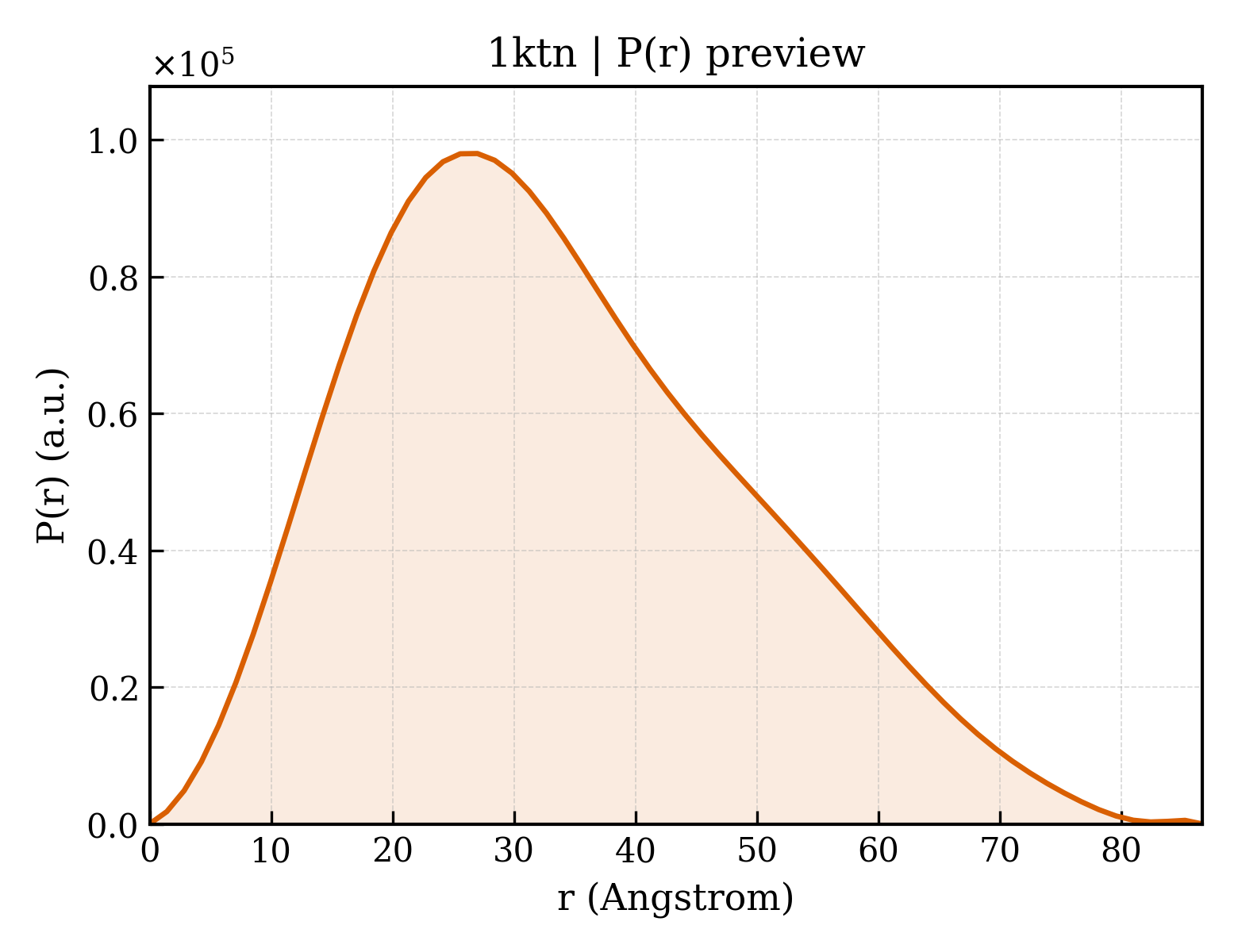

1ktn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.09 Å
Rg (electron density)	25.45 Å
Total Rg	26.23 Å
Atom count	3762
Residues	499
Excluded volume	67429 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1ktn__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1ktna_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.1 — Class I aldolase

Domain ID domain_id	d1ktnb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.1 — Class I aldolase

CATH v4.4 (2 domains)

Domain ID domain_id	1ktnA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

Domain ID domain_id	1ktnB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	62.566 Å
Unit-cell length b length_b	53.558 Å
Unit-cell length c length_c	81.365 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.97 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.400 Å
Low-resolution limit resolution_low	38.650 Å
R factor r_factor	0.1860
R_work r_work	0.1860
R_free r_free	0.2050

Description description	2-deoxyribose-5-phosphate aldolase
Molecular weight formula_weight	26915.0 kDa
EC 编号 ec_number	4.1.2.4
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4393

Structural Genomics, Protein EC1535

1. Protein Identity and Related Structures Protein Identity & Related Structures

2-deoxyribose-5-phosphate aldolase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1ktn__assembly_1__model_1

1ktn__assembly_1__model_1 | I(q)

1ktn__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

CATH v4.4 (2 domains)

7. Citations (1)

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	631
