OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | EQW × 1 CADMIUM ION × 10 water × 2 | Consistent with protein count |
| UniProt name | O57413_TRIMU |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–203； UniProt 196–398 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1kui |
| Deposition date deposition_date | 2002-01-22 |
| Structure title title | Crystal Structure of a Taiwan Habu Venom Metalloproteinase complexed with pEQW. |
| Keywords keywords | alpha/beta protein, retro-binding manner, HYDROLASE-HYDROLASE INHIBITOR COMPLEX; HYDROLASE/HYDROLASE INHIBITOR |
| Experimental Method method | X-RAY DIFFRACTION |

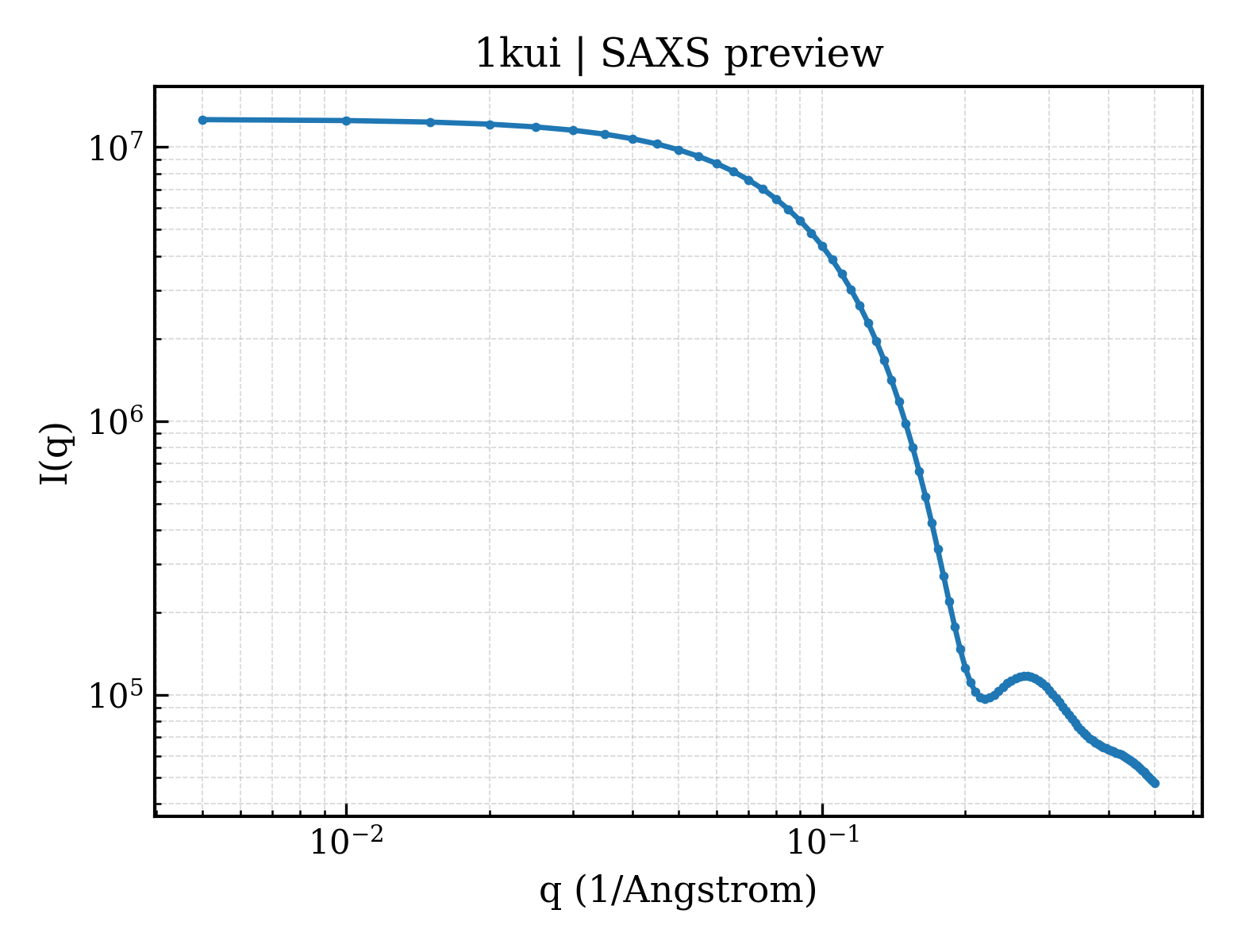

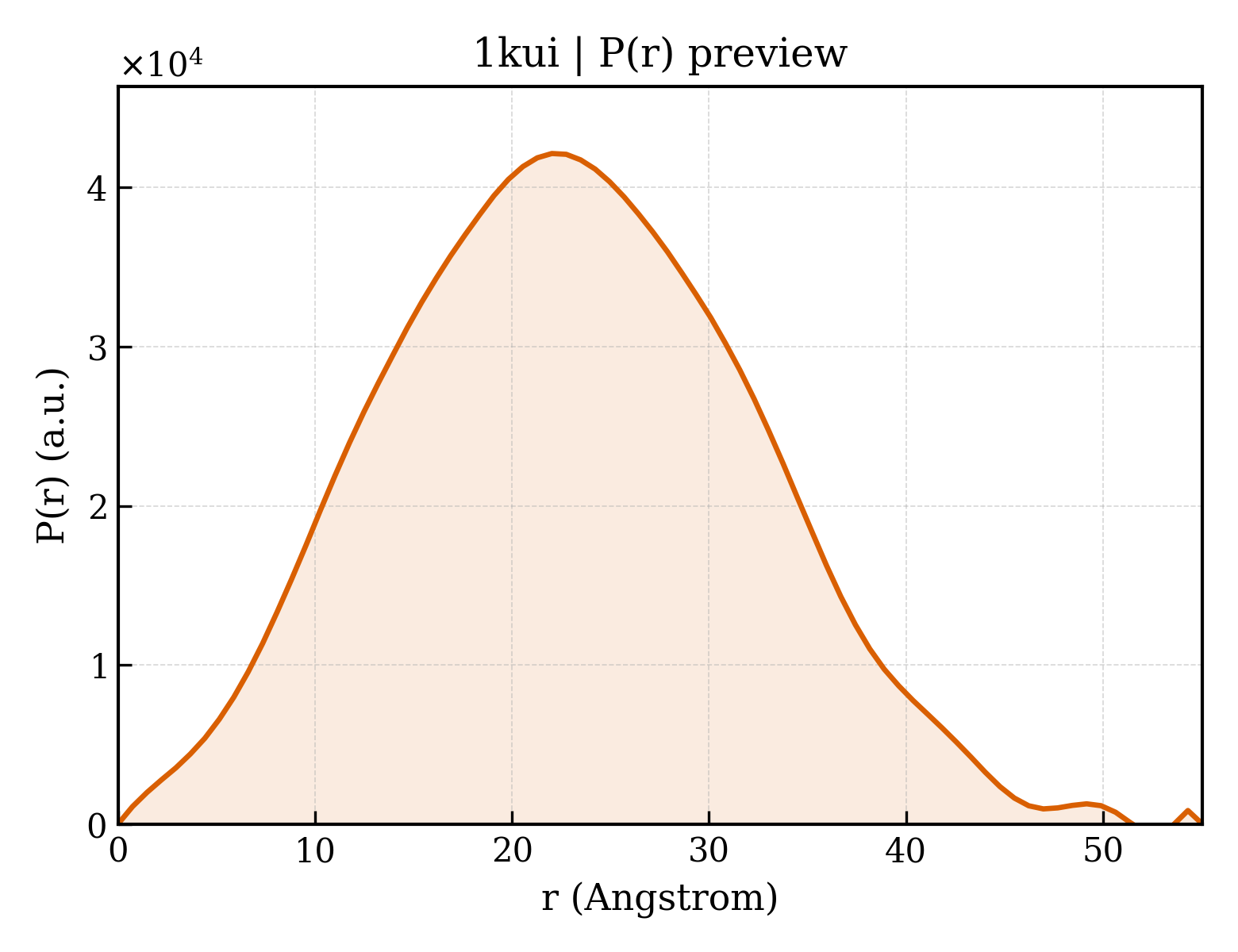

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.55 Å |
| Rg (electron density) | 16.27 Å |
| Total Rg | 17.53 Å |
| Atom count | 1658 |
| Residues | 203 |
| Excluded volume | 29711 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1kuia_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.92 — Zincin-like |
| Superfamily Superfamily superfamily | d.92.1 — Metalloproteases ('zincins'), catalytic domain |
| Family Family family | d.92.1.9 — Reprolysin-like |
| Domain ID domain_id | 1kuiA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 390 — Collagenase (Catalytic Domain) |
| Homologous superfamily homologous superfamily | 10 — Collagenase (Catalytic Domain) |
