Structure at 1.9 A Resolution of a Quinohemoprotein Alcohol Dehydrogenase from Pseudomonas putida HK5

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TYPE II QUINOHEMOPROTEIN ALCOHOL DEHYDROGENASE

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	CALCIUM ION × 1 PYRROLOQUINOLINE QUINONE × 1 HEME C × 1 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 ACETONE × 1 GLYCEROL × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8GR64_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–668； UniProt 23–690

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kv9
Deposition date deposition_date	2002-01-25
Structure title title	Structure at 1.9 A Resolution of a Quinohemoprotein Alcohol Dehydrogenase from Pseudomonas putida HK5
Keywords keywords	Quinohemoprotein Alcohol Dehydrogenase, electron transfer, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1kv9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1kv9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

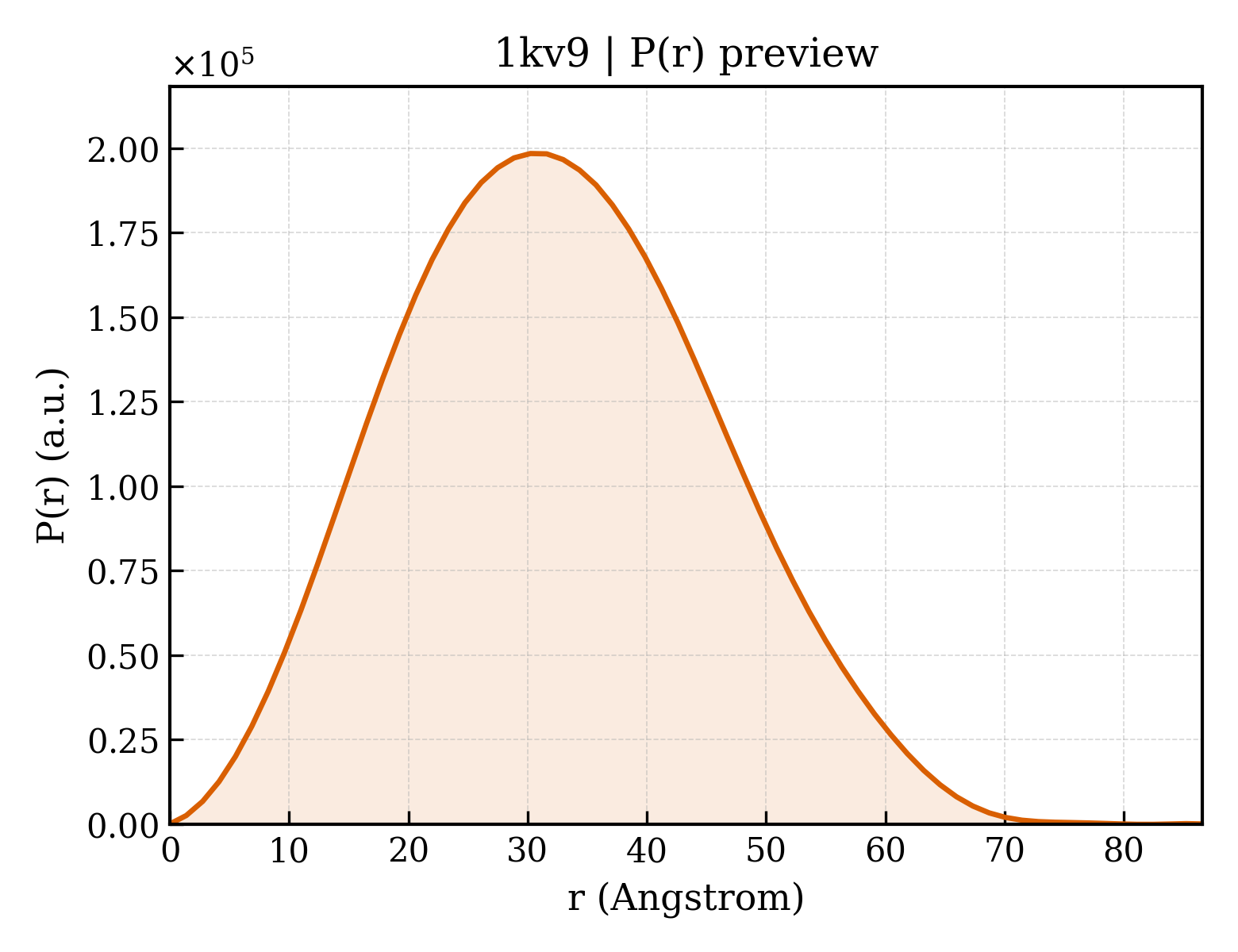

1kv9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.90 Å
Rg (electron density)	23.96 Å
Total Rg	24.92 Å
Atom count	5196
Residues	664
Excluded volume	92105 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1kv9__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	TYPE II QUINOHEMOPROTEIN ALCOHOL DEHYDROGENASE
Molecular weight formula_weight	72709.0 kDa
EC 编号 ec_number	1.1.99.-
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5928

AGVDEAAIRATEQAGGEWLSHGRTYAEQRFSPLKQIDASNVRSLGLAWYMDLDNTRGLEATPLFHDGVIYTSMSWSRVIAVDAASGKELWRYDPEVAKVKARTSCCDAVNRGVALWGDKVYVGTLDGRLIALDAKTGKAIWSQQTTDPAKPYSITGAPRVVKGKVIIGNGGAEYGVRGFVSAYDADTGKLAWRFYTVPGDPALPYEHPELREAAKTWQGDQYWKLGGGGTVWDSMAYDPELDLLYVGTGNGSPWNREVRSPGGGDNLYLSSILAIRPDTGKLAWHYQVTPGDSWDFTATQQITLAELNIDGKPRKVLMQAPKNGFFYVLDRTNGKLISAEKFGKVTWAEKVDLATGRPVEAPGVRYEKEPIVMWPSPFGAHNWHSMSFNPGTGLVYIPYQEVPGVYRNEGKDFVTRKAFNTAAGFADATDVPAAVVSGALLAWDPVKQKAAWKVPYPTHWNGGTLSTAGNLVFQGTAAGQMHAYSADKGEALWQFEAQSGIVAAPMTFELAGRQYVAIMAGWGGVATLTGGESMNLPGMKNRSRLLVFALDGKAQLPPPAPAPAKVERVPQPVTAAPEQVQAGKQLYGQFCSVCHGMGTISGGLIPDLRQSSDATREHFQQIVLQGALKPLGMPSFDDSLKPEEVEQIKLYVMSREYEDYMARHKAAP

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	PYRROLOQUINOLINE QUINONE
Molecular weight formula_weight	330.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	HEME C
Molecular weight formula_weight	618.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	ACETONE
Molecular weight formula_weight	58.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	732

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1kv9a1
Class class	a — All alpha proteins
Fold Fold fold	a.3 — Cytochrome c
Superfamily Superfamily superfamily	a.3.1 — Cytochrome c
Family Family family	a.3.1.6 — Quinoprotein alcohol dehydrogenase, C-terminal domain

Domain ID domain_id	d1kv9a2
Class class	b — All beta proteins
Fold Fold fold	b.70 — 8-bladed beta-propeller
Superfamily Superfamily superfamily	b.70.1 — Quinoprotein alcohol dehydrogenase-like
Family Family family	b.70.1.1 — Quinoprotein alcohol dehydrogenase-like

CATH v4.4 (2 domains)

Domain ID domain_id	1kv9A01
Class class	2 — Mainly Beta
Architecture architecture	140 — 8 Propeller
Topology topology	10 — Methanol Dehydrogenase; Chain A
Homologous superfamily homologous superfamily	10 — Quinoprotein alcohol dehydrogenase-like superfamily

Domain ID domain_id	1kv9A02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	760 — Cytochrome Bc1 Complex; Chain D, domain 2
Homologous superfamily homologous superfamily	10 — Cytochrome c-like domain

▶

Unit-cell length a length_a	54.807 Å
Unit-cell length b length_b	57.437 Å
Unit-cell length c length_c	67.523 Å
Unit-cell angle α angle_alpha	89.65 °
Unit-cell angle β angle_beta	69.34 °
Unit-cell angle γ angle_gamma	68.39 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	—
R_work r_work	0.1540
R_free r_free	0.1890
