SAXSdb — 1kvy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PHOSPHOLIPASE A2

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CALCIUM ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PA21B_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–123； UniProt 23–145

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kvy
Deposition date deposition_date	1998-04-29
Structure title title	CARBOXYLIC ESTER HYDROLASE, SINGLE MUTANT D49E COORDINATED TO CALCIUM
Keywords keywords	HYDROLASE, ENZYME, CARBOXYLIC ESTER HYDROLASE, MUTANT; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1kvy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

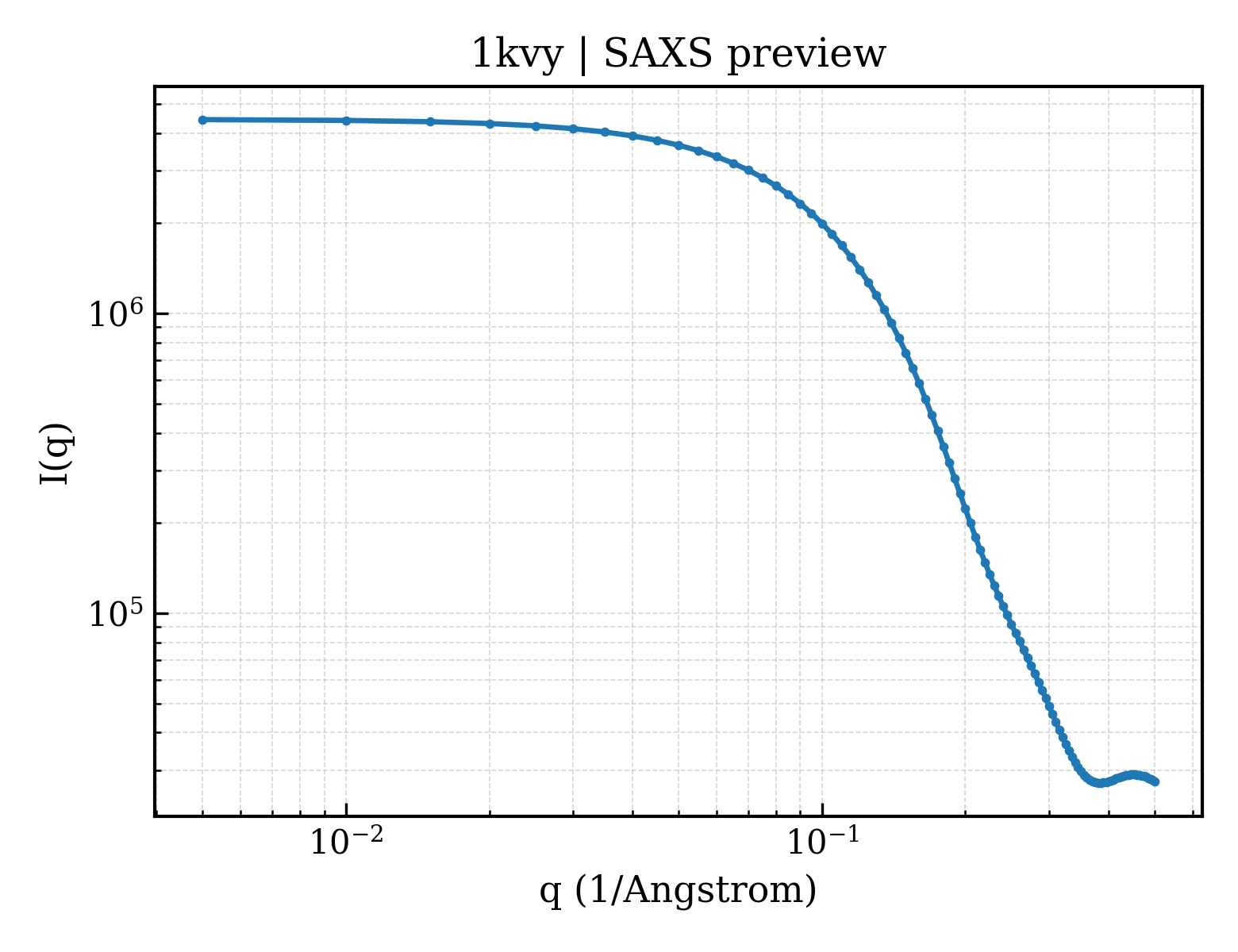

1kvy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

1kvy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.59 Å
Rg (electron density)	22.31 Å
Total Rg	22.96 Å
Atom count	1918
Residues	246
Excluded volume	33612 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1kvy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PHOSPHOLIPASE A2
Molecular weight formula_weight	13824.5 kDa
EC 编号 ec_number	3.1.1.4
Mutation mutation	D49E
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1029

ALWQFNGMIKCKIPSSEPLLDFNNYGCYCGLGGSGTPVDDLDRCCQTHENCYKQAKKLDSCKVLVDNPYTNNYSYSCSNNEITCSSENNACEAFICNCDRNAAICFSKVPYNKEHKNLDKKNC

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	70

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1kvya_
Class class	a — All alpha proteins
Fold Fold fold	a.133 — Phospholipase A2, PLA2
Superfamily Superfamily superfamily	a.133.1 — Phospholipase A2, PLA2
Family Family family	a.133.1.2 — Vertebrate phospholipase A2

CATH v4.4 (1 domains)

Domain ID domain_id	1kvyA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	90 — Phospholipase A2
Homologous superfamily homologous superfamily	10 — Phospholipase A2 domain

▶

7. Citations (8)

Structures of the catalytic site mutants D99A and H48Q and the calcium-loop mutant D49E of phospholipase A2.

Acta Crystallogr.,Sect.D (1999)

PMID: 10089353 · DOI: 10.1107/S0907444998013699 PRIMARY

Structure of the Complex of Bovine Pancreatic Phospholipase A2 with a Transition-State Analogue

Acta Crystallogr.,Sect.D (1998)

1.72 A Resolution Refinement of the Trigonal Form of Bovine Pancreatic Phospholipase A2

Acta Crystallogr.,Sect.D (1998)

;Crystal Structure of the Complex of Bovine Pancreatic Phospholipase A2 with the Inhibitor 1-Hexadecyl-3-(Trifluoroethyl)-Sn-Glycero-2-Phosphomethanol ;

Biochemistry (1997)

Phospholipase A2 Engineering. Structural and Functional Roles of the Highly Conserved Active Site Residue Aspartate-99

Biochemistry (1997)

;Phospholipase A2 Engineering. Deletion of the C-Terminus Segment Changes Substrate Specificity and Uncouples Calcium and Substrate Binding at the Zwitterionic Interface ;

Biochemistry (1996)

Phospholipase A2 Engineering. X-Ray Structural and Functional Evidence for the Interaction of Lysine-56 with Substrates

Biochemistry (1991)

The High Resolution Refinement of the Orthorhombic Bovine Pancreatic Phospholipase A2

To be Published

Unit-cell length a length_a	46.870 Å
Unit-cell length b length_b	46.870 Å
Unit-cell length c length_c	103.040 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	10.000 Å
R factor r_factor	0.1980
R_work r_work	0.1980
R_free r_free	0.2770
