SAXSdb — 1kwk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-GALACTOSIDASE

Thermus thermophilus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	beta-D-galactopyranose × 3 CHLORIDE ION × 3 ACETATE ION × 6 ZINC ION × 3 (4S)-2-METHYL-2,4-PENTANEDIOL × 6 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O69315_9DEIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–645； UniProt 1–645

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kwk
Deposition date deposition_date	2002-01-29
Structure title title	Crystal structure of Thermus thermophilus A4 beta-galactosidase in complex with galactose
Keywords keywords	TIM BARREL, GLYCOSIDE HYDROLASE FAMILY 42, TRIMER, GALACTOSE COMPLEX, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1kwk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1kwk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

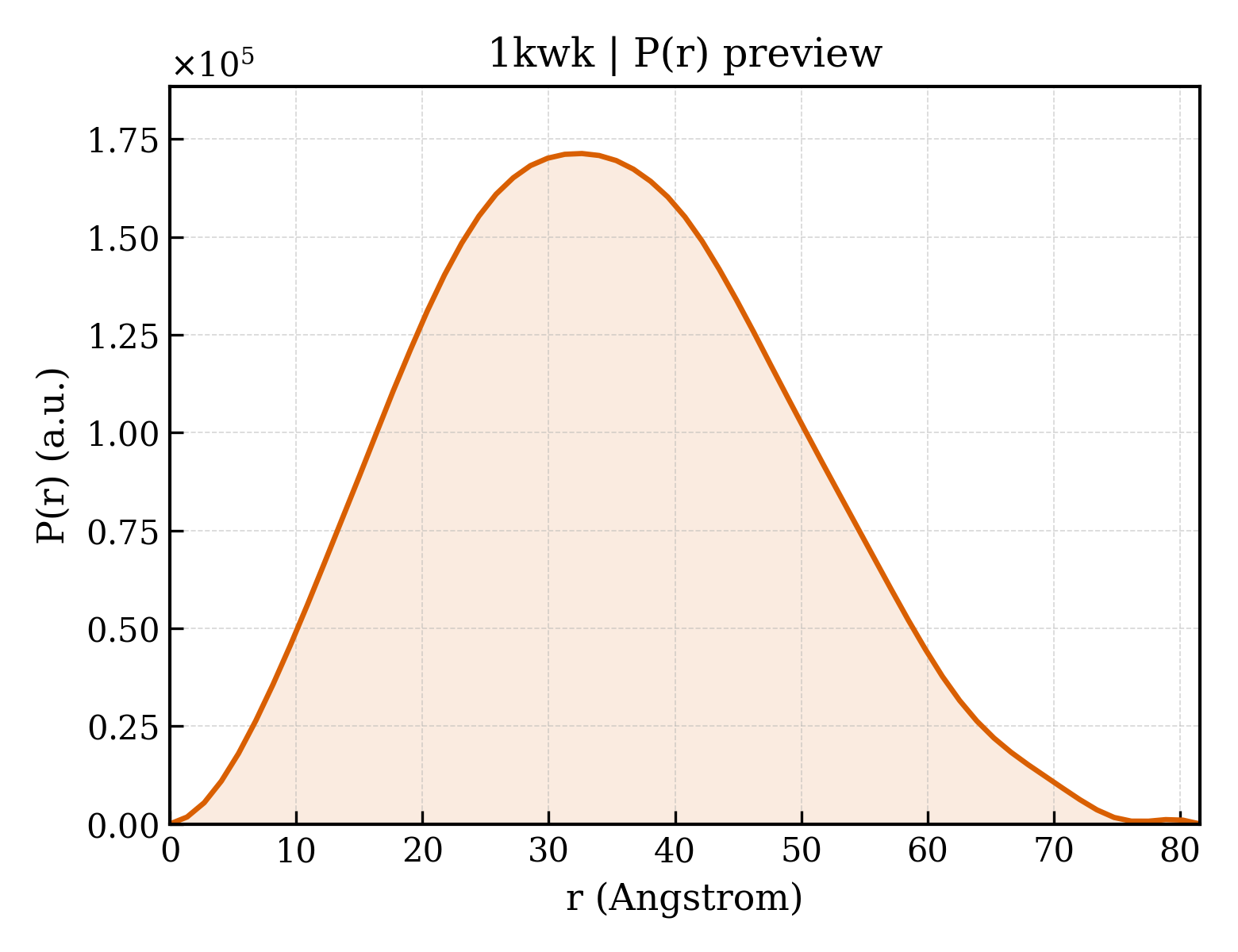

1kwk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.09 Å
Rg (electron density)	37.20 Å
Total Rg	37.79 Å
Atom count	15600
Residues	1932
Excluded volume	277140 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1kwk__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	BETA-GALACTOSIDASE
Molecular weight formula_weight	72908.9 kDa
EC 编号 ec_number	3.2.1.23
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5506

MLGVCYYPEHWPKERWKEDARRMREAGLSHVRIGEFAWALLEPEPGRLEWGWLDEAIATLAAEGLKVVLGTPTATPPKWLVDRYPEILPVDREGRRRRFGGRRHYCFSSPVYREEARRIVTLLAERYGGLEAVAGFQTDNEYGCHDTVRCYCPRCQEAFRGWLEARYGTIEALNEAWGTAFWSQRYRSFAEVELPHLTVAEPNPSHLLDYYRFASDQVRAFNRLQVEILRAHAPGKFVTHNFMGFFTDLDAFALAQDLDFASWDSYPLGFTDLMPLPPEEKLRYARTGHPDVAAFHHDLYRGVGRGRFWVMEQQPGPVNWAPHNPSPAPGMVRLWTWEALAHGAEVVSYFRWRQAPFAQEQMHAGLHRPDSAPDQGFFEAKRVAEELAALALPPVAQAPVALVFDYEAAWIYEVQPQGAEWSYLGLVYLFYSALRRLGLDVDVVPPGASLRGYAFAVVPSLPIVREEALEAFREAEGPVLFGPRSGSKTETFQIPKELPPGPLQALLPLKVVRVESLPPGLLEVAEGALGRFPLGLWREWVEAPLKPLLTFQDGKGALYREGRYLYLAAWPSPELAGRLLSALAAEAGLKVLSLPEGLRLRRRGTWVFAFNYGPEAVEAPASEGARFLLGSRRVGPYDLAVWEEA

Source Source

Source organism organism	Thermus thermophilus
NCBI taxonomy ID ncbi_taxonomy_id	274
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	beta-D-galactopyranose
Molecular weight formula_weight	180.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ACETATE ION
Molecular weight formula_weight	59.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	306

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d1kwka1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.1 — alpha-Amylases, C-terminal beta-sheet domain

Domain ID domain_id	d1kwka2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

Domain ID domain_id	d1kwka3
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.23 — Flavodoxin-like
Superfamily Superfamily superfamily	c.23.16 — Class I glutamine amidotransferase-like
Family Family family	c.23.16.5 — A4 beta-galactosidase middle domain

CATH v4.4 (3 domains)

Domain ID domain_id	1kwkA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1kwkA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	880 — Class I glutamine amidotransferase (GATase) domain

Domain ID domain_id	1kwkA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

▶

Unit-cell length a length_a	97.592 Å
Unit-cell length b length_b	97.592 Å
Unit-cell length c length_c	128.898 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 3 2 1
Space-group number int_tables_number	150
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	28.620 Å
R factor r_factor	0.1690
R_work r_work	0.1690
R_free r_free	0.2000

Crystal structure of Thermus thermophilus A4 beta-galactosidase in complex with galactose
