SAXSdb — 1kxv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ALPHA-AMYLASE, PANCREATIC

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–496	Not recorded	CAMELID VHH DOMAIN CAB10 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG4000 32%, Na citrate 0.1M & Ammonium Acetate 0.2M, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.229
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–496	Not recorded	CAMELID VHH DOMAIN CAB10 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG4000 32%, Na citrate 0.1M & Ammonium Acetate 0.2M, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.229

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1KXV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BVN PIG PANCREATIC ALPHA-AMYLASE IN COMPLEX WITH THE PROTEINACEOUS INHIBITOR TENDAMISTAT Deposited 1998-09-16	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；PROTEIN: 12 MG/ML IN 50 MM TRIS/HCL, PH 8.0, MIXED 5:1 WITH 40% (W/V) PEG 1000; RESERVOIR: 0.18-0.20 M SODIUM PHOSPHATE, PH 8.0 HARVESTED IN: 3 M SODIUM ACETATE, PH 7.5	Resolution 2.50 Å R-free 0.260
1DHK STRUCTURE OF PORCINE PANCREATIC ALPHA-AMYLASE Deposited 1996-10-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 6 CL CHLORIDE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.85 Å R-free 0.220
1HX0 Structure of pig pancreatic alpha-amylase complexed with the "truncate" acarbose molecule (pseudotrisaccharide) Deposited 2001-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa）	Mutation：Q16PCA Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 4 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions batch；pH 8.5；277 K；CaCl2, pH 8.5, batch, temperature 277K	Resolution 1.38 Å R-free 0.130
1JFH STRUCTURE OF A PANCREATIC ALPHA-AMYLASE BOUND TO A SUBSTRATE ANALOGUE AT 2.03 ANGSTROM RESOLUTION Deposited 1997-09-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 HG MERCURY (II) ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.03 Å R-free 0.185
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXT Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 20000 15%, Malate imidazole 0.2M, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.236
1KXT Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 20000 15%, Malate imidazole 0.2M, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.236
1KXT Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 20000 15%, Malate imidazole 0.2M, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.236
1OSE Porcine pancreatic alpha-amylase complexed with acarbose Deposited 1996-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	BGC beta-D-glucopyranose × 1 CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.222
1PIF PIG ALPHA-AMYLASE Deposited 1996-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–511（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.30 Å R-free 0.208
1PIG PIG PANCREATIC ALPHA-AMYLASE COMPLEXED WITH THE OLIGOSACCHARIDE V-1532 Deposited 1996-06-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	HMC 5-HYDROXYMETHYL-CHONDURITOL × 1 BGC beta-D-glucopyranose × 1 CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；VAPOR DIFFUSION; 10 MICROLITER OF PROTEIN (15 MG/ML IN 0.1 M AMMONIUM CACODYLATE, PH 10.0 0.001 M V-1532) WERE STEPWISE CONCENTRATED OVER 0.1, 0.15, AND 0.25 M AMMONIUM CACODYLATE, PH 6.0., vapor diffusion	Resolution 2.20 Å R-free 0.210
1PPI THE ACTIVE CENTER OF A MAMMALIAN ALPHA-AMYLASE. THE STRUCTURE OF THE COMPLEX OF A PANCREATIC ALPHA-AMYLASE WITH A CARBOHYDRATE INHIBITOR REFINED TO 2.2 ANGSTROMS RESOLUTION Deposited 1994-02-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–496（496 aa）	Not recorded	CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1UA3 Crystal structure of the pig pancreatic a-amylase complexed with malto-oligosaccharides Deposited 2003-02-27	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–496（496 aa）	Not recorded	CL CHLORIDE ION × 2 CA CALCIUM ION × 1 BGC beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 8；277 K；Sodium chloride, Calsium chloride, pH 8.0, LIQUID DIFFUSION, temperature 277K	Resolution 2.01 Å R-free 0.196
1VAH Crystal structure of the pig pancreatic-amylase complexed with r-nitrophenyl-a-D-maltoside Deposited 2004-02-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa）	Not recorded	CL CHLORIDE ION × 1 CA CALCIUM ION × 1 NPO P-NITROPHENOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 8；295 K；SODIUM CHLORIDE, CALSIUM CHLORIDE, pH 8.0, LIQUID DIFFUSION, temperature 295K	Resolution 2.40 Å R-free 0.233
1WO2 Crystal structure of the pig pancreatic alpha-amylase complexed with malto-oligosaacharides under the effect of the chloride ion Deposited 2004-08-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa）	Mutation：Q16PCA Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；277 K；Tris, Calcium chloride, Sodium chloride, pH 8, EVAPORATION, temperature 277K	Resolution 2.01 Å R-free 0.184
3L2L X-ray Crystallographic Analysis of Pig Pancreatic Alpha-Amylase with Limit Dextrin and Oligosaccharide Deposited 2009-12-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa） Fragment：residues 16-511	Non-standard monomer：Yes (specific site not provided by mmCIF)	GLC alpha-D-glucopyranose × 1 CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.75；298 K；0.010 M cacodylate, 0.002 M calcium chloride, pH 6.75, EVAPORATION, temperature 298K	Resolution 2.11 Å R-free 0.157
3L2M X-ray Crystallographic Analysis of Pig Pancreatic Alpha-Amylase with Alpha-cyclodextrin Deposited 2009-12-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa） Fragment：residues 16-511	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.75；298 K；0.010 M cacodylate, 0.002 M calcium chloride, soaking of alpha-cyclodextrin, pH 6.75, EVAPORATION, temperature 298K	Resolution 1.97 Å R-free 0.160
4X0N Porcine pancreatic alpha-amylase in complex with helianthamide, a novel proteinaceous inhibitor Deposited 2014-11-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–511（496 aa） Fragment：UNP residues 16-511	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；300 K；100 mM Tris, 8% PEG 8000	Resolution 2.60 Å R-free 0.226

16 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMYP_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–496； UniProt 1–496 Author chain B； PDBConstruct 1–496； UniProt 1–496

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1kxv
Deposition date deposition_date	2002-02-01
Structure title title	Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase
Keywords keywords	BETA 8 ALPHA 8, BETA BARREL, HYDROLASE, IMMUNE SYSTEM; HYDROLASE, IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.78 Å
Radius of gyration Rg (electron density) rg_electron	40.86 Å
Forward intensity I(0) i0	294188000.00
Molecular weight molecular_weight	135860.0 kDa
Excluded volume excluded_volume	167890 Å³
Envelope volume envelope_volume	208830 Å³
Hydration-shell volume shell_volume	44896 Å³
Envelope diameter envelope_diameter	149.5 Å
Shell Rg shell_rg	43.12 Å
Envelope Rg envelope_rg	40.68 Å
Shape Rg shape_rg	40.87 Å
Total Rg total_rg	40.96 Å
Total atoms total_atoms	9574
Residues n_residues	1232
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

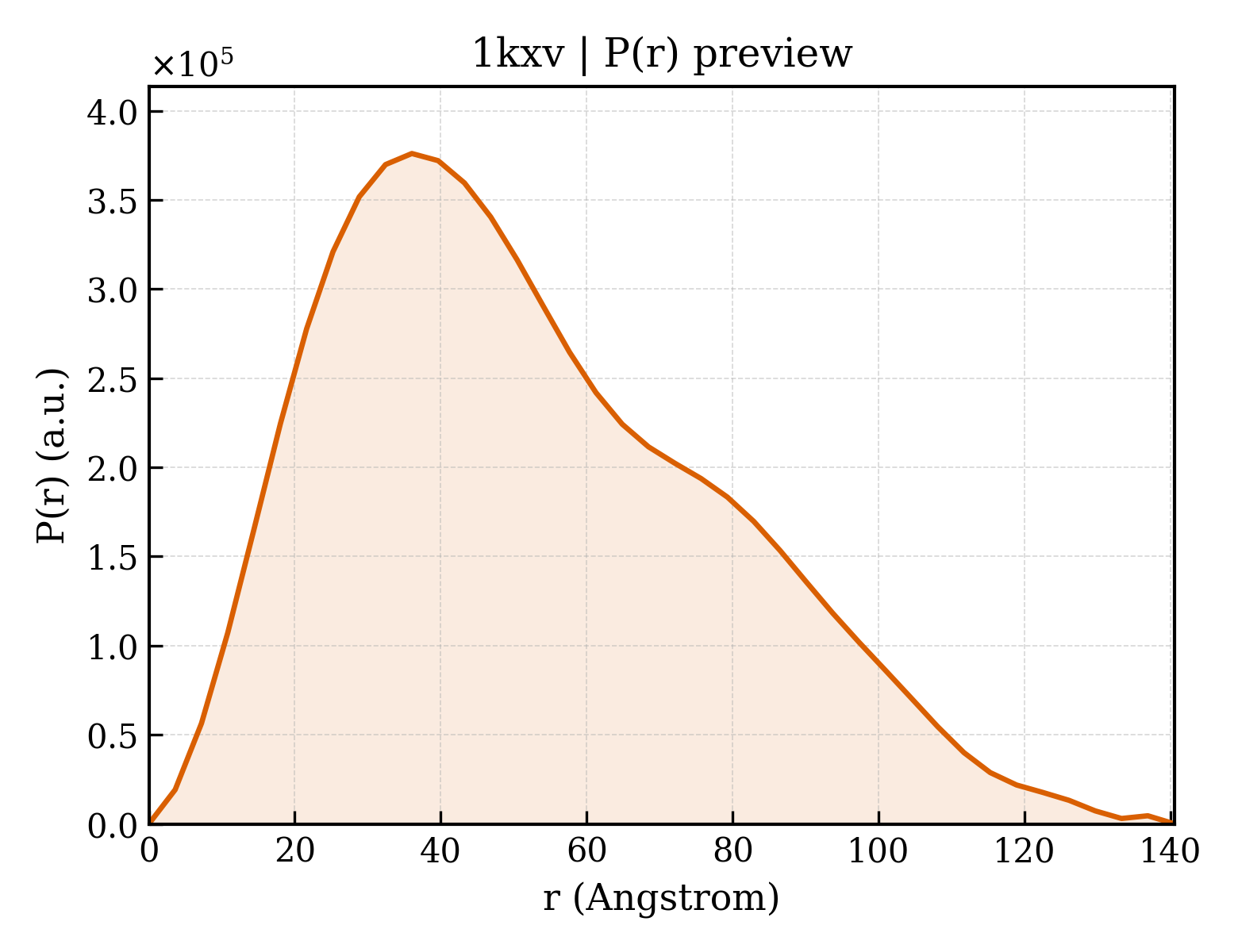

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.6 Å
Rg (real space) rg_real	41.11 Å
Rg uncertainty (real space) rg_real_error	1.44 Å
I(0) (real space) i0_real	2.9420e+08
I(0) uncertainty (real space) i0_real_error	5.0970e+06
Rg (reciprocal space) rg_reciprocal	40.78 Å
I(0) (reciprocal space) i0_reciprocal	294100000.0000
Solution quality estimate total_estimate	0.8012
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	36.0 Å
Skewness Skewness skewness	0.545
Kurtosis Kurtosis kurtosis	-0.357
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	36700000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.693; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.661; Smooth: 0.673

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ALPHA-AMYLASE, PANCREATIC
Molecular weight formula_weight	55462.8 kDa
EC 编号 ec_number	3.2.1.1
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	10951

QYAPQTQSGRTSIVHLFEWRWVDIALECERYLGPKGFGGVQVSPPNENIVVTNPSRPWWERYQPVSYKLCTRSGNENEFRDMVTRCNNVGVRIYVDAVINHMCGSGAAAGTGTTCGSYCNPGSREFPAVPYSAWDFNDGKCKTASGGIESYNDPYQVRDCQLVGLLDLALEKDYVRSMIADYLNKLIDIGVAGFRIDASKHMWPGDIKAVLDKLHNLNTNWFPAGSRPFIFQEVIDLGGEAIKSSEYFGNGRVTEFKYGAKLGTVVRKWSGEKMSYLKNWGEGWGFMPSDRALVFVDNHDNQRGHGAGGSSILTFWDARLYKIAVGFMLAHPYGFTRVMSSYRWARNFVNGEDVNDWIGPPNNNGVIKEVTINADTTCGNDWVCEHRWREIRNMVWFRNVVDGQPFANWWDNGSNQVAFGRGNRGFIVFNNDDWQLSSTLQTGLPGGTYCDVISGDKVGNSCTGIKVYVSSDGTAQFSISNSAEDPFIAIHAESKL

Entity 2 Entity 2 polymer

Description description	CAMELID VHH DOMAIN CAB10
Molecular weight formula_weight	12837.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

QVQLVESGGGTVPAGGSLRLSCAASGNTLCTYDMSWYRRAPGKGRDFVSGIDNDGTTTYVDSVAGRFTISQGNAKNTAYLQMDSLKPDDTAMYYCKPSLRYGLPGCPIIPWGQGTQVTVSS

来源 Source

来源生物 organism	Camelus dromedarius
通用名 common_name	Arabian camel
NCBI Class编号 ncbi_taxonomy_id	9838
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1377

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d1kxva1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.1 — alpha-Amylases, C-terminal beta-sheet domain

Domain ID domain_id	d1kxva2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

Domain ID domain_id	d1kxvb1
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.1 — alpha-Amylases, C-terminal beta-sheet domain

Domain ID domain_id	d1kxvb2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

Domain ID domain_id	d1kxvc_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d1kxvd_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

CATH v4.4 (6 domains)

Domain ID domain_id	1kxvA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1kxvA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

Domain ID domain_id	1kxvB01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	1kxvB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

Domain ID domain_id	1kxvC00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	1kxvD00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (3)

▶

Unit-cell length a length_a	57.568 Å
Unit-cell length b length_b	60.990 Å
Unit-cell length c length_c	107.333 Å
Unit-cell angle α angle_alpha	98.78 °
Unit-cell angle β angle_beta	100.88 °
Unit-cell angle γ angle_gamma	101.14 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	29.340 Å
R factor r_factor	—
R_work r_work	0.2050
R_free r_free	0.2290

fit	/app/data/saxs_computation/kx/1kxv/1kxv.fit
pddf	/app/data/pr_computation/kx/1kxv/1kxv.pr.out
profile	/app/data/saxs_computation/kx/1kxv/1kxv.dat
