SAXSdb — 3l2m

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Pancreatic alpha-amylase

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 3 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 16–511	Fragment：residues 16-511 Non-standard monomer：Yes (specific site not provided by mmCIF)	Cyclohexakis-(1-4)-(alpha-D-glucopyranose) × 3 CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：EVAPORATION；pH 6.75；298 K；0.010 M cacodylate, 0.002 M calcium chloride, soaking of alpha-cyclodextrin, pH 6.75, EVAPORATION, temperature 298K	Resolution 1.97 Å R-free 0.160

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3L2M	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BVN PIG PANCREATIC ALPHA-AMYLASE IN COMPLEX WITH THE PROTEINACEOUS INHIBITOR TENDAMISTAT Deposited 1998-09-16	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；PROTEIN: 12 MG/ML IN 50 MM TRIS/HCL, PH 8.0, MIXED 5:1 WITH 40% (W/V) PEG 1000; RESERVOIR: 0.18-0.20 M SODIUM PHOSPHATE, PH 8.0 HARVESTED IN: 3 M SODIUM ACETATE, PH 7.5	Resolution 2.50 Å R-free 0.260
1DHK STRUCTURE OF PORCINE PANCREATIC ALPHA-AMYLASE Deposited 1996-10-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 6 CL CHLORIDE ION × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.85 Å R-free 0.220
1HX0 Structure of pig pancreatic alpha-amylase complexed with the "truncate" acarbose molecule (pseudotrisaccharide) Deposited 2001-01-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa）	Mutation：Q16PCA Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 4 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions batch；pH 8.5；277 K；CaCl2, pH 8.5, batch, temperature 277K	Resolution 1.38 Å R-free 0.130
1JFH STRUCTURE OF A PANCREATIC ALPHA-AMYLASE BOUND TO A SUBSTRATE ANALOGUE AT 2.03 ANGSTROM RESOLUTION Deposited 1997-09-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 HG MERCURY (II) ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.03 Å R-free 0.185
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXQ Camelid VHH Domain in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；Phosphate buffer 0.8 M, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.219
1KXT Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 20000 15%, Malate imidazole 0.2M, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.236
1KXT Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 20000 15%, Malate imidazole 0.2M, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.236
1KXT Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–496（496 aa）	Not recorded	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；PEG 20000 15%, Malate imidazole 0.2M, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.236
1KXV Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–496（496 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG4000 32%, Na citrate 0.1M & Ammonium Acetate 0.2M, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.229
1KXV Camelid VHH Domains in Complex with Porcine Pancreatic alpha-Amylase Deposited 2002-02-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–496（496 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；293 K；PEG4000 32%, Na citrate 0.1M & Ammonium Acetate 0.2M, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.229
1OSE Porcine pancreatic alpha-amylase complexed with acarbose Deposited 1996-03-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	BGC beta-D-glucopyranose × 1 CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.30 Å R-free 0.222
1PIF PIG ALPHA-AMYLASE Deposited 1996-06-15	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 17–511（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；pH 6.0	Resolution 2.30 Å R-free 0.208
1PIG PIG PANCREATIC ALPHA-AMYLASE COMPLEXED WITH THE OLIGOSACCHARIDE V-1532 Deposited 1996-06-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–496（495 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	HMC 5-HYDROXYMETHYL-CHONDURITOL × 1 BGC beta-D-glucopyranose × 1 CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6；VAPOR DIFFUSION; 10 MICROLITER OF PROTEIN (15 MG/ML IN 0.1 M AMMONIUM CACODYLATE, PH 10.0 0.001 M V-1532) WERE STEPWISE CONCENTRATED OVER 0.1, 0.15, AND 0.25 M AMMONIUM CACODYLATE, PH 6.0., vapor diffusion	Resolution 2.20 Å R-free 0.210
1PPI THE ACTIVE CENTER OF A MAMMALIAN ALPHA-AMYLASE. THE STRUCTURE OF THE COMPLEX OF A PANCREATIC ALPHA-AMYLASE WITH A CARBOHYDRATE INHIBITOR REFINED TO 2.2 ANGSTROMS RESOLUTION Deposited 1994-02-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–496（496 aa）	Not recorded	CL CHLORIDE ION × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.20 Å
1UA3 Crystal structure of the pig pancreatic a-amylase complexed with malto-oligosaccharides Deposited 2003-02-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–496（496 aa）	Not recorded	CL CHLORIDE ION × 2 CA CALCIUM ION × 1 BGC beta-D-glucopyranose × 1 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 8；277 K；Sodium chloride, Calsium chloride, pH 8.0, LIQUID DIFFUSION, temperature 277K	Resolution 2.01 Å R-free 0.196
1VAH Crystal structure of the pig pancreatic-amylase complexed with r-nitrophenyl-a-D-maltoside Deposited 2004-02-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa）	Not recorded	CL CHLORIDE ION × 1 CA CALCIUM ION × 1 NPO P-NITROPHENOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIQUID DIFFUSION；pH 8；295 K；SODIUM CHLORIDE, CALSIUM CHLORIDE, pH 8.0, LIQUID DIFFUSION, temperature 295K	Resolution 2.40 Å R-free 0.233
1WO2 Crystal structure of the pig pancreatic alpha-amylase complexed with malto-oligosaacharides under the effect of the chloride ion Deposited 2004-08-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa）	Mutation：Q16PCA Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 6	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8；277 K；Tris, Calcium chloride, Sodium chloride, pH 8, EVAPORATION, temperature 277K	Resolution 2.01 Å R-free 0.184
3L2L X-ray Crystallographic Analysis of Pig Pancreatic Alpha-Amylase with Limit Dextrin and Oligosaccharide Deposited 2009-12-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 16–511（496 aa） Fragment：residues 16-511	Non-standard monomer：Yes (specific site not provided by mmCIF)	GLC alpha-D-glucopyranose × 1 CA CALCIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 6.75；298 K；0.010 M cacodylate, 0.002 M calcium chloride, pH 6.75, EVAPORATION, temperature 298K	Resolution 2.11 Å R-free 0.157
4X0N Porcine pancreatic alpha-amylase in complex with helianthamide, a novel proteinaceous inhibitor Deposited 2014-11-21	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 16–511（496 aa） Fragment：UNP residues 16-511	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；300 K；100 mM Tris, 8% PEG 8000	Resolution 2.60 Å R-free 0.226

16 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMYP_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–496； UniProt 16–511

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3l2m
Deposition date deposition_date	2009-12-15
Structure title title	X-ray Crystallographic Analysis of Pig Pancreatic Alpha-Amylase with Alpha-cyclodextrin
Keywords keywords	;catalytic domain, carbohydrate binding module, alpha-cyclodextrin, Carbohydrate metabolism, Glycoprotein, Glycosidase, Metal-binding, Pyrrolidone carboxylic acid, Secreted, HYDROLASE ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.43 Å
Radius of gyration Rg (electron density) rg_electron	23.38 Å
Forward intensity I(0) i0	59095700.00
Molecular weight molecular_weight	58392.0 kDa
Excluded volume excluded_volume	72181 Å³
Envelope volume envelope_volume	81878 Å³
Hydration-shell volume shell_volume	29018 Å³
Envelope diameter envelope_diameter	86.2 Å
Shell Rg shell_rg	31.07 Å
Envelope Rg envelope_rg	23.56 Å
Shape Rg shape_rg	23.34 Å
Total Rg total_rg	24.28 Å
Total atoms total_atoms	7975
Residues n_residues	495
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

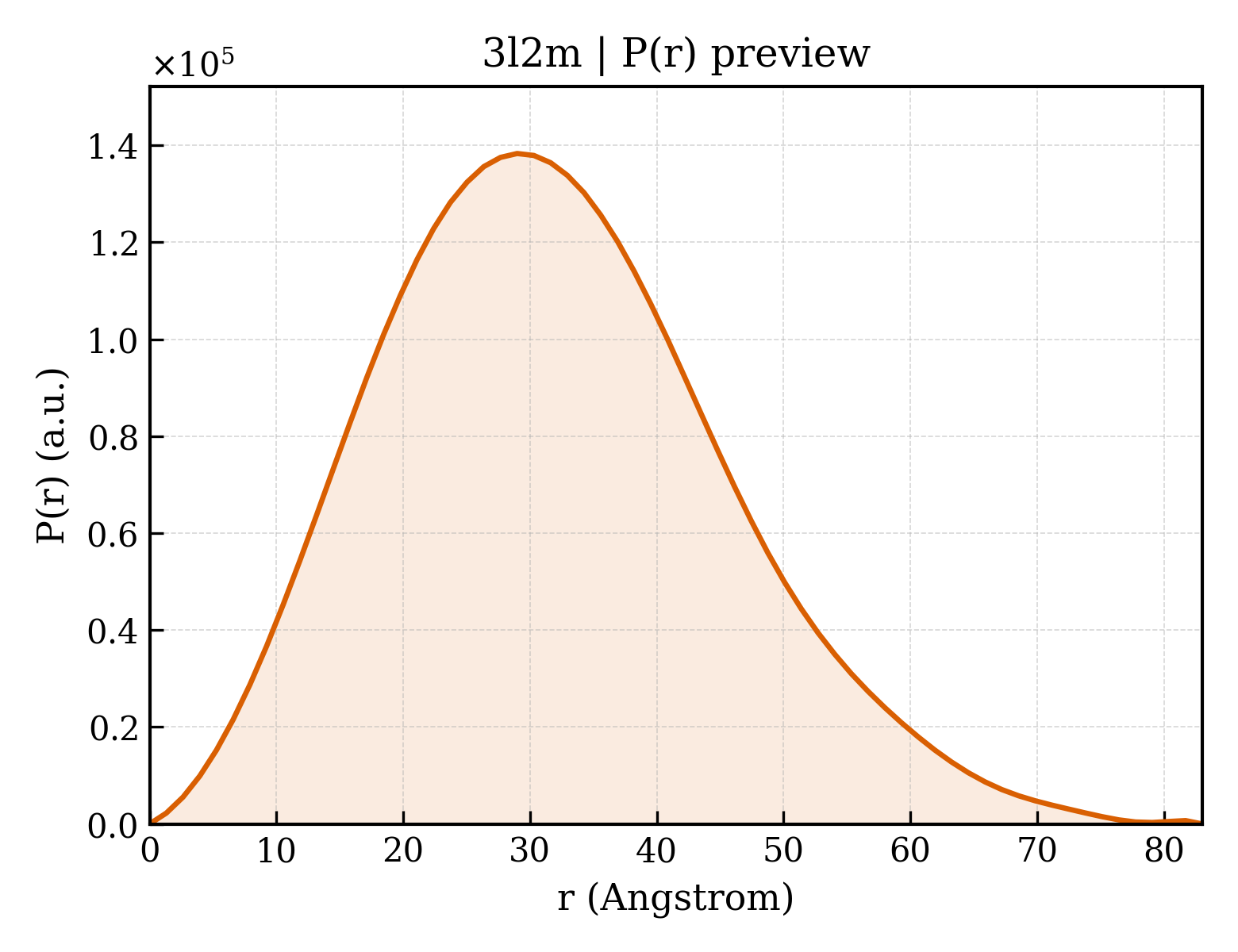

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	83.0 Å
Rg (real space) rg_real	24.39 Å
Rg uncertainty (real space) rg_real_error	0.54 Å
I(0) (real space) i0_real	5.9100e+07
I(0) uncertainty (real space) i0_real_error	7.9540e+05
Rg (reciprocal space) rg_reciprocal	24.40 Å
I(0) (reciprocal space) i0_reciprocal	59100000.0000
Solution quality estimate total_estimate	0.8659
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	29.0 Å
Skewness Skewness skewness	0.384
Kurtosis Kurtosis kurtosis	-0.109
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12830000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.762; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.978

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Pancreatic alpha-amylase
Molecular weight formula_weight	55439.8 kDa
EC 编号 ec_number	3.2.1.1
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	9278

QYAPQTQSGRTSIVHLFEWRWVDIALECERYLGPKGFGGVQVSPPNENIVVTNPSRPWWERYQPVSYKLCTRSGNENEFRDMVTRCNNVGVRIYVDAVINHMCGSGAAAGTGTTCGSYCNPGNREFPAVPYSAWDFNDGKCKTASGGIESYNDPYQVRDCQLVGLLDLALEKDYVRSMIADYLNKLIDIGVAGFRIDASKHMWPGDIKAVLDKLHNLNTNWFPAGSRPFIFQEVIDLGGEAIQSSEYFGNGRVTEFKYGAKLGTVVRKWSGEKMSYLKNWGEGWGFMPSDRALVFVDNHDNQRGHGAGGASILTFWDARLYKVAVGFMLAHPYGFTRVMSSYRWARNFVNGQDVNDWIGPPNNNGVIKEVTINADTTCGNDWVCEHRWRQIRNMVWFRNVVDGQPFANWWDNGSNQVAFGRGNRGFIVFNNDDWQLSSTLQTGLPGGTYCDVISGDKVGNSCTGIKVYVSSDGTAQFSISNSAEDPFIAIHAESKL

Entity 2 Entity 2 branched

Description description	Cyclohexakis-(1-4)-(alpha-D-glucopyranose)
Molecular weight formula_weight	990.9 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	592

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3l2ma1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.8 — (Trans)glycosidases
Family Family family	c.1.8.1 — Amylase, catalytic domain

Domain ID domain_id	d3l2ma2
Class class	b — All beta proteins
Fold Fold fold	b.71 — Glycosyl hydrolase domain
Superfamily Superfamily superfamily	b.71.1 — Glycosyl hydrolase domain
Family Family family	b.71.1.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	3l2mA01
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	80 — Glycosidases

Domain ID domain_id	3l2mA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1180 — Golgi alpha-mannosidase II

▶

8. Citations (3)

▶

Unit-cell length a length_a	70.650 Å
Unit-cell length b length_b	114.880 Å
Unit-cell length c length_c	118.850 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.970 Å
Low-resolution limit resolution_low	29.300 Å
R factor r_factor	0.1300
R_work r_work	0.1267
R_free r_free	0.1602

fit	/app/data/saxs_computation/l2/3l2m/3l2m.fit
pddf	/app/data/pr_computation/l2/3l2m/3l2m.pr.out
profile	/app/data/saxs_computation/l2/3l2m/3l2m.dat
