1l1l

CRYSTAL STRUCTURE OF B-12 DEPENDENT (CLASS II) RIBONUCLEOTIDE REDUCTASE

Method: X-RAY DIFFRACTION D_max: 180.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

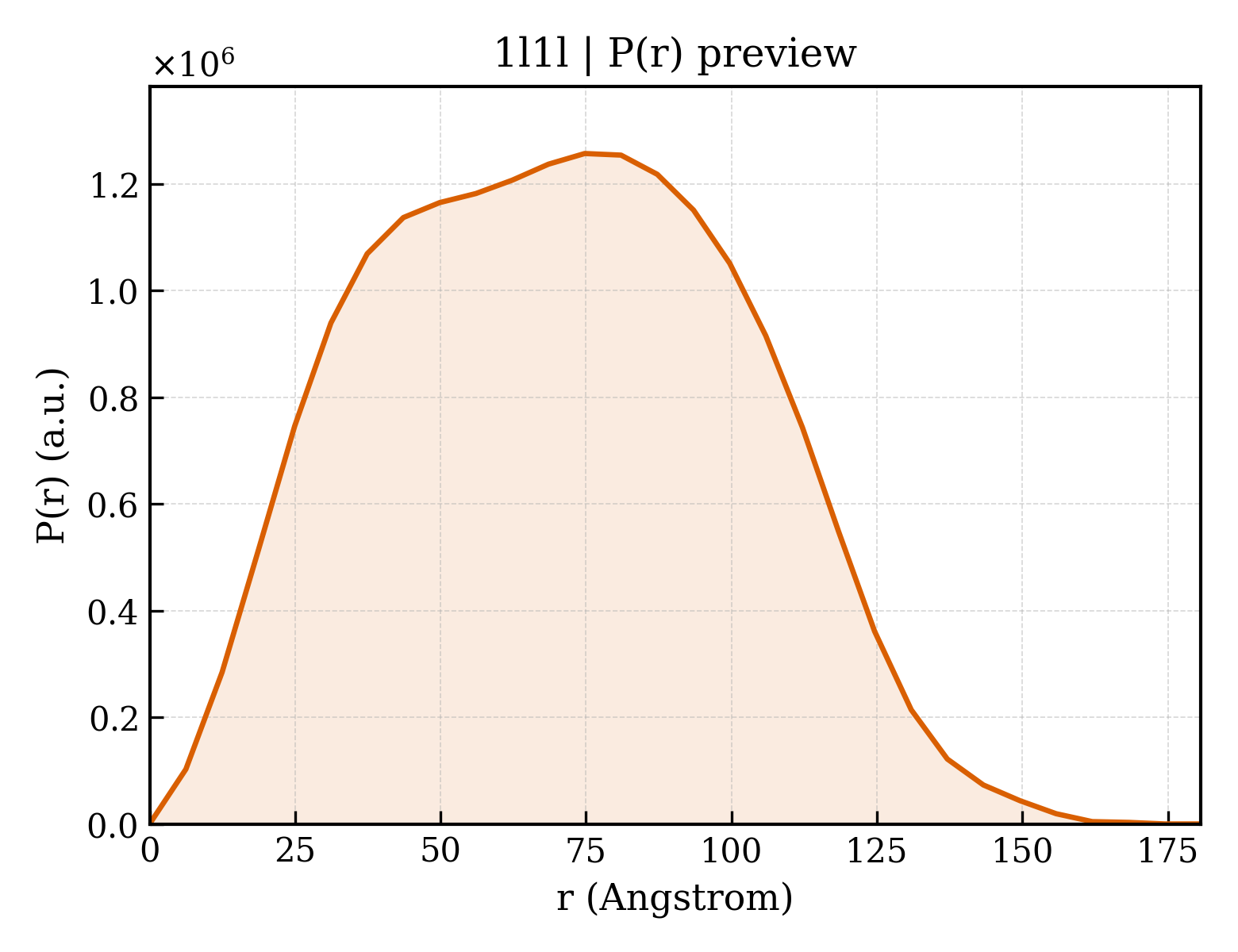

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l1l
沉积日期 deposition_date	2002-02-18
结构标题 title	CRYSTAL STRUCTURE OF B-12 DEPENDENT (CLASS II) RIBONUCLEOTIDE REDUCTASE
关键词 keywords	10-stranded alpha-beta barrel, central finger loop, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.41 Å
回转半径 Rg (电子) rg_electron	54.21 Å
零角强度 I(0) i0	1453550000.00
分子量 molecular_weight	316900.0 kDa
排除体积 excluded_volume	395560 Å³
包络体积 envelope_volume	567690 Å³
水化壳体积 shell_volume	87457 Å³
包络直径 envelope_diameter	179.7 Å
壳层 Rg shell_rg	57.17 Å
包络 Rg envelope_rg	53.03 Å
形状 Rg shape_rg	54.22 Å
总 Rg total_rg	54.28 Å
总原子数 total_atoms	22352
残基数 n_residues	2868
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	180.7 Å
Rg (实空间) rg_real	54.30 Å
Rg 误差 (实空间) rg_real_error	1.97 Å
I(0) (实空间) i0_real	1.4540e+09
I(0) 误差 (实空间) i0_real_error	2.8500e+07
Rg (倒空间) rg_reciprocal	54.48 Å
I(0) (倒空间) i0_reciprocal	1454000000.0000
解质量估计 total_estimate	0.8848
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	74.8 Å
偏度 Skewness skewness	0.112
峰度 Kurtosis kurtosis	-0.719
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	137300000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.854

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	RIBONUCLEOSIDE TRIPHOSPHATE REDUCTASE
分子量 formula_weight	82071.0 kDa
EC 编号 ec_number	1.17.4.2
突变 mutation	C731/736S
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	25227

MSEEISLSAEFIDRVKASVKPHWGKLGWVTYKRTYARWLPEKGRSENWDETVKRVVEGNINLDPRLQDSPSLELKQSLTEEAERLYKLIYGLGATPSGRNLWISGTDYQRRTGDSLNNCWFVAIRPQKYGDSKIVPSYLGKQEKAVSMPFSFLFDELMKGGGVGFSVARSNISQIPRVDFAIDLQLVVDETSESYDASVKVGAVGKNELVQDADSIYYRLPDTREGWVLANALLIDLHFAQTNPDRKQKLILDLSDIRPYGAEIHGFGGTASGPMPLISMLLDVNEVLNNKAGGRLTAVDAADICNLIGKAVVAGNVRRSAELALGSNDDQDFISMKQDQEKLMHHRWASNNSVAVDSAFSGYQPIAAGIRENGEPGIVNLDLSKNYGRIVDGYQAGIDGDVEGTNPCGEISLANGEPCNLFEVFPLIAEEQGWDLQEVFALAARYAKRVTFSPYDWEISREIIQKNRRIGISMSGIQDWLLTRLGNRVVTGFKDDFDPETHEAIKVPVYDKRAIKMVDQLYKAVVKADQDYSKTLGCNESIKHTTVKPSGTVAKLAGASEGMHFHYGAYLIQRIRFQDSDPLLPALKACGYRTEADIYTENTTCVEFPIKAVGADNPNFASAGTVSIAEQFATQAFLQTYWSDNAVSCTITFQDSEGDQVESLLRQYRFITKSTSLLPYFGGSLQQAPKEPIDKETYEKRSQEITGNVEEVFSQLNSDVKDLELVDQTDCEGGACPIK

来源 Source

来源生物 organism	Lactobacillus leichmannii
NCBI 分类编号 ncbi_taxonomy_id	28039
宿主生物 host_organism	Escherichia coli

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2875

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1l1la_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.7 — PFL-like glycyl radical enzymes
超家族 Superfamily superfamily	c.7.1 — PFL-like glycyl radical enzymes
家族 Family family	c.7.1.4 — B12-dependent (class II) ribonucleotide reductase

结构域编号 domain_id	d1l1lb_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.7 — PFL-like glycyl radical enzymes
超家族 Superfamily superfamily	c.7.1 — PFL-like glycyl radical enzymes
家族 Family family	c.7.1.4 — B12-dependent (class II) ribonucleotide reductase

结构域编号 domain_id	d1l1lc_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.7 — PFL-like glycyl radical enzymes
超家族 Superfamily superfamily	c.7.1 — PFL-like glycyl radical enzymes
家族 Family family	c.7.1.4 — B12-dependent (class II) ribonucleotide reductase

结构域编号 domain_id	d1l1ld_
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.7 — PFL-like glycyl radical enzymes
超家族 Superfamily superfamily	c.7.1 — PFL-like glycyl radical enzymes
家族 Family family	c.7.1.4 — B12-dependent (class II) ribonucleotide reductase

CATH v4.4 (12 domains)

结构域编号 domain_id	1l1lA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1l1lA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1620 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2

结构域编号 domain_id	1l1lA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1390 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3

结构域编号 domain_id	1l1lB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1l1lB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1620 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2

结构域编号 domain_id	1l1lB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1390 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3

结构域编号 domain_id	1l1lC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1l1lC02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1620 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2

结构域编号 domain_id	1l1lC03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1390 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3

结构域编号 domain_id	1l1lD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	20 — Alpha-Beta Barrel
拓扑 Topology topology	70 — Anaerobic Ribonucleotide-triphosphate Reductase Large Chain
同源超家族 H-superfamily homologous superfamily	20 —

结构域编号 domain_id	1l1lD02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	1620 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, Chain A, Domain 2

结构域编号 domain_id	1l1lD03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	90 — Alpha-Beta Complex
拓扑 Topology topology	1390 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3
同源超家族 H-superfamily homologous superfamily	10 — b-12 dependent (class ii) ribonucleotide reductase, chain A, domain 3

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	120.500 Å
晶胞边长 b length_b	114.700 Å
晶胞边长 c length_c	121.300 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.20 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.750 Å
最低分辨率 resolution_low	30.000 Å
R 因子 r_factor	—
R_work r_work	0.2230
R_free r_free	0.2660
