Tomato yellow leaf curl Sardinia virus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | VAL1_TYLCS |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–118； UniProt 4–121 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1l2m |
| Deposition date deposition_date | 2002-02-22 |
| Structure title title | Minimized Average Structure of the N-terminal, DNA-binding domain of the replication initiation protein from a geminivirus (Tomato yellow leaf curl virus-Sardinia) |
| Keywords keywords | a+b fold, RBD-like fold, Viral protein; VIRAL PROTEIN |
| Experimental Method method | SOLUTION NMR |

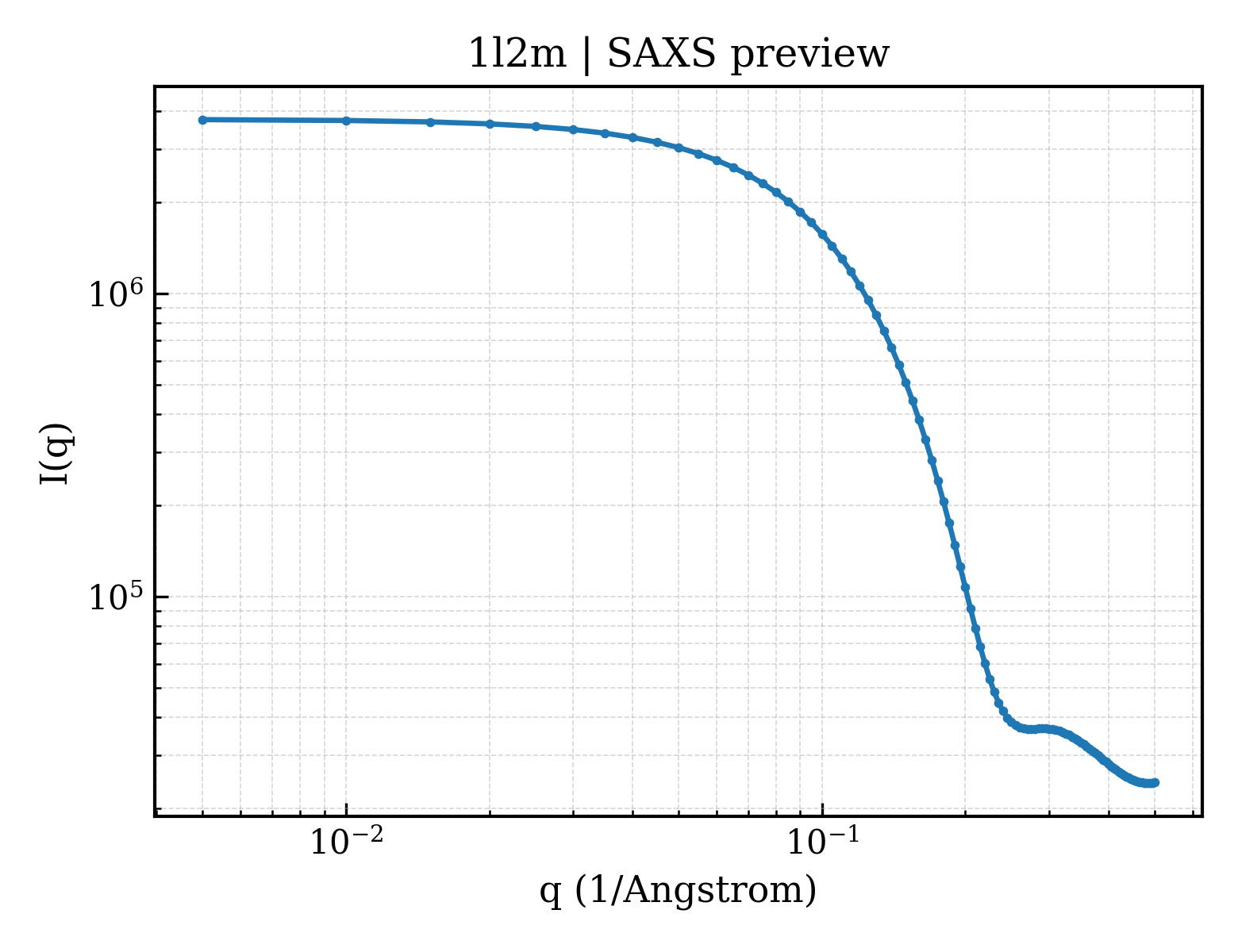

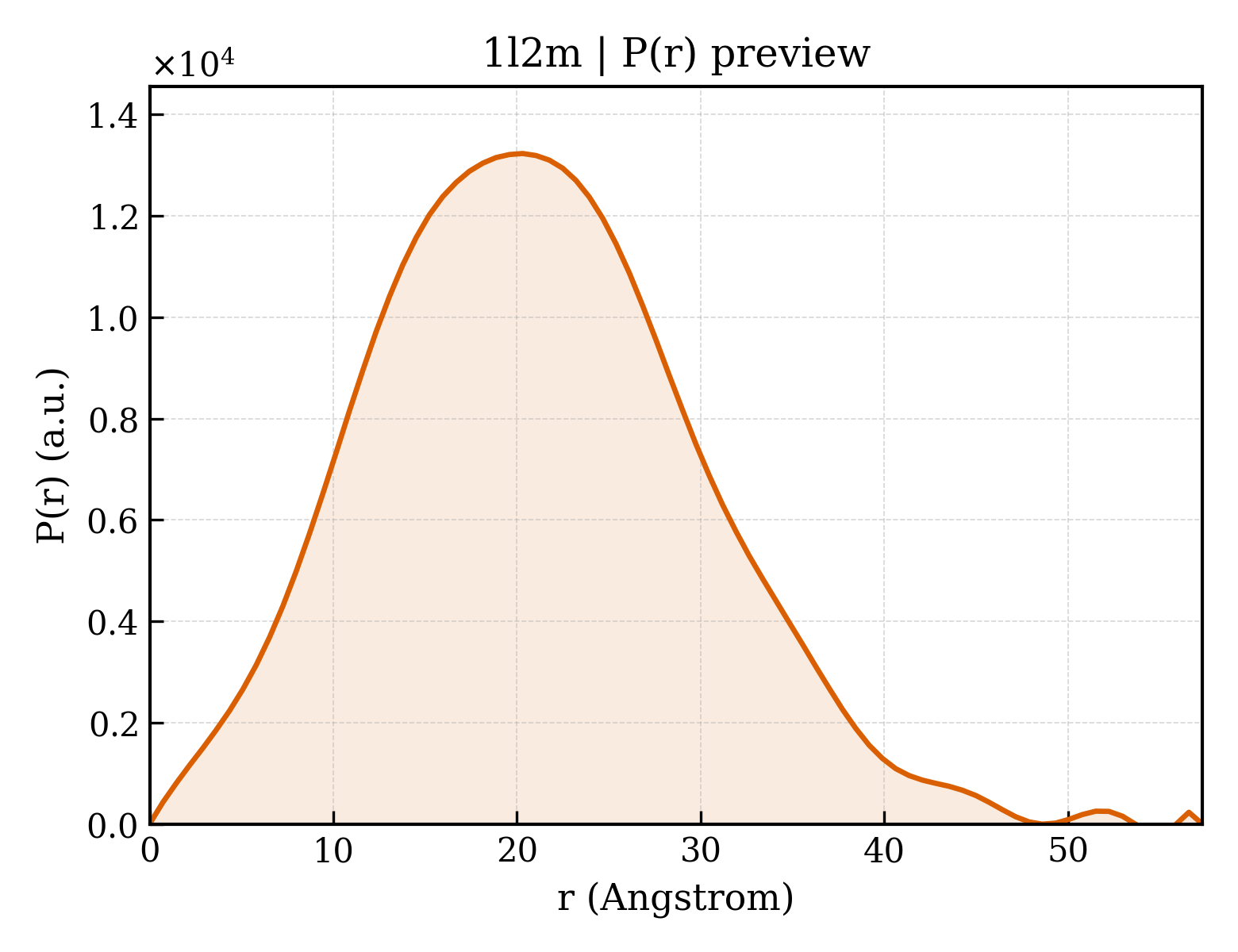

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.07 Å |
| Rg (electron density) | 14.32 Å |
| Total Rg | 15.70 Å |
| Atom count | 1894 |
| Residues | 118 |
| Excluded volume | 16925 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1l2ma_ |
| Class class | d — Alpha and beta proteins (a+b) |
| Fold Fold fold | d.89 — Origin of replication-binding domain, RBD-like |
| Superfamily Superfamily superfamily | d.89.1 — Origin of replication-binding domain, RBD-like |
| Family Family family | d.89.1.4 — DNA-binding domain of REP protein |
| Domain ID domain_id | 1l2mA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 1310 — Replication Protein E1; Chain: A, |
| Homologous superfamily homologous superfamily | 20 — |
