1l3l

Crystal structure of a bacterial quorum-sensing transcription factor complexed with pheromone and DNA

Method: X-RAY DIFFRACTION D_max: 155.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1l3l
沉积日期 deposition_date	2002-02-27
结构标题 title	Crystal structure of a bacterial quorum-sensing transcription factor complexed with pheromone and DNA
关键词 keywords	helix-turn-helix DNA binding motif, alpha/beta/alpha sandwich, asymmetry of the protein-DNA complex, TRANSCRIPTION-DNA COMPLEX; TRANSCRIPTION/DNA
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.09 Å
回转半径 Rg (电子) rg_electron	44.12 Å
零角强度 I(0) i0	321045000.00
分子量 molecular_weight	130370.0 kDa
排除体积 excluded_volume	155750 Å³
包络体积 envelope_volume	218680 Å³
水化壳体积 shell_volume	43938 Å³
包络直径 envelope_diameter	154.6 Å
壳层 Rg shell_rg	45.12 Å
包络 Rg envelope_rg	43.44 Å
形状 Rg shape_rg	44.11 Å
总 Rg total_rg	44.19 Å
总原子数 total_atoms	9028
残基数 n_residues	974
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

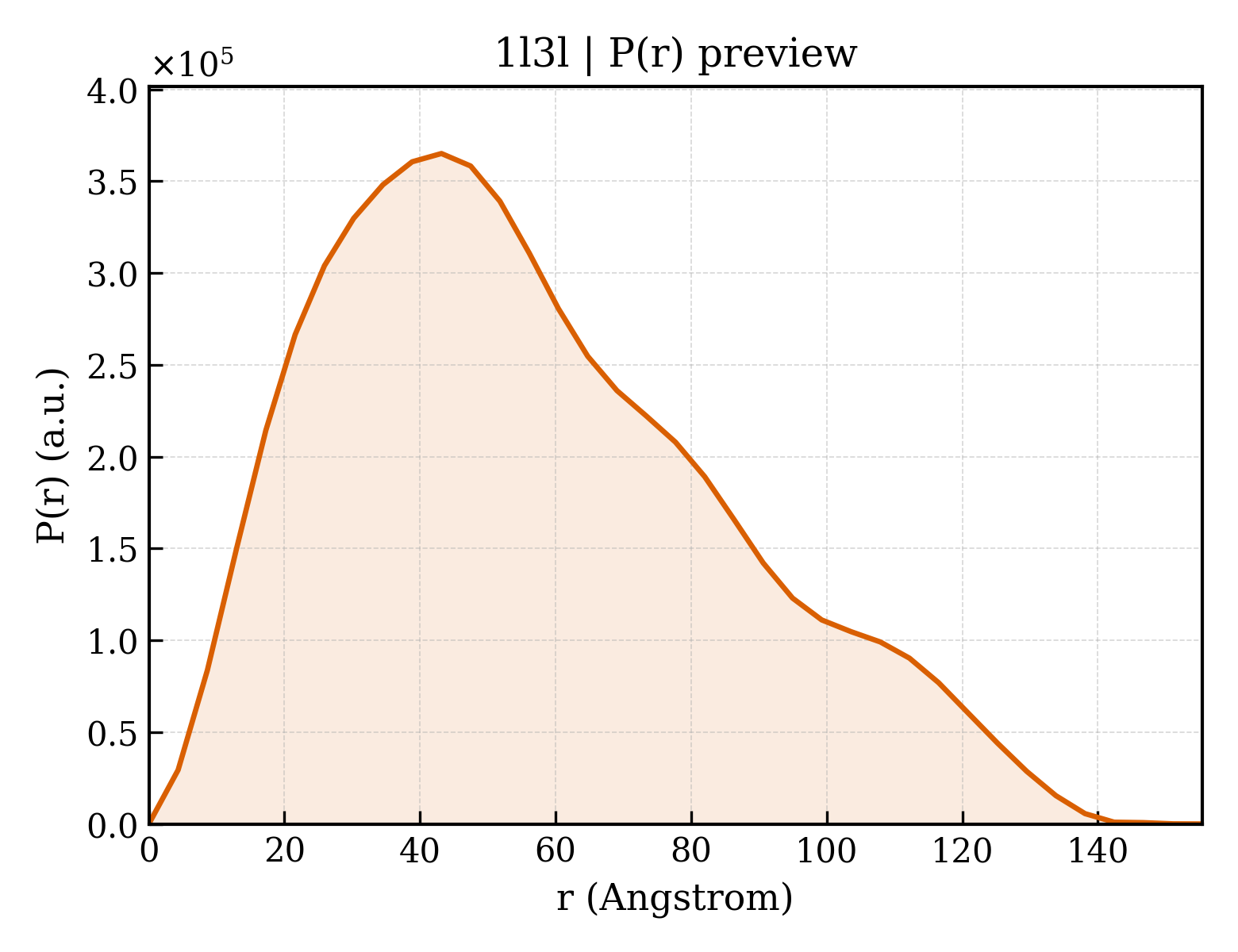

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	155.4 Å
Rg (实空间) rg_real	44.59 Å
Rg 误差 (实空间) rg_real_error	2.27 Å
I(0) (实空间) i0_real	3.2100e+08
I(0) 误差 (实空间) i0_real_error	5.9090e+06
Rg (倒空间) rg_reciprocal	44.10 Å
I(0) (倒空间) i0_reciprocal	320900000.0000
解质量估计 total_estimate	0.8060
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	43.2 Å
偏度 Skewness skewness	0.540
峰度 Kurtosis kurtosis	-0.409
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11980000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.701; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.662; Smooth: 0.710

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	5'-D(GPAPTPGPTPGPCPAPGPAPTPCPTPGPCPAPCPAPTPC)-3'
分子量 formula_weight	6134.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polydeoxyribonucleotide
链编号 strand_id	E,F,G,H
原子数 atom_count	9942

GATGTGCAGATCTGCACATC

Entity 2 polymer

描述 description	Transcriptional activator protein traR
分子量 formula_weight	27060.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D

MQHWLDKLTDLAAIEGDECILKTGLADIADHFGFTGYAYLHIQHRHITAVTNYHRQWQSTYFDKKFEALDPVVKRARSRKHIFTWSGEHERPTLSKDERAFYDHASDFGIRSGITIPIKTANGFMSMFTMASDKPVIDLDREIDAVAAAATIGQIHARISFLRTTPTAEDAAWLDPKEATYLRWIAVGKTMEEIADVEGVKYNSVRVKLREAMKRFDVRSKAHLTALAIRRKLI

来源 Source

来源生物 organism	Agrobacterium tumefaciens
NCBI 分类编号 ncbi_taxonomy_id	358
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	3-OXO-OCTANOIC ACID (2-OXO-TETRAHYDRO-FURAN-3-YL)-AMIDE
分子量 formula_weight	241.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	914

▼

6. 折叠分类 (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

结构域编号 domain_id	d1l3la1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
家族 Family family	a.4.6.2 — GerE-like (LuxR/UhpA family of transcriptional regulators)

结构域编号 domain_id	d1l3la2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.110 — Profilin-like
超家族 Superfamily superfamily	d.110.5 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors
家族 Family family	d.110.5.1 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors

结构域编号 domain_id	d1l3lb1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
家族 Family family	a.4.6.2 — GerE-like (LuxR/UhpA family of transcriptional regulators)

结构域编号 domain_id	d1l3lb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.110 — Profilin-like
超家族 Superfamily superfamily	d.110.5 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors
家族 Family family	d.110.5.1 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors

结构域编号 domain_id	d1l3lc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
家族 Family family	a.4.6.2 — GerE-like (LuxR/UhpA family of transcriptional regulators)

结构域编号 domain_id	d1l3lc2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.110 — Profilin-like
超家族 Superfamily superfamily	d.110.5 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors
家族 Family family	d.110.5.1 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors

结构域编号 domain_id	d1l3ld1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.4 — DNA/RNA-binding 3-helical bundle
超家族 Superfamily superfamily	a.4.6 — C-terminal effector domain of the bipartite response regulators
家族 Family family	a.4.6.2 — GerE-like (LuxR/UhpA family of transcriptional regulators)

结构域编号 domain_id	d1l3ld2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.110 — Profilin-like
超家族 Superfamily superfamily	d.110.5 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors
家族 Family family	d.110.5.1 — Pheromone-binding domain of LuxR-like quorum-sensing transcription factors

CATH v4.4 (8 domains)

结构域编号 domain_id	1l3lA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	80 — Transcription factor LuxR-like, autoinducer-binding domain

结构域编号 domain_id	1l3lA02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	1l3lB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	80 — Transcription factor LuxR-like, autoinducer-binding domain

结构域编号 domain_id	1l3lB02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	1l3lC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	80 — Transcription factor LuxR-like, autoinducer-binding domain

结构域编号 domain_id	1l3lC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

结构域编号 domain_id	1l3lD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	30 — 2-Layer Sandwich
拓扑 Topology topology	450 — Beta-Lactamase
同源超家族 H-superfamily homologous superfamily	80 — Transcription factor LuxR-like, autoinducer-binding domain

结构域编号 domain_id	1l3lD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	10 — Arc Repressor Mutant, subunit A
同源超家族 H-superfamily homologous superfamily	10 — Winged helix-like DNA-binding domain superfamily/Winged helix DNA-binding domain

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	92.298 Å
晶胞边长 b length_b	58.370 Å
晶胞边长 c length_c	127.453 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	102.81 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.660 Å
最低分辨率 resolution_low	39.600 Å
R 因子 r_factor	—
R_work r_work	0.2460
R_free r_free	0.2660

fit	/app/data/saxs_computation/l3/1l3l/1l3l.fit
pddf	/app/data/pr_computation/l3/1l3l/1l3l.pr.out
profile	/app/data/saxs_computation/l3/1l3l/1l3l.dat
