1. Protein Identity and Related Structures Protein Identity & Related Structures

L-3-phosphoserine phosphatase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	D-2-AMINO-3-PHOSPHONO-PROPIONIC ACID × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SERB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–225； UniProt 1–225 Author chain B； PDBConstruct 1–225； UniProt 1–225

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1l8l
Deposition date deposition_date	2002-03-21
Structure title title	Molecular basis for the local confomational rearrangement of human phosphoserine phosphatase
Keywords keywords	phosphatase, conformational rearrangement, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1l8l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1l8l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

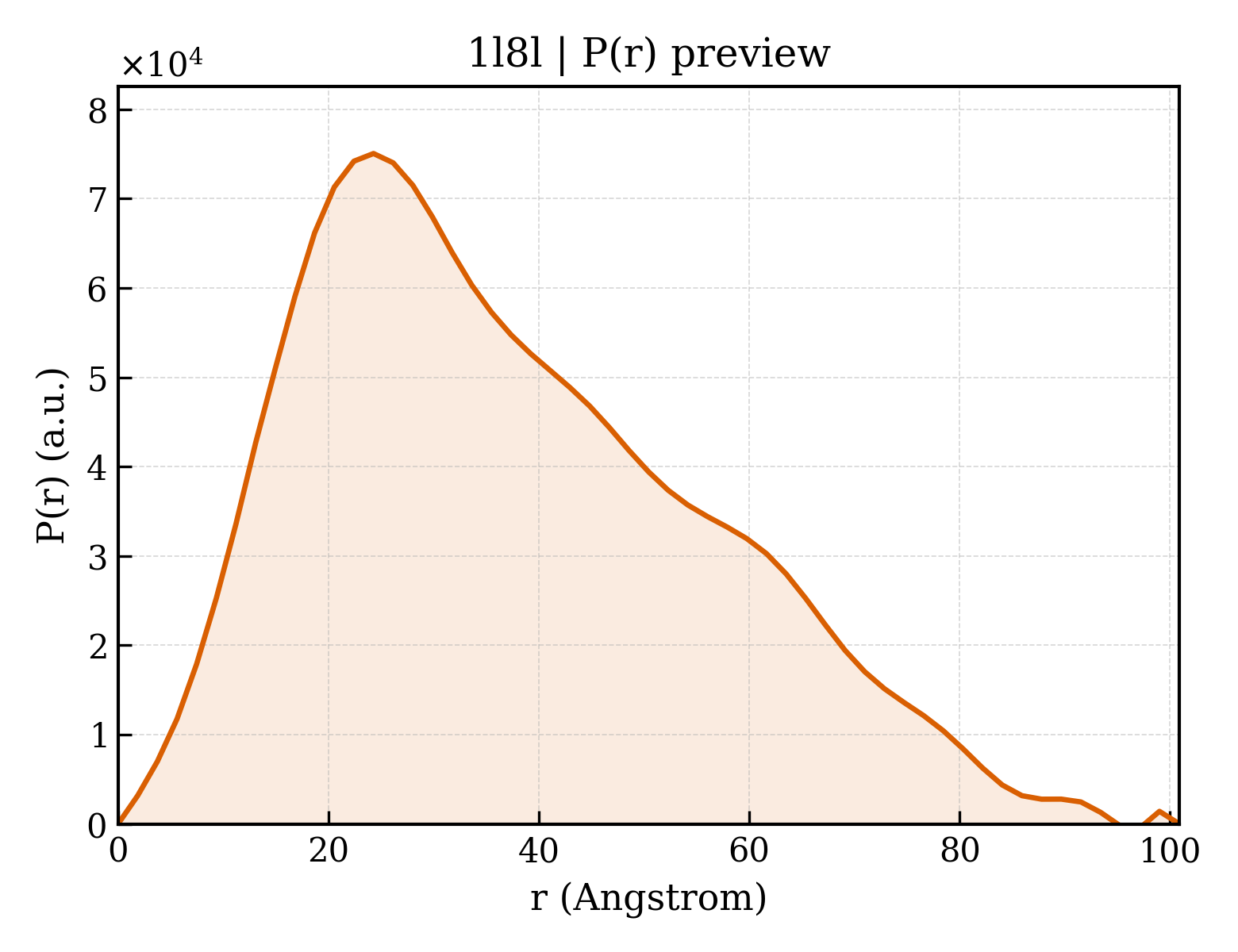

1l8l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.10 Å
Rg (electron density)	28.80 Å
Total Rg	29.33 Å
Atom count	3493
Residues	444
Excluded volume	62236 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1l8l__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1l8la_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.4 — Phosphoserine phosphatase

Domain ID domain_id	d1l8lb_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.108 — HAD-like
Superfamily Superfamily superfamily	c.108.1 — HAD-like
Family Family family	c.108.1.4 — Phosphoserine phosphatase

CATH v4.4 (4 domains)

Domain ID domain_id	1l8lA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1l8lA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	210 — Phosphoserine phosphatase; domain 2

Domain ID domain_id	1l8lB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1000 — HAD superfamily/HAD-like

Domain ID domain_id	1l8lB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	150 — DNA polymerase; domain 1
Homologous superfamily homologous superfamily	210 — Phosphoserine phosphatase; domain 2

▶

Unit-cell length a length_a	106.213 Å
Unit-cell length b length_b	106.213 Å
Unit-cell length c length_c	87.812 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4
Space-group number int_tables_number	79
Crystal system crystal_system	—

Resolution resolution	2.510 Å
Low-resolution limit resolution_low	41.780 Å
R factor r_factor	0.2130
R_work r_work	0.2130
R_free r_free	0.2840

Description description	L-3-phosphoserine phosphatase
Molecular weight formula_weight	25086.7 kDa
EC 编号 ec_number	3.1.3.3
Mutation mutation	L164F
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3493

Molecular basis for the local confomational rearrangement of human phosphoserine phosphatase

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-3-phosphoserine phosphatase

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1l8l__assembly_1__model_1

1l8l__assembly_1__model_1 | I(q)

1l8l__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Description description	D-2-AMINO-3-PHOSPHONO-PROPIONIC ACID
Molecular weight formula_weight	169.1 kDa
Source method src_method	syn
Copy count entity_count	2
