Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | No other associated polymer | Consistent with protein count |
| UniProt name | UBF1_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 2–83； UniProt 479–560 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1l8z |
| Deposition date deposition_date | 2002-03-22 |
| Structure title title | Solution structure of HMG box 5 in human upstream binding factor |
| Keywords keywords | hUBF, HMG box 5, DNA binding domain, DNA BINDING PROTEIN; DNA BINDING PROTEIN |
| Experimental Method method | SOLUTION NMR |

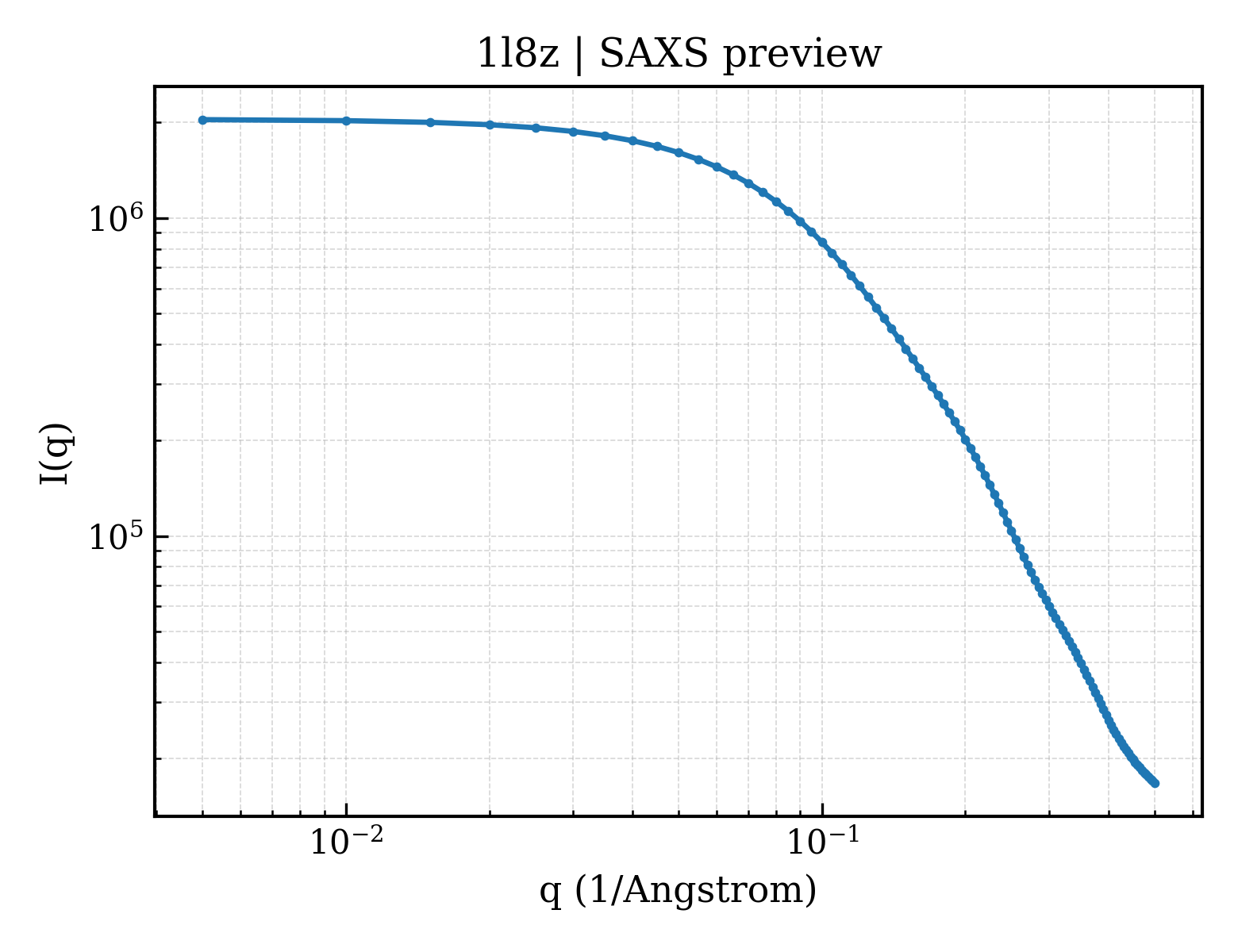

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 16.96 Å |
| Rg (electron density) | 16.80 Å |
| Total Rg | 17.52 Å |
| Atom count | 1401 |
| Residues | 84 |
| Excluded volume | 12380 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1l8za1 |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.21 — HMG-box |
| Superfamily Superfamily superfamily | a.21.1 — HMG-box |
| Family Family family | a.21.1.1 — HMG-box |
| Domain ID domain_id | d1l8za2 |
| Class class | l — Artifacts |
| Fold Fold fold | l.1 — Tags |
| Superfamily Superfamily superfamily | l.1.1 — Tags |
| Family Family family | l.1.1.1 — Tags |
| Domain ID domain_id | 1l8zA00 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 30 — DNA Binding (I), subunit A |
| Homologous superfamily homologous superfamily | 10 — High mobility group box domain |
