Aquifex aeolicus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Y1575_AQUAE |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–249； UniProt 1–249 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1lfp |
| Deposition date deposition_date | 2002-04-11 |
| Structure title title | Crystal Structure of a Conserved Hypothetical Protein Aq1575 from Aquifex Aeolicus |
| Keywords keywords | ;Hypothetical, New fold, thermostability, Structural Genomics, BSGC structure funded by NIH, Protein Structure Initiative, PSI, Berkeley Structural Genomics Center, RNA BINDING PROTEIN ;; RNA BINDING PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

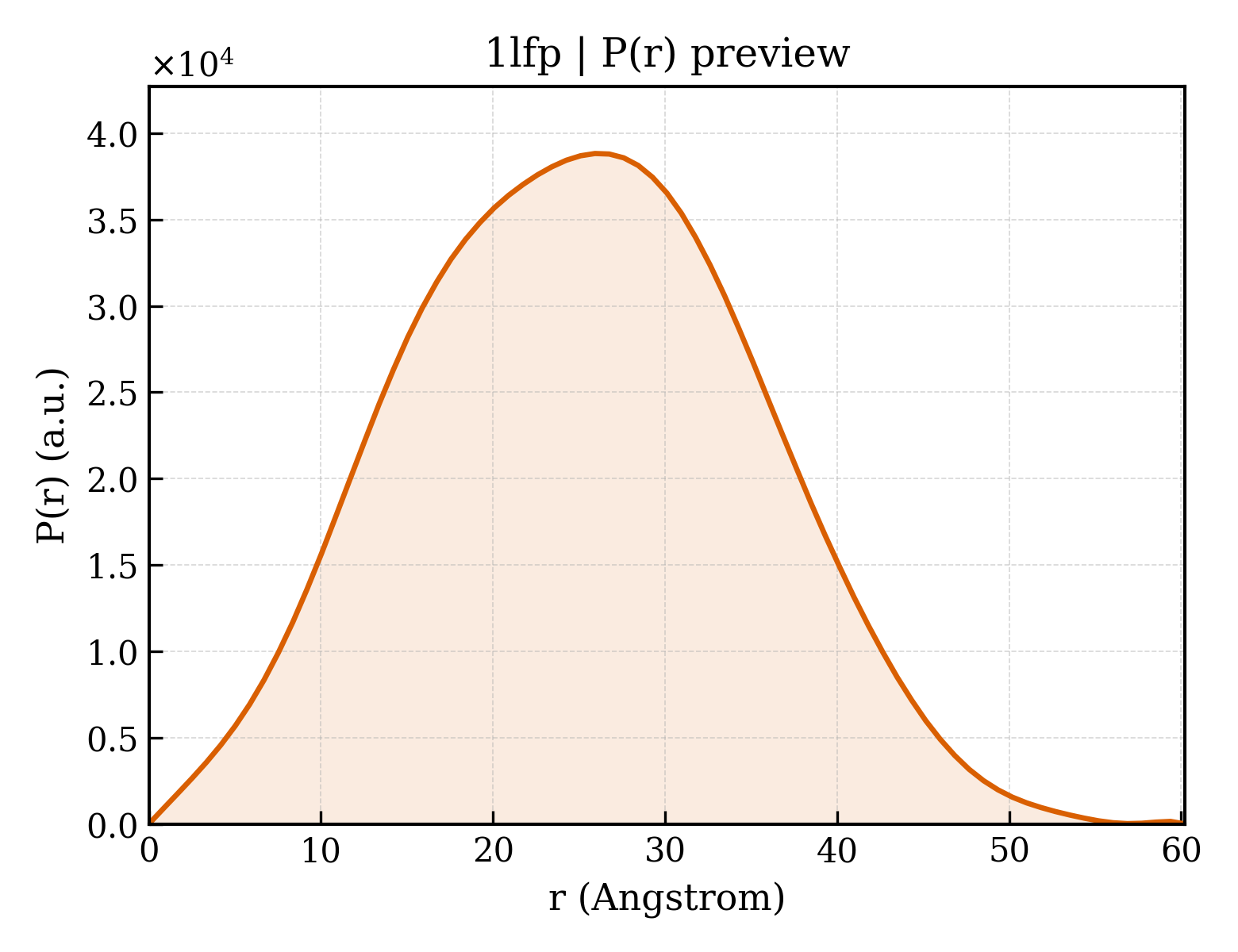

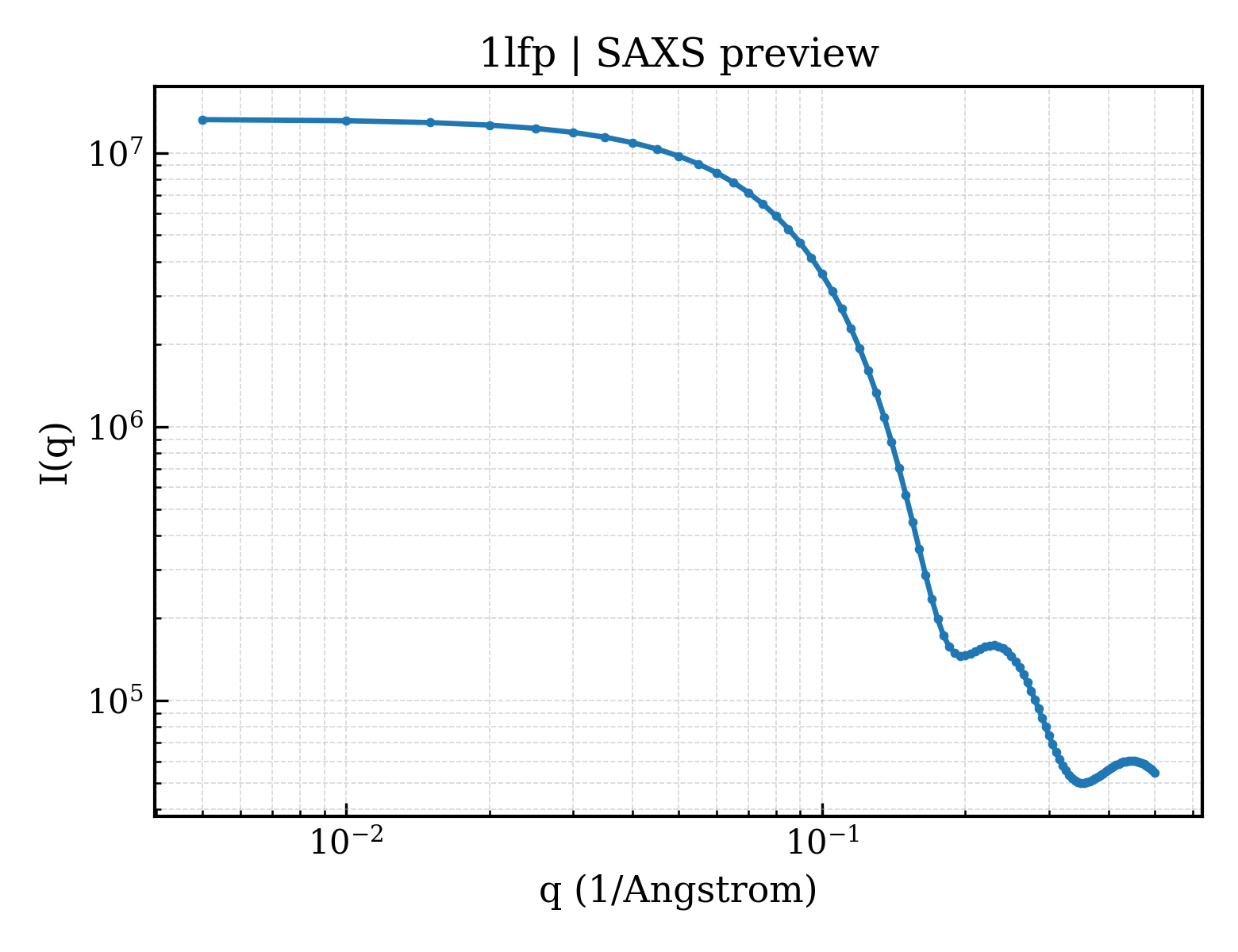

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 19.27 Å |
| Rg (electron density) | 18.11 Å |
| Total Rg | 19.02 Å |
| Atom count | 1925 |
| Residues | 241 |
| Excluded volume | 34386 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1lfpa_ |
| Class class | e — Multi-domain proteins (alpha and beta) |
| Fold Fold fold | e.39 — YebC-like |
| Superfamily Superfamily superfamily | e.39.1 — YebC-like |
| Family Family family | e.39.1.1 — YebC-like |
| Domain ID domain_id | 1lfpA01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 10 — Orthogonal Bundle |
| Topology topology | 10 — Arc Repressor Mutant, subunit A |
| Homologous superfamily homologous superfamily | 200 — Integrase, N-terminal zinc-binding domain |
| Domain ID domain_id | 1lfpA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 70 — Alpha-Beta Plaits |
| Homologous superfamily homologous superfamily | 980 — YebC, transcriptional regulation domain |
| Domain ID domain_id | 1lfpA03 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 30 — 2-Layer Sandwich |
| Topology topology | 70 — Alpha-Beta Plaits |
| Homologous superfamily homologous superfamily | 980 — YebC, transcriptional regulation domain |
