SAXSdb — 1li7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CYSTEINYL-TRNA SYNTHETASE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 1 CYSTEINE × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	ZINC ION × 1 CYSTEINE × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SYC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–461； UniProt 1–461 Author chain B； PDBConstruct 1–461； UniProt 1–461

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1li7
Deposition date deposition_date	2002-04-17
Structure title title	Crystal Structure of Cysteinyl-tRNA Synthetase with Cysteine Substrate Bound
Keywords keywords	TRNA SYNTHETASE, CYSTEINE, E.COLI, LIGASE; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1li7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1li7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

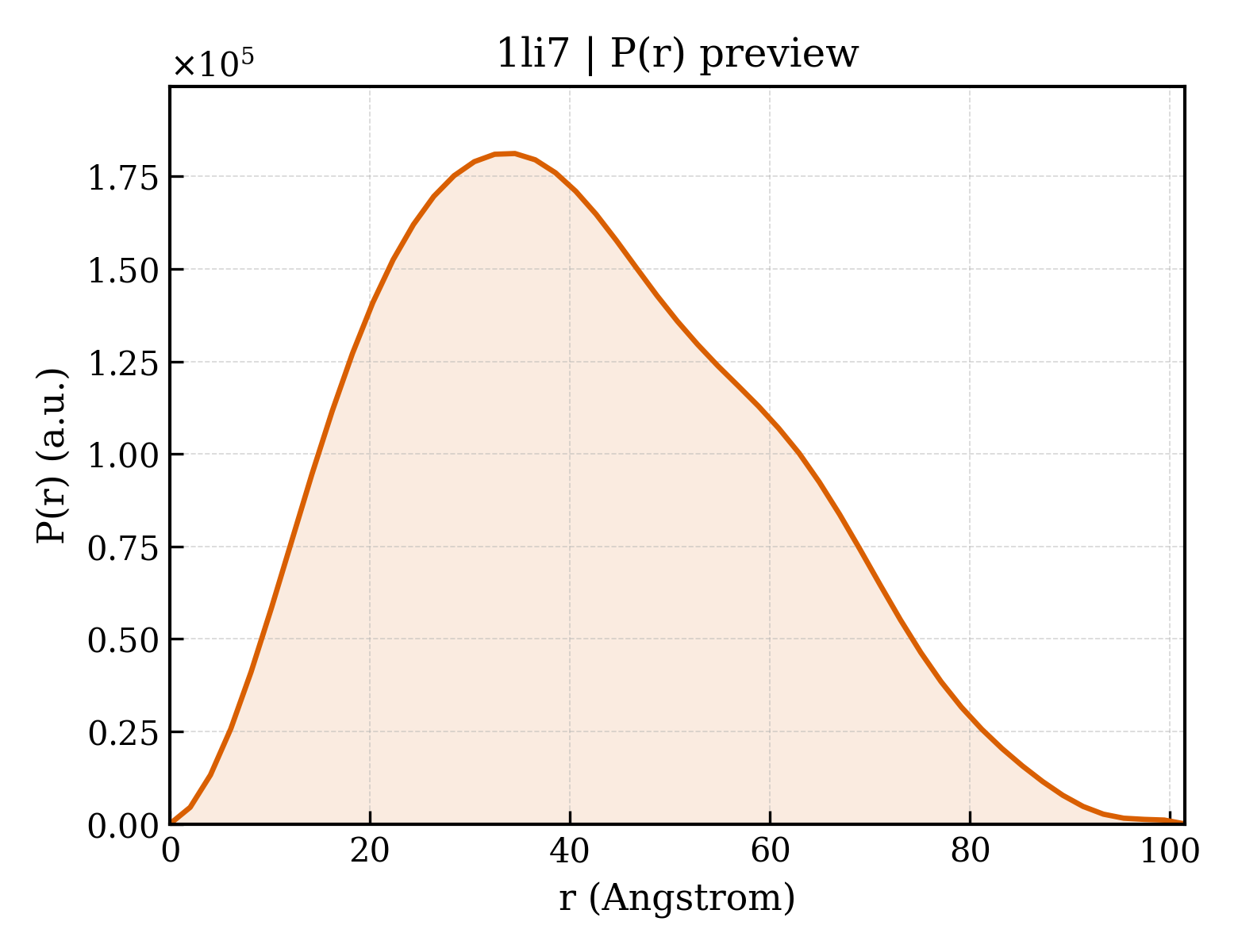

1li7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.11 Å
Rg (electron density)	22.34 Å
Total Rg	23.05 Å
Atom count	2969
Residues	386
Excluded volume	52248 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1li7__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1li7__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CYSTEINYL-TRNA SYNTHETASE
Molecular weight formula_weight	52271.1 kDa
EC 编号 ec_number	6.1.1.16
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5827

MLKIFNTLTRQKEEFKPIHAGEVGMYVCGITVYDLCHIGHGRTFVAFDVVARYLRFLGYKLKYVRNITDIDDKIIKRANENGESFVAMVDRMIAEMHKDFDALNILRPDMEPRATHHIAEIIELTEQLIAKGHAYVADNGDVMFDVPTDPTYGVLSRQDLDQLQAGARVDVVDDKRNPMDFVLWKMSKEGEPSWPSPWGAGRPGWHIECSAMNCKQLGNHFDIHGGGSDLMFPHHENEIAQSTCAHDGQYVNYWMHSGMVMVDREKMSKSLGNFFTVRDVLKYYDAETVRYFLMSGHYRSQLNYSEENLKQARAALERLYTALRGTDKTVAPAGGEAFEARFIEAMDDDFNTPEAYSVLFDMAREVNRLKAEDMAAANAMASHLRKLSAVLGLLEQEPEAFLQSGAQADDSEVAEIEALIQQRLDARKAKDWAAADAARDRLNEMGIVLEDGPQGTTWRRK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CYSTEINE
Molecular weight formula_weight	121.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	71

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1li7a1
Class class	a — All alpha proteins
Fold Fold fold	a.27 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
Superfamily Superfamily superfamily	a.27.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
Family Family family	a.27.1.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases

Domain ID domain_id	d1li7a2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

Domain ID domain_id	d1li7b1
Class class	a — All alpha proteins
Fold Fold fold	a.27 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
Superfamily Superfamily superfamily	a.27.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases
Family Family family	a.27.1.1 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases

Domain ID domain_id	d1li7b2
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.1 — Nucleotidylyl transferase
Family Family family	c.26.1.1 — Class I aminoacyl-tRNA synthetases (RS), catalytic domain

CATH v4.4 (4 domains)

Domain ID domain_id	1li7A01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1li7A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	640 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases

Domain ID domain_id	1li7B01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1li7B02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	640 — Anticodon-binding domain of a subclass of class I aminoacyl-tRNA synthetases

▶

Unit-cell length a length_a	118.980 Å
Unit-cell length b length_b	118.980 Å
Unit-cell length c length_c	143.840 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	19.950 Å
R factor r_factor	0.2510
R_work r_work	0.2500
R_free r_free	0.2900
