1llu
THE TERNARY COMPLEX OF PSEUDOMONAS AERUGINOSA ALCOHOL DEHYDROGENASE WITH ITS COENZYME AND WEAK SUBSTRATE
SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1llu |
| 沉积日期 deposition_date | 2002-04-30 |
| 结构标题 title | THE TERNARY COMPLEX OF PSEUDOMONAS AERUGINOSA ALCOHOL DEHYDROGENASE WITH ITS COENZYME AND WEAK SUBSTRATE |
| 关键词 keywords | Enzyme-coenzyme-substrate complex, proton relay system, NADH, Alcohol Dehydrogenase, OXIDOREDUCTASE; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 53.01 Å |
| 回转半径 Rg (电子) rg_electron | 53.24 Å |
| 零角强度 I(0) i0 | 1238890000.00 |
| 分子量 molecular_weight | 293040.0 kDa |
| 排除体积 excluded_volume | 366060 ų |
| 包络体积 envelope_volume | 490440 ų |
| 水化壳体积 shell_volume | 76439 ų |
| 包络直径 envelope_diameter | 177.0 Å |
| 壳层 Rg shell_rg | 56.54 Å |
| 包络 Rg envelope_rg | 51.97 Å |
| 形状 Rg shape_rg | 53.24 Å |
| 总 Rg total_rg | 53.30 Å |
| 总原子数 total_atoms | 20536 |
| 残基数 n_residues | 2728 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |

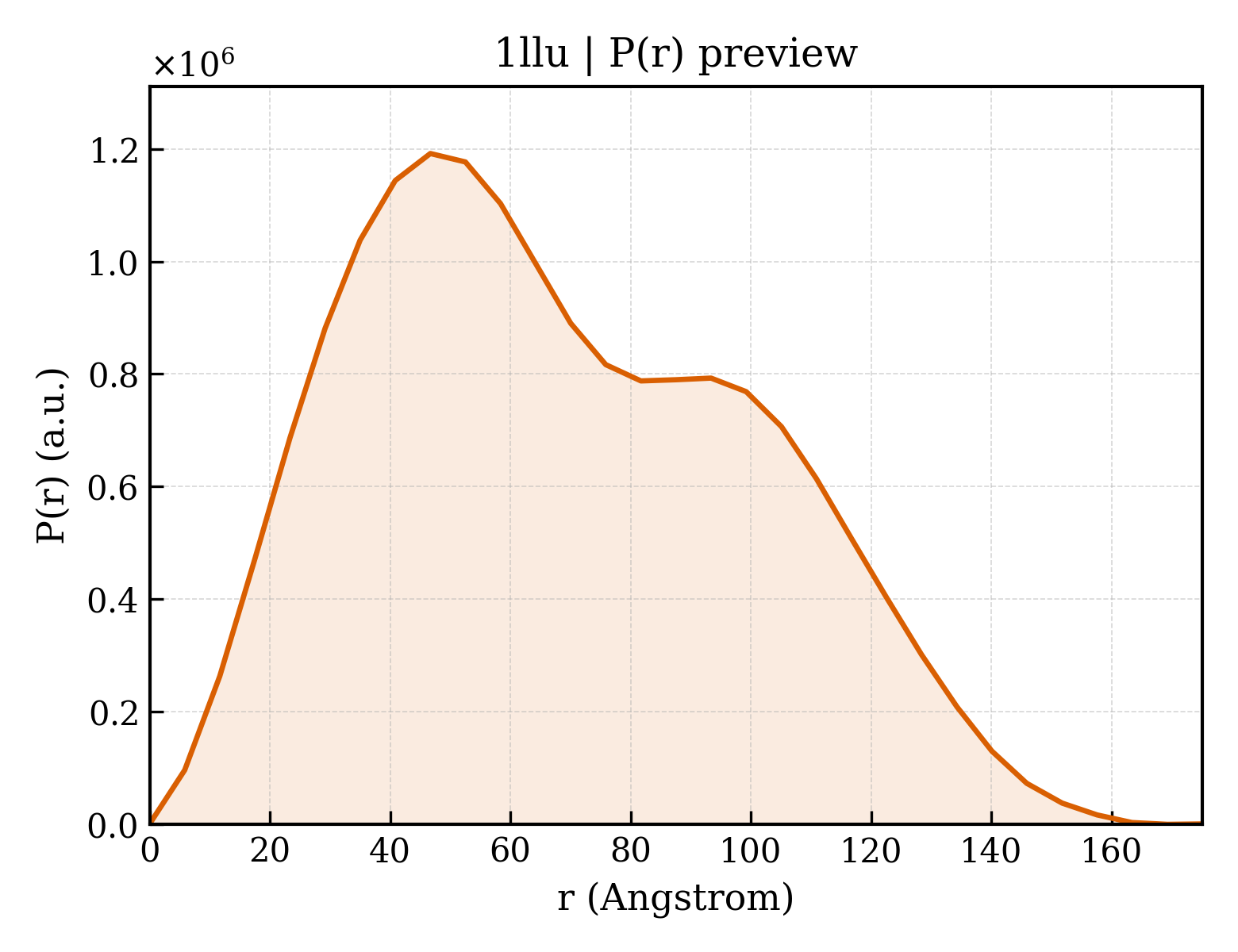

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 175.1 Å |
| Rg (实空间) rg_real | 53.17 Å |
| Rg 误差 (实空间) rg_real_error | 1.63 Å |
| I(0) (实空间) i0_real | 1.2390e+09 |
| I(0) 误差 (实空间) i0_real_error | 2.3830e+07 |
| Rg (倒空间) rg_reciprocal | 52.85 Å |
| I(0) (倒空间) i0_reciprocal | 1238000000.0000 |
| 解质量估计 total_estimate | 0.7970 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 46.7 Å |
| 偏度 Skewness skewness | 0.324 |
| 峰度 Kurtosis kurtosis | -0.742 |
| 角度范围 angular_range | — – 0.1500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 86520000.0000 |
| 实空间数据点数 n_real_points | 31 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.793; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.000 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (5)
6. 折叠分类 (SCOP + CATH) 32 domains
SCOP 2.08 (16 domains)
| 结构域编号 domain_id | d1llua1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1llua2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1llub1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1llub2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1lluc1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1lluc2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1llud1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1llud2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1llue1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1llue2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1lluf1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1lluf2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1llug1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1llug2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
| 结构域编号 domain_id | d1lluh1 |
| 类 Class class | b — All beta proteins |
| 折叠类型 Fold fold | b.35 — GroES-like |
| 超家族 Superfamily superfamily | b.35.1 — GroES-like |
| 家族 Family family | b.35.1.2 — Alcohol dehydrogenase-like, N-terminal domain |
| 结构域编号 domain_id | d1lluh2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.2 — NAD(P)-binding Rossmann-fold domains |
| 超家族 Superfamily superfamily | c.2.1 — NAD(P)-binding Rossmann-fold domains |
| 家族 Family family | c.2.1.1 — Alcohol dehydrogenase-like, C-terminal domain |
CATH v4.4 (16 domains)
| 结构域编号 domain_id | 1lluA01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluA02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluB01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluB02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluC01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluC02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluD01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluD02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluE01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluE02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluF01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluF02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluG01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluG02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
| 结构域编号 domain_id | 1lluH01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 180 — Quinone Oxidoreductase; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Medium-chain alcohol dehydrogenases, catalytic domain |
| 结构域编号 domain_id | 1lluH02 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| 拓扑 Topology topology | 50 — Rossmann fold |
| 同源超家族 H-superfamily homologous superfamily | 720 — NAD(P)-binding Rossmann-like Domain |
