OrganismNot specified
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | FE (II) ION × 1 water × 1 | Consistent with protein count |
| UniProt name | LOX3_SOYBN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–857； UniProt 1–857 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1lnh |
| Deposition date deposition_date | 1996-03-29 |
| Structure title title | LIPOXYGENASE-3(SOYBEAN) NON-HEME FE(II) METALLOPROTEIN |
| Keywords keywords | OXIDOREDUCTASE, METALLOPROTEIN, FE(II) COMPLEX; OXIDOREDUCTASE |
| Experimental Method method | X-RAY DIFFRACTION |

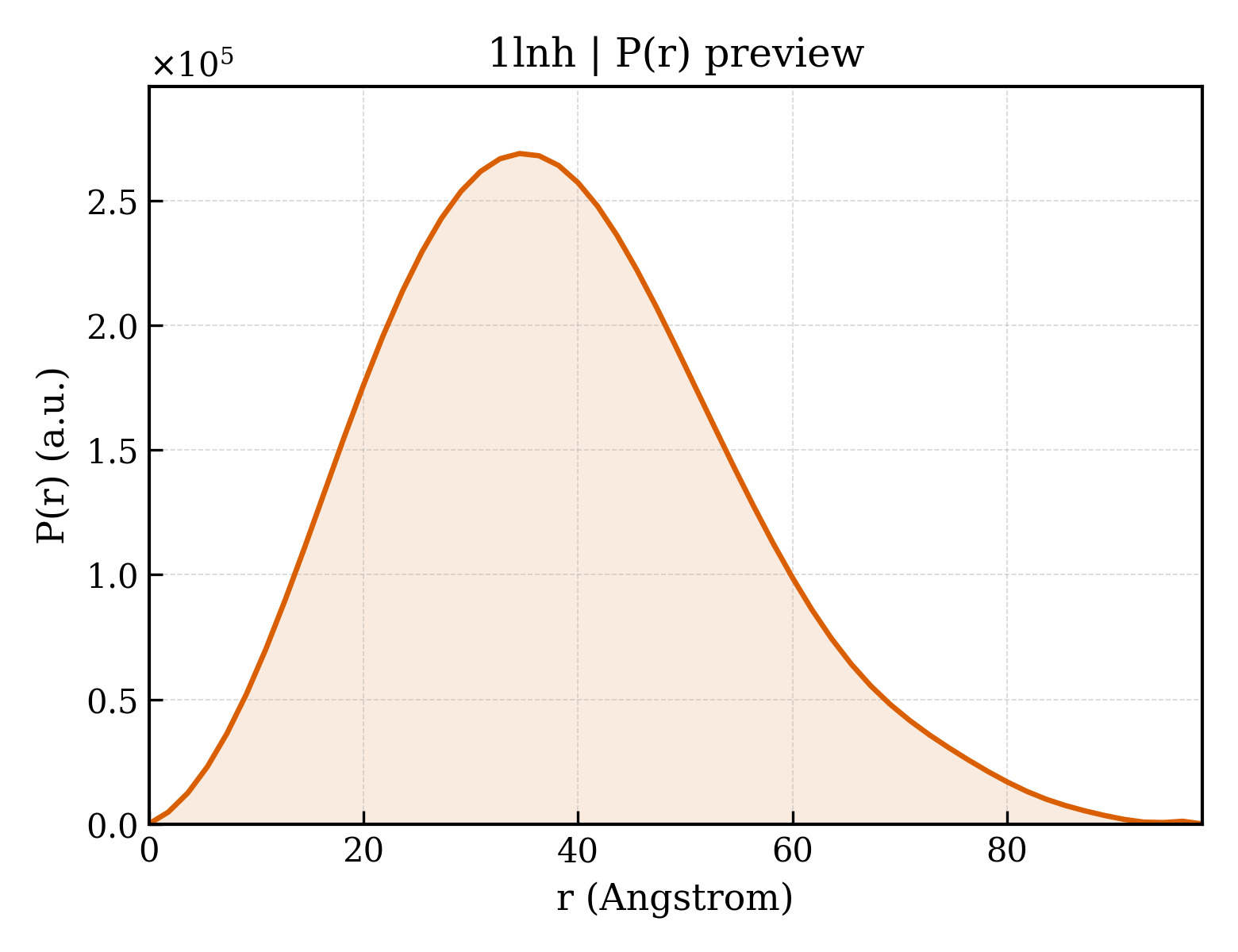

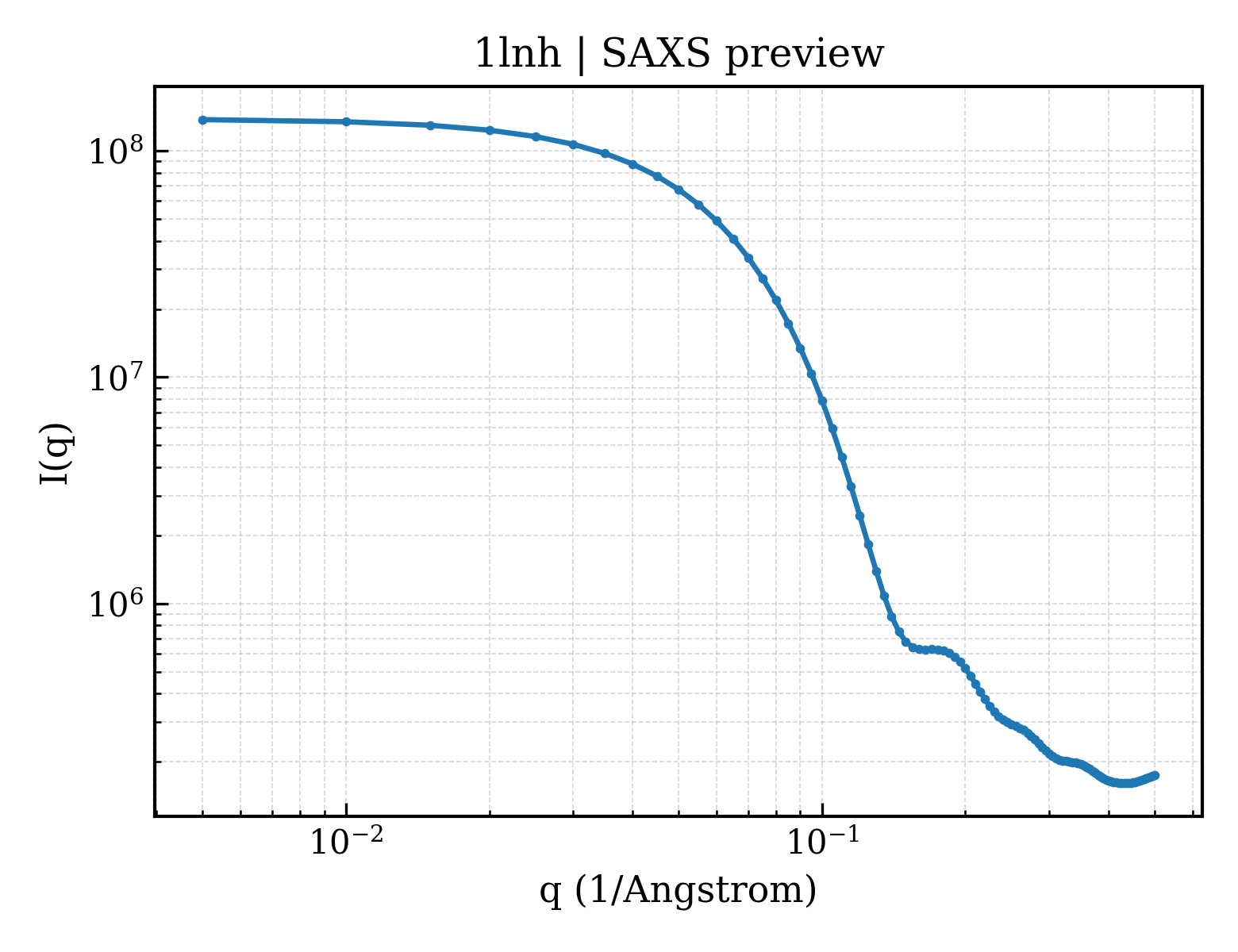

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 29.30 Å |
| Rg (electron density) | 28.44 Å |
| Total Rg | 29.24 Å |
| Atom count | 6697 |
| Residues | 836 |
| Excluded volume | 119180 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1lnha1 |
| Class class | a — All alpha proteins |
| Fold Fold fold | a.119 — Lipoxigenase |
| Superfamily Superfamily superfamily | a.119.1 — Lipoxigenase |
| Family Family family | a.119.1.1 — Plant lipoxigenases |
| Domain ID domain_id | d1lnha2 |
| Class class | b — All beta proteins |
| Fold Fold fold | b.12 — Lipase/lipooxygenase domain (PLAT/LH2 domain) |
| Superfamily Superfamily superfamily | b.12.1 — Lipase/lipooxygenase domain (PLAT/LH2 domain) |
| Family Family family | b.12.1.1 — Lipoxigenase N-terminal domain |
| Domain ID domain_id | 1lnhA01 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 60 — Sandwich |
| Topology topology | 60 — Lipoxygenase-1 |
| Homologous superfamily homologous superfamily | 20 — PLAT/LH2 domain |
| Domain ID domain_id | 1lnhA02 |
| Class class | 4 — Few Secondary Structures |
| Architecture architecture | 10 — Irregular |
| Topology topology | 375 — Lipoxygenase-1; domain 2 |
| Homologous superfamily homologous superfamily | 10 — Lipoxygenase-1; Domain 2 |
| Domain ID domain_id | 1lnhA03 |
| Class class | 4 — Few Secondary Structures |
| Architecture architecture | 10 — Irregular |
| Topology topology | 372 — Lipoxygenase-1; domain 3 |
| Homologous superfamily homologous superfamily | 10 — Lipoxygenase-1; Domain 3 |
| Domain ID domain_id | 1lnhA04 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 450 — Nuclear Transport Factor 2; Chain: A, |
| Homologous superfamily homologous superfamily | 60 — |
| Domain ID domain_id | 1lnhA05 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 245 — Lipoxygenase-1; domain 5 |
| Homologous superfamily homologous superfamily | 10 — Lipoxygenase-1; Domain 5 |
