SAXSdb — 1lr0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TolA protein

Pseudomonas aeruginosa

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	ZINC ION × 2 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 water × 1	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 3	ZINC ION × 6 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TOLA_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–123； UniProt 226–347

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lr0
Deposition date deposition_date	2002-05-14
Structure title title	Pseudomonas aeruginosa TolA Domain III, Seleno-methionine Derivative
Keywords keywords	Domain-Swapping, TolA, TonB, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1lr0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1lr0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

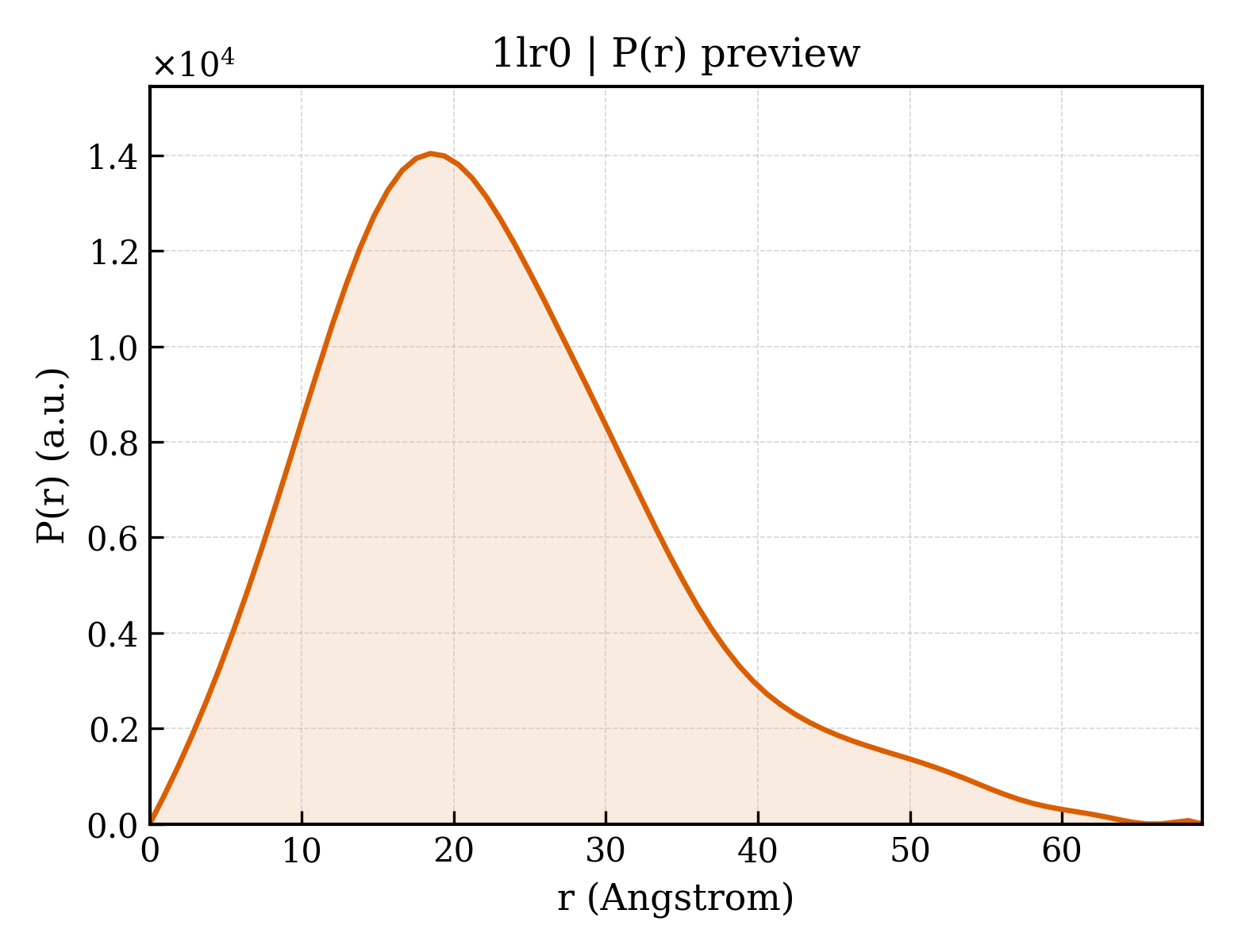

1lr0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.69 Å
Rg (electron density)	17.44 Å
Total Rg	18.22 Å
Atom count	978
Residues	123
Excluded volume	17247 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1lr0__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1lr0__assembly_2__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	TolA protein
Molecular weight formula_weight	14616.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1100

MRALAELLSDTTERQQALADEVGSEVTGSLDDLIVNLVSQQWRRPPSARNGMSVEVLIEMLPDGTITNASVSRSSGDKPFDSSAVAAVRNVGRIPEMQQLPRATFDSLYRQRRIIFKPEDLSLHHHHHH

Source Source

Source organism organism	Pseudomonas aeruginosa
NCBI taxonomy ID ncbi_taxonomy_id	287
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	122

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1lr0a1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.212 — TolA/TonB C-terminal domain
Superfamily Superfamily superfamily	d.212.1 — TolA/TonB C-terminal domain
Family Family family	d.212.1.1 — TolA

Domain ID domain_id	d1lr0a2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	1lr0A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1150 — Fusion Protein Consisting Of Minor Coat Protein, Glycine Rich Linker, Tola, And A His Tag; Chain: A; Domain 2
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	78.477 Å
Unit-cell length b length_b	78.477 Å
Unit-cell length c length_c	97.674 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 63 2 2
Space-group number int_tables_number	182
Crystal system crystal_system	—

Resolution resolution	1.914 Å
Low-resolution limit resolution_low	19.840 Å
R factor r_factor	0.1832
R_work r_work	0.1812
R_free r_free	0.2228

Pseudomonas aeruginosa TolA Domain III, Seleno-methionine Derivative
