SAXSdb — 1lrh

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1lrh
沉积日期 deposition_date	2002-05-15
结构标题 title	Crystal structure of auxin-binding protein 1 in complex with 1-naphthalene acetic acid
关键词 keywords	BETA JELLYROLL, DOUBLE STRANDED PARALLEL BETA HELIX, GERMIN LIKE PROTEIN, PROTEIN BINDING; PROTEIN BINDING
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.84 Å
回转半径 Rg (电子) rg_electron	32.53 Å
零角强度 I(0) i0	94214800.00
分子量 molecular_weight	77244.0 kDa
排除体积 excluded_volume	96484 Å³
包络体积 envelope_volume	122020 Å³
水化壳体积 shell_volume	32776 Å³
包络直径 envelope_diameter	112.6 Å
壳层 Rg shell_rg	37.71 Å
包络 Rg envelope_rg	32.06 Å
形状 Rg shape_rg	32.54 Å
总 Rg total_rg	32.94 Å
总原子数 total_atoms	5424
残基数 n_residues	640
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	107.5 Å
Rg (实空间) rg_real	33.10 Å
Rg 误差 (实空间) rg_real_error	0.97 Å
I(0) (实空间) i0_real	9.4210e+07
I(0) 误差 (实空间) i0_real_error	1.6800e+06
Rg (倒空间) rg_reciprocal	33.00 Å
I(0) (倒空间) i0_reciprocal	94210000.0000
解质量估计 total_estimate	0.8519
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	29.1 Å
偏度 Skewness skewness	0.429
峰度 Kurtosis kurtosis	-0.583
角度范围 angular_range	— – 0.2400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12990000.0000
实空间数据点数 n_real_points	49
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.813; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.838; Smooth: 0.792

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	auxin-binding protein 1
分子量 formula_weight	18411.8 kDa
突变 mutation	D161E/E162Q
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	5799

SCVRDNSLVRDISQMPQSSYGIEGLSHITVAGALNHGMKEVEVWLQTISPGQRTPIHRHSCEEVFTVLKGKGTLLMGSSSLKYPGQPQEIPFFQNTTFSIPVNDPHQVWNSDEHEDLQVLVIISRPPAKIFLYDDWSMPHTAAVLKFPFVWDEDCFEAAKEQL

来源 Source

来源生物 organism	Zea mays
NCBI 分类编号 ncbi_taxonomy_id	4577
宿主生物 host_organism	Trichoplusia ni

Entity 2 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 4 non-polymer

描述 description	NAPHTHALEN-1-YL-ACETIC ACID
分子量 formula_weight	186.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	375

▼

6. 折叠分类 (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

结构域编号 domain_id	d1lrha_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.1 — RmlC-like cupins
家族 Family family	b.82.1.2 — Germin/Seed storage 7S protein

结构域编号 domain_id	d1lrhb_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.1 — RmlC-like cupins
家族 Family family	b.82.1.2 — Germin/Seed storage 7S protein

结构域编号 domain_id	d1lrhc_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.1 — RmlC-like cupins
家族 Family family	b.82.1.2 — Germin/Seed storage 7S protein

结构域编号 domain_id	d1lrhd_
类 Class class	b — All beta proteins
折叠类型 Fold fold	b.82 — Double-stranded beta-helix
超家族 Superfamily superfamily	b.82.1 — RmlC-like cupins
家族 Family family	b.82.1.2 — Germin/Seed storage 7S protein

CATH v4.4 (4 domains)

结构域编号 domain_id	1lrhA00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

结构域编号 domain_id	1lrhB00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

结构域编号 domain_id	1lrhC00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

结构域编号 domain_id	1lrhD00
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	120 — Jelly Rolls
同源超家族 H-superfamily homologous superfamily	10 — Jelly Rolls

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	61.583 Å
晶胞边长 b length_b	82.433 Å
晶胞边长 c length_c	69.962 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	94.37 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	15.000 Å
R 因子 r_factor	0.2000
R_work r_work	0.2000
R_free r_free	0.2400

fit	/app/data/saxs_computation/lr/1lrh/1lrh.fit
pddf	/app/data/pr_computation/lr/1lrh/1lrh.pr.out
profile	/app/data/saxs_computation/lr/1lrh/1lrh.dat

Crystal structure of auxin-binding protein 1 in complex with 1-naphthalene acetic acid

SAXS 散射曲线 SAXS Profile

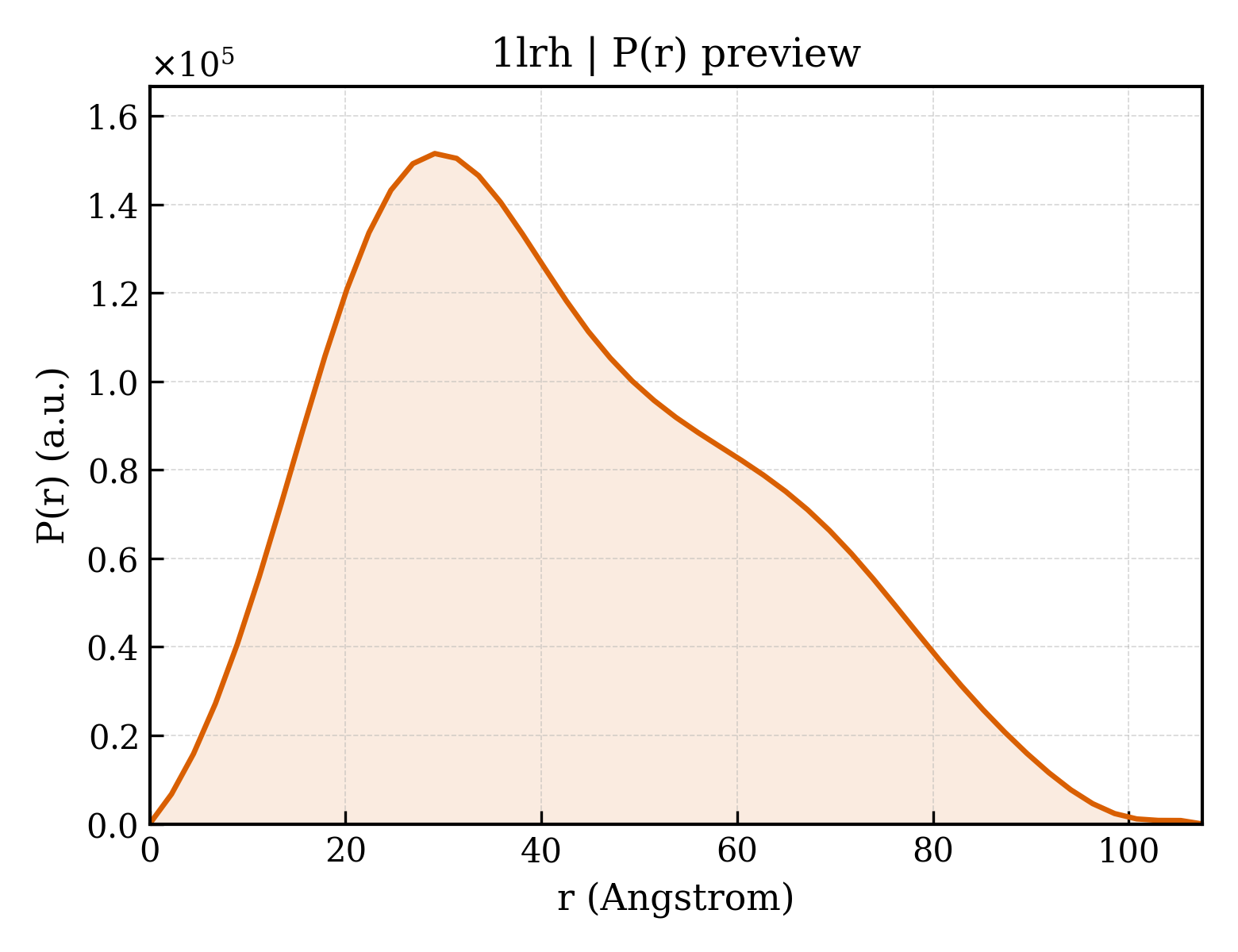

P(r) 距离分布 P(r) Distribution
