SAXSdb — 1lur

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

aldose 1-epimerase

Caenorhabditis elegans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q966D4_CAEEL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–339； UniProt 1–330 Author chain B； PDBConstruct 10–339； UniProt 1–330

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lur
Deposition date deposition_date	2002-05-23
Structure title title	Crystal Structure of the GalM/aldose Epimerase Homologue from C. elegans, Northeast Structural Genomics Target WR66
Keywords keywords	;vitamin B12, methyltransferase, structural genomics, structure-based function assignment, decarboxylase, PSI, Protein Structure Initiative, Northeast Structural Genomics Consortium, NESG, ISOMERASE ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1lur__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1lur__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

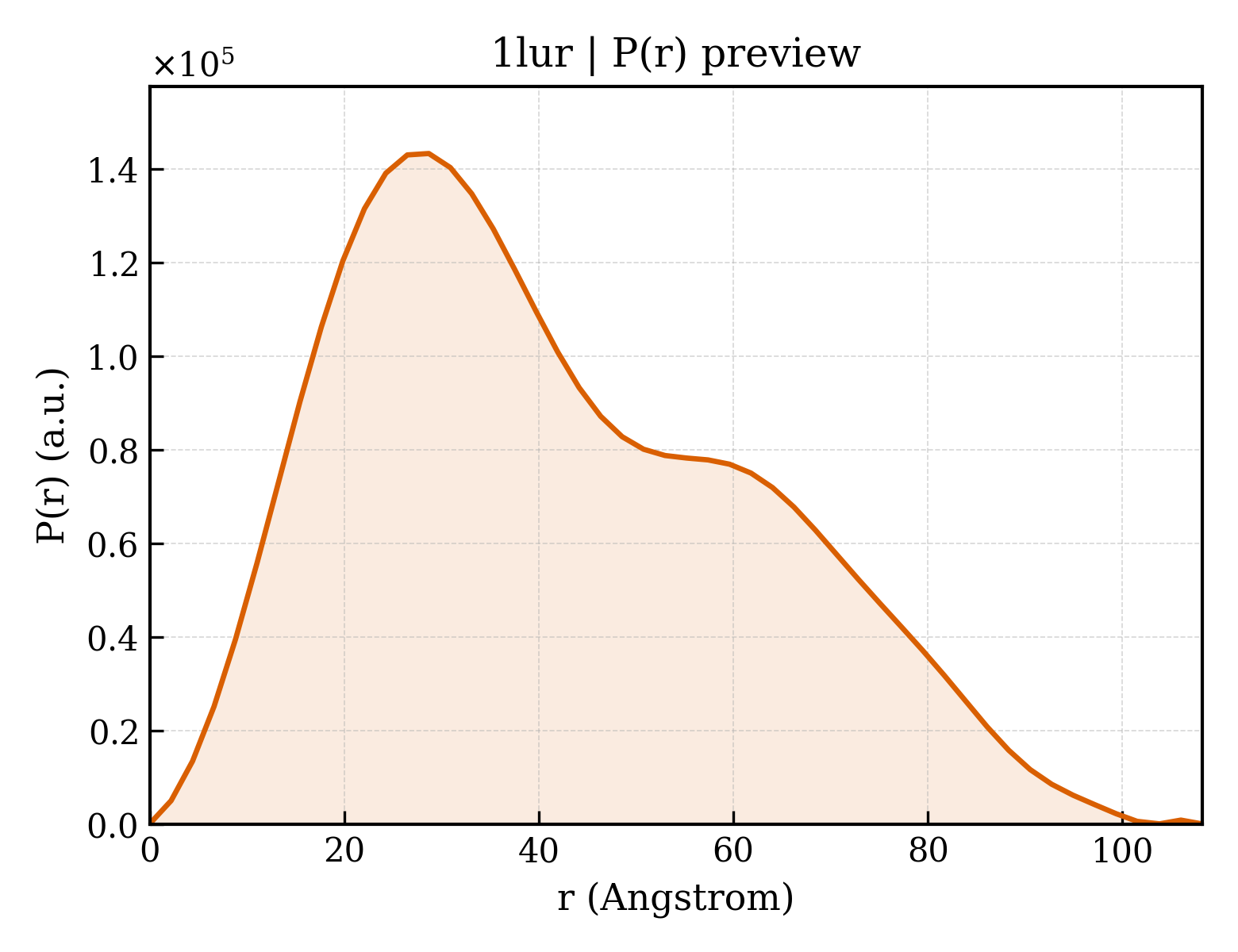

1lur__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.11 Å
Rg (electron density)	18.77 Å
Total Rg	19.75 Å
Atom count	2553
Residues	323
Excluded volume	44925 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1lur__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1lur__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	aldose 1-epimerase
Molecular weight formula_weight	37954.5 kDa
EC 编号 ec_number	5.1.3.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5504

MSHHHHHHSMASGFIEIANKQGLTATLLPFGATLAKLTFPDKNGKNQDLVLGFDTIDEFEKDAASIGKTVGRVANRIKNSTLHFDGKQYTMTPNNGPHYLHGGPNGLGYRKWEVVRHAPESVSFSVRANEQDDGLPGDAKIDVTYTVNDRNQLIIEHHATCDTPGLLALTNHAYWNLDGSDTVAEHFLEMEADEFVEVDDTFCPTGAIRSVTDTGFDFRSGKQLKESGKDAEELLDLDNDLVITKKTPPSTPSTYLRFWSEKSGIELSITTSYPVIHLYASKFLDCKGKKGEHYKANKALAIEPQFHSAAPNFDHFPDVSLRPGDHYCQEIVYTFSHVN

Source Source

Source organism organism	Caenorhabditis elegans
NCBI taxonomy ID ncbi_taxonomy_id	6239
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	398

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1lura_
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.4 — Aldose 1-epimerase (mutarotase)

Domain ID domain_id	d1lurb_
Class class	b — All beta proteins
Fold Fold fold	b.30 — Supersandwich
Superfamily Superfamily superfamily	b.30.5 — Galactose mutarotase-like
Family Family family	b.30.5.4 — Aldose 1-epimerase (mutarotase)

CATH v4.4 (2 domains)

Domain ID domain_id	1lurA00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	1lurB00
Class class	2 — Mainly Beta
Architecture architecture	70 — Distorted Sandwich
Topology topology	98 — Beta-galactosidase; Chain A, domain 5
Homologous superfamily homologous superfamily	10 —

▶

Unit-cell length a length_a	50.808 Å
Unit-cell length b length_b	91.007 Å
Unit-cell length c length_c	83.701 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.67 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2240
R_work r_work	0.2240
R_free r_free	0.2620

Crystal Structure of the GalM/aldose Epimerase Homologue from C. elegans, Northeast Structural Genomics Target WR66
