1lwr

Solution structure of the NCAM fibronectin type III module 2

Method: SOLUTION NMR
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neural Cell Adhesion Molecule 1, 140 kDa isoform

Rattus norvegicus

UniProt P13596

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 No other associated polymer Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1lwr

1 assemblies

Homodimer
1epf 1epf 1qz1

3 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex

None

View Construct and Data Evidence
UniProt name NCAM1_RAT
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–96； UniProt 612–707

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1lwr
Deposition date deposition_date2002-06-03
Structure title titleSolution structure of the NCAM fibronectin type III module 2
Keywords keywordsAll beta, Fibronectin type III module, CELL ADHESION; CELL ADHESION
Experimental Method methodSOLUTION NMR
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1lwr__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1lwr__assembly_1__model_1 | I(q)

10-2 10-1 105 106 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

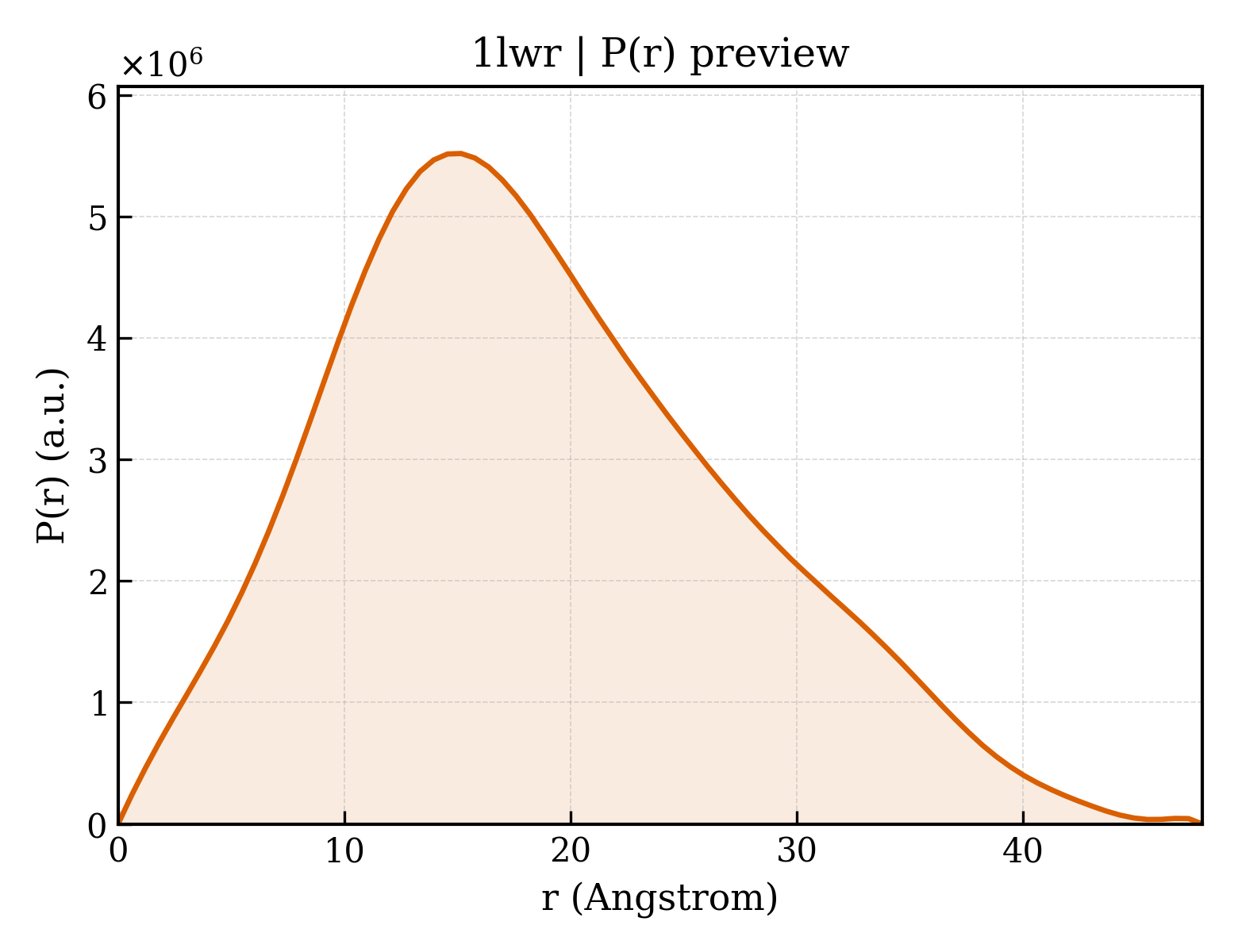

1lwr__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）15.34 Å
Rg (electron density)13.88 Å
Total Rg14.98 Å
Atom count1488
Residues96
Excluded volume13246 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1lwr__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 2 1lwr__assembly_1__model_2 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 3 1lwr__assembly_1__model_3 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 4 1lwr__assembly_1__model_4 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 5 1lwr__assembly_1__model_5 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 6 1lwr__assembly_1__model_6 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 7 1lwr__assembly_1__model_7 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 8 1lwr__assembly_1__model_8 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 9 1lwr__assembly_1__model_9 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 10 1lwr__assembly_1__model_10 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 11 1lwr__assembly_1__model_11 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 12 1lwr__assembly_1__model_12 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 13 1lwr__assembly_1__model_13 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 14 1lwr__assembly_1__model_14 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 15 1lwr__assembly_1__model_15 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 16 1lwr__assembly_1__model_16 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 17 1lwr__assembly_1__model_17 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 18 1lwr__assembly_1__model_18 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 19 1lwr__assembly_1__model_19 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 20 1lwr__assembly_1__model_20 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 21 1lwr__assembly_1__model_21 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 22 1lwr__assembly_1__model_22 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 23 1lwr__assembly_1__model_23 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 24 1lwr__assembly_1__model_24 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 25 1lwr__assembly_1__model_25 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 26 1lwr__assembly_1__model_26 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 27 1lwr__assembly_1__model_27 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 28 1lwr__assembly_1__model_28 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 29 1lwr__assembly_1__model_29 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
1 30 1lwr__assembly_1__model_30 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd1lwra1
Class classb — All beta proteins
Fold Fold foldb.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamilyb.1.2 — Fibronectin type III
Family Family familyb.1.2.1 — Fibronectin type III
Domain ID domain_idd1lwra2
Class classl — Artifacts
Fold Fold foldl.1 — Tags
Superfamily Superfamily superfamilyl.1.1 — Tags
Family Family familyl.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id1lwrA00
Class class2 — Mainly Beta
Architecture architecture60 — Sandwich
Topology topology40 — Immunoglobulin-like
Homologous superfamily homologous superfamily10 — Immunoglobulins
▶
