SAXSdb — 1lxy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Arginine Deiminase

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	CITRULLINE × 2 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARCA_MYCAR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–409； UniProt 1–409 Author chain B； PDBConstruct 1–409； UniProt 1–409

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1lxy
Deposition date deposition_date	2002-06-06
Structure title title	Crystal Structure of Arginine Deiminase covalently linked with L-citrulline
Keywords keywords	deiminase; hydrolase; 5-fold pseudo-symmetric domain; 5-Helix bundle domain, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1lxy__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1lxy__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

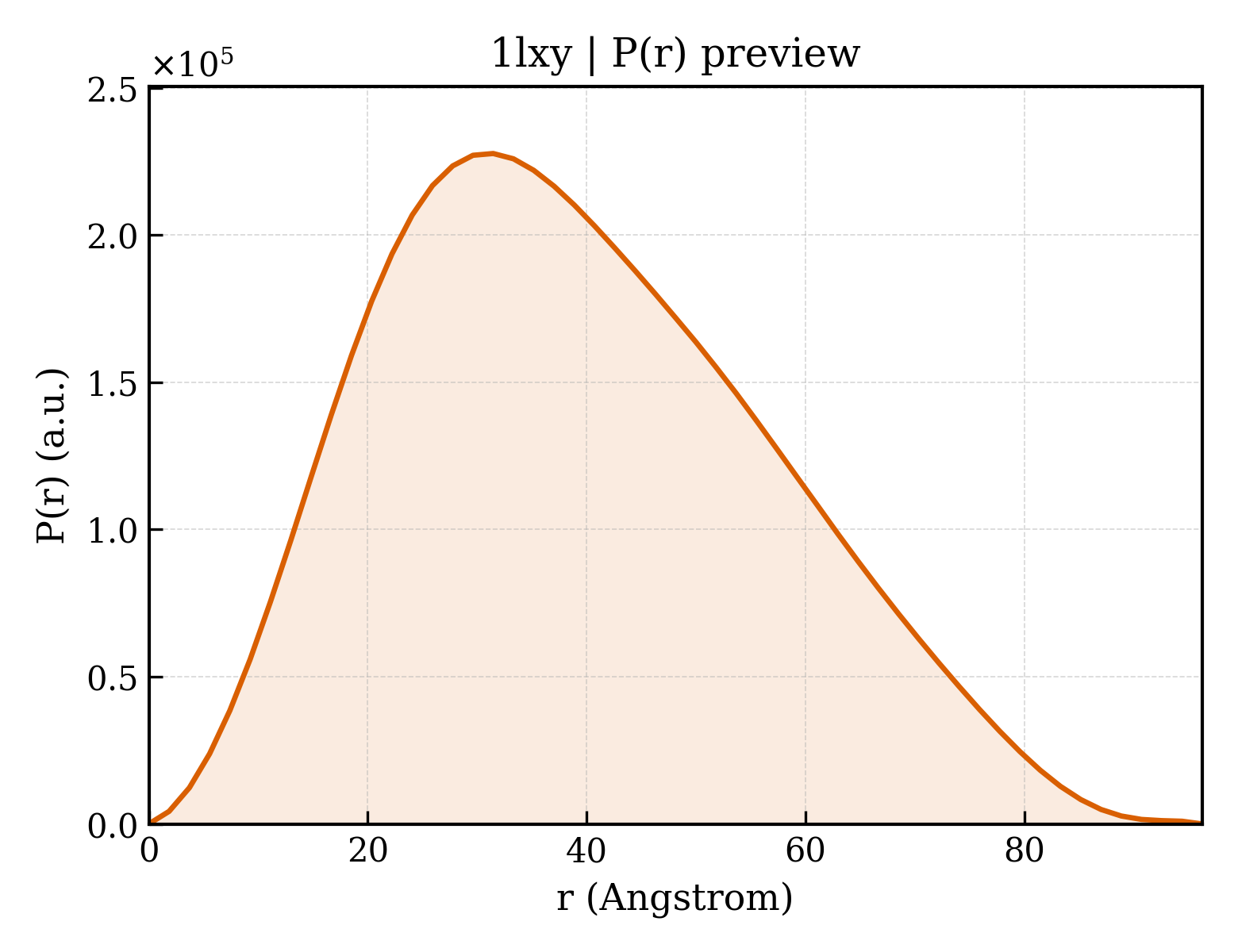

1lxy__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.28 Å
Rg (electron density)	29.75 Å
Total Rg	30.42 Å
Atom count	6580
Residues	818
Excluded volume	117850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1lxy__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Arginine Deiminase
Molecular weight formula_weight	46432.0 kDa
EC 编号 ec_number	3.5.3.6
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7130

SVFDSKFKGIHVYSEIGELESVLVHEPGREIDYITPARLDELLFSAILESHDARKEHKQFVAELKANDINVVELIDLVAETYDLASQEAKDKLIEEFLEDSEPVLSEEHKVVVRNFLKAKKTSRELVEIMMAGITKYDLGIEADHELIVDPMPNLYFTRDPFASVGNGVTIHYMRYKVRQRETLFSRFVFSNHPKLINTPWYYDPSLKLSIEGGDVFIYNNDTLVVGVSERTDLQTVTLLAKNIVANKECEFKRIVAINVPKWTNLMHLDTWLTMLDKDKFLYSPIANDVFKFWDYDLVNGGAEPQPVENGLPLEGLLQSIINKKPVLIPIAGEGASQMEIERETHFDGTNYLAIRPGVVIGYSRNEKTNAALEAAGIKVLPFHGNQLSLGMGNARCMSMPLSRKDVKW

Entity 2 Entity 2 non-polymer

Description description	CITRULLINE
Molecular weight formula_weight	175.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
Molecular weight formula_weight	122.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	550

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1lxya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.126 — Pentein, beta/alpha-propeller
Superfamily Superfamily superfamily	d.126.1 — Pentein
Family Family family	d.126.1.4 — Arginine deiminase

Domain ID domain_id	d1lxyb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.126 — Pentein, beta/alpha-propeller
Superfamily Superfamily superfamily	d.126.1 — Pentein
Family Family family	d.126.1.4 — Arginine deiminase

CATH v4.4 (4 domains)

Domain ID domain_id	1lxyA01
Class class	3 — Alpha Beta
Architecture architecture	75 — 5-stranded Propeller
Topology topology	10 — L-arginine/glycine Amidinotransferase; Chain A
Homologous superfamily homologous superfamily	10 — L-arginine/glycine Amidinotransferase; Chain A

Domain ID domain_id	1lxyA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3930 — Pentein
Homologous superfamily homologous superfamily	10 — Arginine deiminase

Domain ID domain_id	1lxyB01
Class class	3 — Alpha Beta
Architecture architecture	75 — 5-stranded Propeller
Topology topology	10 — L-arginine/glycine Amidinotransferase; Chain A
Homologous superfamily homologous superfamily	10 — L-arginine/glycine Amidinotransferase; Chain A

Domain ID domain_id	1lxyB02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	3930 — Pentein
Homologous superfamily homologous superfamily	10 — Arginine deiminase

▶

Unit-cell length a length_a	77.240 Å
Unit-cell length b length_b	76.370 Å
Unit-cell length c length_c	82.900 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	109.74 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.950 Å
R factor r_factor	0.1861
R_work r_work	0.1860
R_free r_free	0.2270
