1m0w

Yeast Glutathione Synthase Bound to gamma-glutamyl-cysteine, AMP-PNP and 2 Magnesium Ions

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

glutathione synthetase

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 4 SULFATE ION × 7 PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 GAMMA-GLUTAMYLCYSTEINE × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GSHB_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–491； UniProt 1–491 Author chain B； PDBConstruct 1–491； UniProt 1–491

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m0w
Deposition date deposition_date	2002-06-14
Structure title title	Yeast Glutathione Synthase Bound to gamma-glutamyl-cysteine, AMP-PNP and 2 Magnesium Ions
Keywords keywords	;Amine/Carboxylate Ligase, Structural Genomics, PSI, Protein Structure Initiative, New York SGX Research Center for Structural Genomics, NYSGXRC, LIGASE ;; LIGASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m0w__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m0w__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

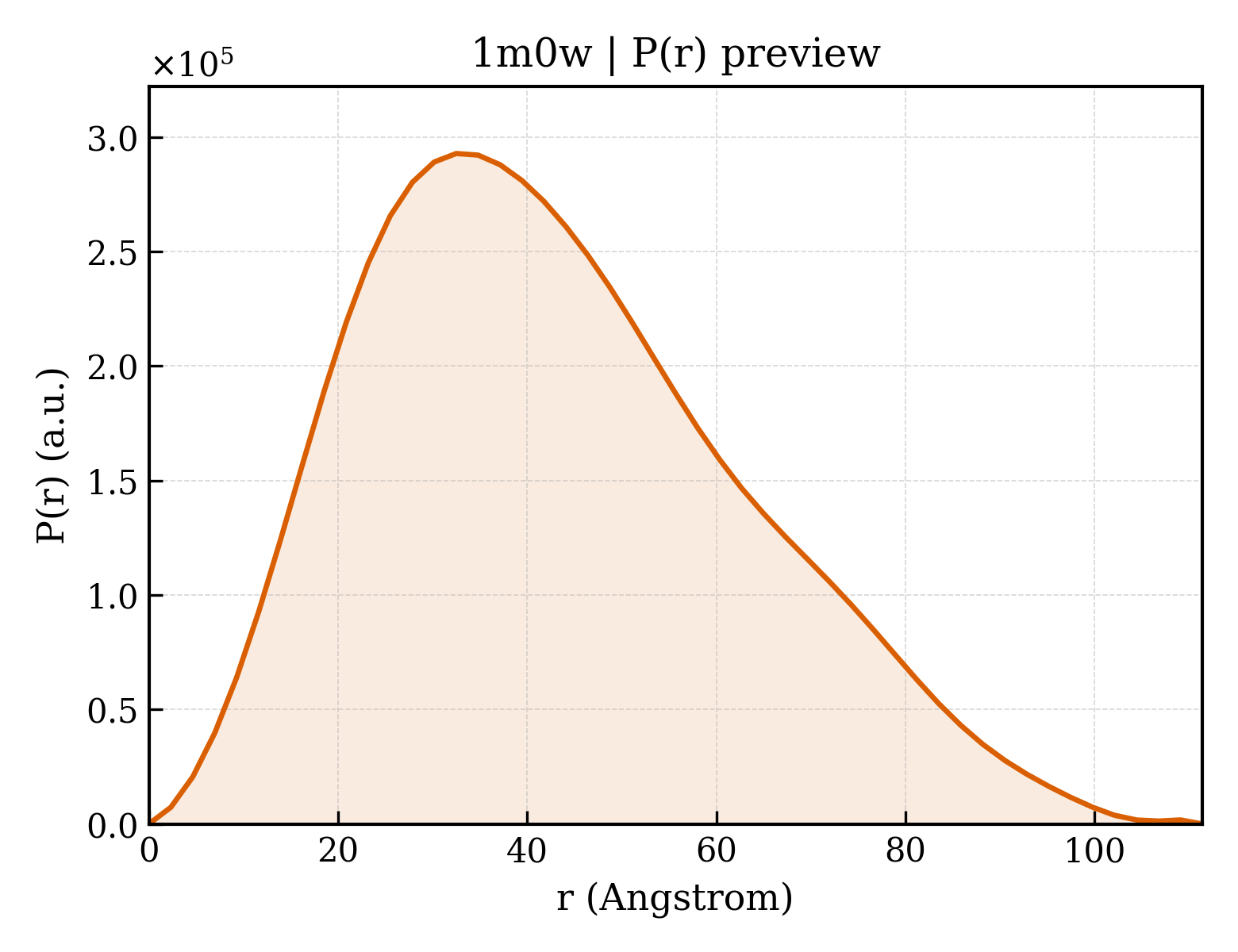

1m0w__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.25 Å
Rg (electron density)	32.98 Å
Total Rg	33.43 Å
Atom count	7703
Residues	960
Excluded volume	136890 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m0w__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	glutathione synthetase
Molecular weight formula_weight	55878.9 kDa
EC 编号 ec_number	6.3.2.3
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8810

MAHYPPSKDQLNELIQEVNQWAITNGLSMYPPKFEENPSNASVSPVTIYPTPIPRKCFDEAVQIQPVFNELYARITQDMAQPDSYLHKTTEALALSDSEFTGKLWSLYLATLKSAQYKKQNFRLGIFRSDYLIDKKKGTEQIKQVEFNTVSVSFAGLSEKVDRLHSYLNRANKYDPKGPIYNDQNMVISDSGYLLSKALAKAVESYKSQQSSSTTSDPIVAFIVQRNERNVFDQKVLELNLLEKFGTKSVRLTFDDVNDKLFIDDKTGKLFIRDTEQEIAVVYYRTGYTTTDYTSEKDWEARLFLEKSFAIKAPDLLTQLSGSKKIQQLLTDEGVLGKYISDAEKKSSLLKTFVKIYPLDDTKLGREGKRLALSEPSKYVLKPQREGGGNNVYKENIPNFLKGIEERHWDAYILMELIEPELNENNIILRDNKSYNEPIISELGIYGCVLFNDEQVLSNEFSGSLLRSKFNTSNEGGVAAGFGCLDSIILY

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	506.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	GAMMA-GLUTAMYLCYSTEINE
Molecular weight formula_weight	250.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	747

▼

6. Fold Classification (SCOP + CATH) 14 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1m0wa1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.4 — Eukaryotic glutathione synthetase, substrate-binding domain

Domain ID domain_id	d1m0wa2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.6 — Eukaryotic glutathione synthetase ATP-binding domain

Domain ID domain_id	d1m0wb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.30 — PreATP-grasp domain
Superfamily Superfamily superfamily	c.30.1 — PreATP-grasp domain
Family Family family	c.30.1.4 — Eukaryotic glutathione synthetase, substrate-binding domain

Domain ID domain_id	d1m0wb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.142 — ATP-grasp
Superfamily Superfamily superfamily	d.142.1 — Glutathione synthetase ATP-binding domain-like
Family Family family	d.142.1.6 — Eukaryotic glutathione synthetase ATP-binding domain

CATH v4.4 (10 domains)

Domain ID domain_id	1m0wA01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	1m0wA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	1m0wA03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1080 — Glutathione Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Glutathione Synthetase; Chain A, domain 3

Domain ID domain_id	1m0wA04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1760 — Glutathione synthase, substrate-binding domain superfamily, eukaryotic

Domain ID domain_id	1m0wA05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	50 — Glutathione synthase lid domain

Domain ID domain_id	1m0wB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	80 —

Domain ID domain_id	1m0wB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	470 — D-amino Acid Aminotransferase; Chain A, domain 1
Homologous superfamily homologous superfamily	20 — ATP-grasp fold, B domain

Domain ID domain_id	1m0wB03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1080 — Glutathione Synthetase; Chain A, domain 3
Homologous superfamily homologous superfamily	10 — Glutathione Synthetase; Chain A, domain 3

Domain ID domain_id	1m0wB04
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	1760 — Glutathione synthase, substrate-binding domain superfamily, eukaryotic

Domain ID domain_id	1m0wB05
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1490 — Dna Ligase; domain 1
Homologous superfamily homologous superfamily	50 — Glutathione synthase lid domain

▶

Unit-cell length a length_a	51.661 Å
Unit-cell length b length_b	52.006 Å
Unit-cell length c length_c	100.636 Å
Unit-cell angle α angle_alpha	82.08 °
Unit-cell angle β angle_beta	86.77 °
Unit-cell angle γ angle_gamma	77.49 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1720
R_work r_work	0.1720
R_free r_free	0.1960
