SAXSdb — 1m1z

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

BETA-LACTAM SYNTHETASE

Streptomyces clavuligerus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLS_STRCL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–513； UniProt 1–513 Author chain B； PDBConstruct 1–513； UniProt 1–513

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m1z
Deposition date deposition_date	2002-06-20
Structure title title	BETA-LACTAM SYNTHETASE APO ENZYME
Keywords keywords	Clavulanic acid, Asparagine Synthetase, Beta-Lactam Synthetase, Carboxyethyl arginine, deoxyguanidinoproclavaminic acid, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m1z__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m1z__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

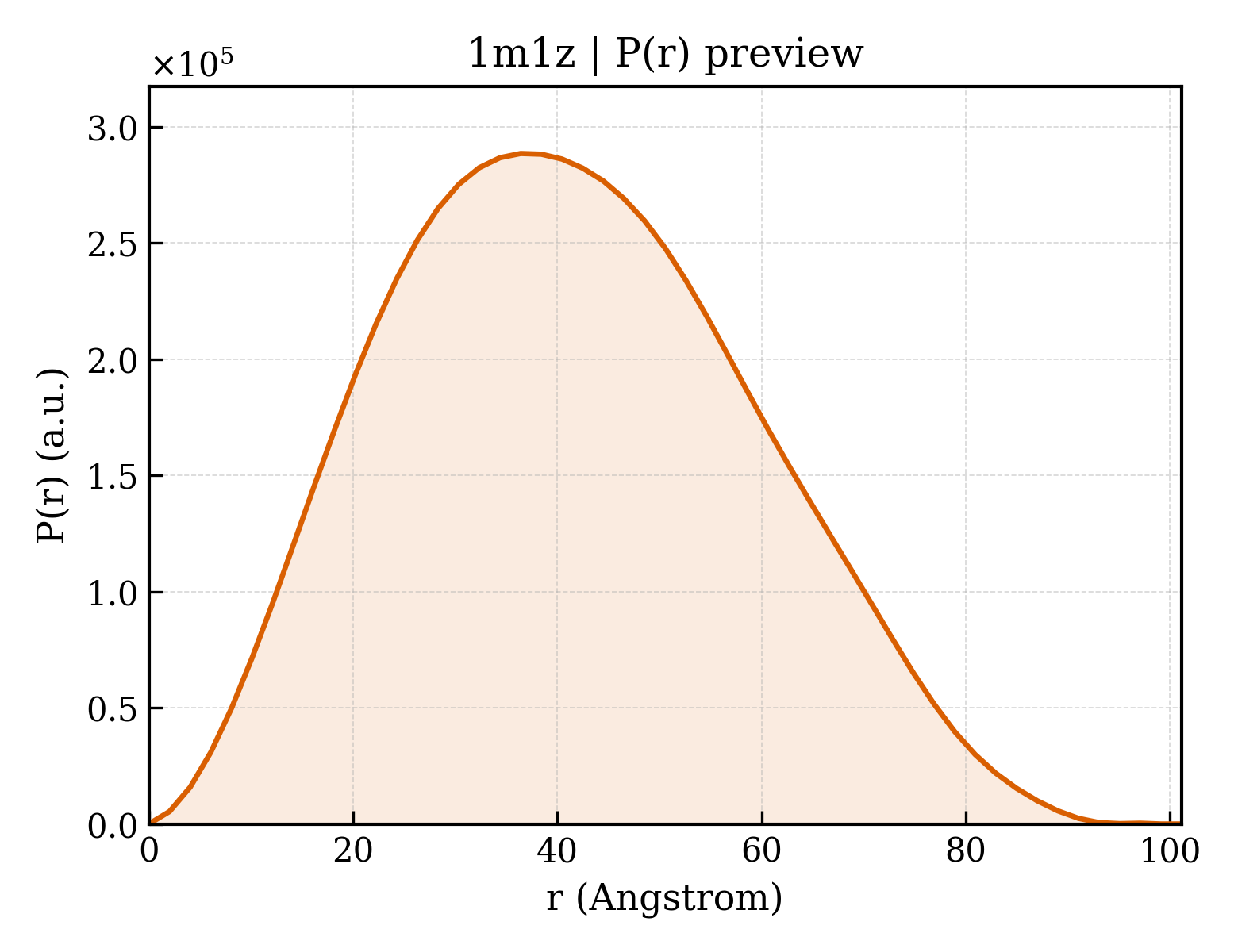

1m1z__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.60 Å
Rg (electron density)	22.31 Å
Total Rg	23.20 Å
Atom count	3604
Residues	480
Excluded volume	63706 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m1z__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1m1z__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	BETA-LACTAM SYNTHETASE
Molecular weight formula_weight	54601.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	7883

MGAPVLPAAFGFLASARTGGGRAPGPVFATRGSHTDIDTPQGERSLAATLVHAPSVAPDRAVARSLTGAPTTAVLAGEIYNRDELLSVLPAGPAPEGDAELVLRLLERYDLHAFRLVNGRFATVVRTGDRVLLATDHAGSVPLYTCVAPGEVRASTEAKALAAHRDPKGFPLADARRVAGLTGVYQVPAGAVMDIDLGSGTAVTHRTWTPGLSRRILPEGEAVAAVRAALEKAVAQRVTPGDTPLVVLSGGIDSSGVAACAHRAAGELDTVSMGTDTSNEFREARAVVDHLRTRHREITIPTTELLAQLPYAVWASESVDPDIIEYLLPLTALYRALDGPERRILTGYGADIPLGGMHREDRLPALDTVLAHDMATFDGLNEMSPVLSTLAGHWTTHPYWDREVLDLLVSLEAGLKRRHGRDKWVLRAAMADALPAETVNRPKLGVHEGSGTTSSFSRLLLDHGVAEDRVHEAKRQVVRELFDLTVGGGRHPSEVDTDDVVRSVADRTARGAA

Source Source

Source organism organism	Streptomyces clavuligerus
NCBI taxonomy ID ncbi_taxonomy_id	1901
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	603

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1m1za1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.2 — Adenine nucleotide alpha hydrolases-like
Family Family family	c.26.2.1 — N-type ATP pyrophosphatases

Domain ID domain_id	d1m1za2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

Domain ID domain_id	d1m1zb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.26 — Adenine nucleotide alpha hydrolase-like
Superfamily Superfamily superfamily	c.26.2 — Adenine nucleotide alpha hydrolases-like
Family Family family	c.26.2.1 — N-type ATP pyrophosphatases

Domain ID domain_id	d1m1zb2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.153 — Ntn hydrolase-like
Superfamily Superfamily superfamily	d.153.1 — N-terminal nucleophile aminohydrolases (Ntn hydrolases)
Family Family family	d.153.1.1 — Class II glutamine amidotransferases

CATH v4.4 (4 domains)

Domain ID domain_id	1m1zA01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1m1zA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

Domain ID domain_id	1m1zB01
Class class	3 — Alpha Beta
Architecture architecture	60 — 4-Layer Sandwich
Topology topology	20 — Glutamine Phosphoribosylpyrophosphate, subunit 1, domain 1
Homologous superfamily homologous superfamily	10 — Aminohydrolase, N-terminal nucleophile (Ntn) domain

Domain ID domain_id	1m1zB02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	620 — HUPs

▶

Unit-cell length a length_a	61.179 Å
Unit-cell length b length_b	97.469 Å
Unit-cell length c length_c	80.968 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.42 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	23.880 Å
R factor r_factor	—
R_work r_work	0.1970
R_free r_free	0.2310
