1m5q

Crystal structure of a novel Sm-like archaeal protein from Pyrobaculum aerophilum

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

small nuclear ribonucleoprotein homolog

Pyrobaculum aerophilum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 14	CADMIUM ION × 14 SODIUM ION × 2 GLYCEROL × 6 ACETIC ACID × 7 water × 14	Consistent with protein count
2	Protein homooligomer	Homooligomer	Protein 14	CADMIUM ION × 14 SODIUM ION × 3 GLYCEROL × 6 ACETIC ACID × 8 water × 14	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8ZVU2_PYRAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain 1； PDBConstruct 1–130； UniProt 12–141 Author chain 2； PDBConstruct 1–130； UniProt 12–141 Author chain A； PDBConstruct 1–130； UniProt 12–141 Author chain B； PDBConstruct 1–130； UniProt 12–141 Author chain C； PDBConstruct 1–130； UniProt 12–141 Author chain D； PDBConstruct 1–130； UniProt 12–141 Author chain E； PDBConstruct 1–130； UniProt 12–141 Author chain F； PDBConstruct 1–130； UniProt 12–141 Author chain G； PDBConstruct 1–130； UniProt 12–141 Author chain H； PDBConstruct 1–130； UniProt 12–141 Author chain I； PDBConstruct 1–130； UniProt 12–141 Author chain J； PDBConstruct 1–130； UniProt 12–141 Author chain K； PDBConstruct 1–130； UniProt 12–141 Author chain L； PDBConstruct 1–130； UniProt 12–141 Author chain M； PDBConstruct 1–130； UniProt 12–141 Author chain N； PDBConstruct 1–130； UniProt 12–141 Author chain O； PDBConstruct 1–130； UniProt 12–141 Author chain P； PDBConstruct 1–130； UniProt 12–141 Author chain Q； PDBConstruct 1–130； UniProt 12–141 Author chain R； PDBConstruct 1–130； UniProt 12–141 Author chain S； PDBConstruct 1–130； UniProt 12–141 Author chain T； PDBConstruct 1–130； UniProt 12–141 Author chain U； PDBConstruct 1–130； UniProt 12–141 Author chain V； PDBConstruct 1–130； UniProt 12–141 Author chain W； PDBConstruct 1–130； UniProt 12–141 Author chain X； PDBConstruct 1–130； UniProt 12–141 Author chain Y； PDBConstruct 1–130； UniProt 12–141 Author chain Z； PDBConstruct 1–130； UniProt 12–141

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m5q
Deposition date deposition_date	2002-07-09
Structure title title	Crystal structure of a novel Sm-like archaeal protein from Pyrobaculum aerophilum
Keywords keywords	OB-like fold, b-sheet toroid, 14-mer, cadmium-binding site, TRANSLATION; TRANSLATION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m5q__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m5q__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

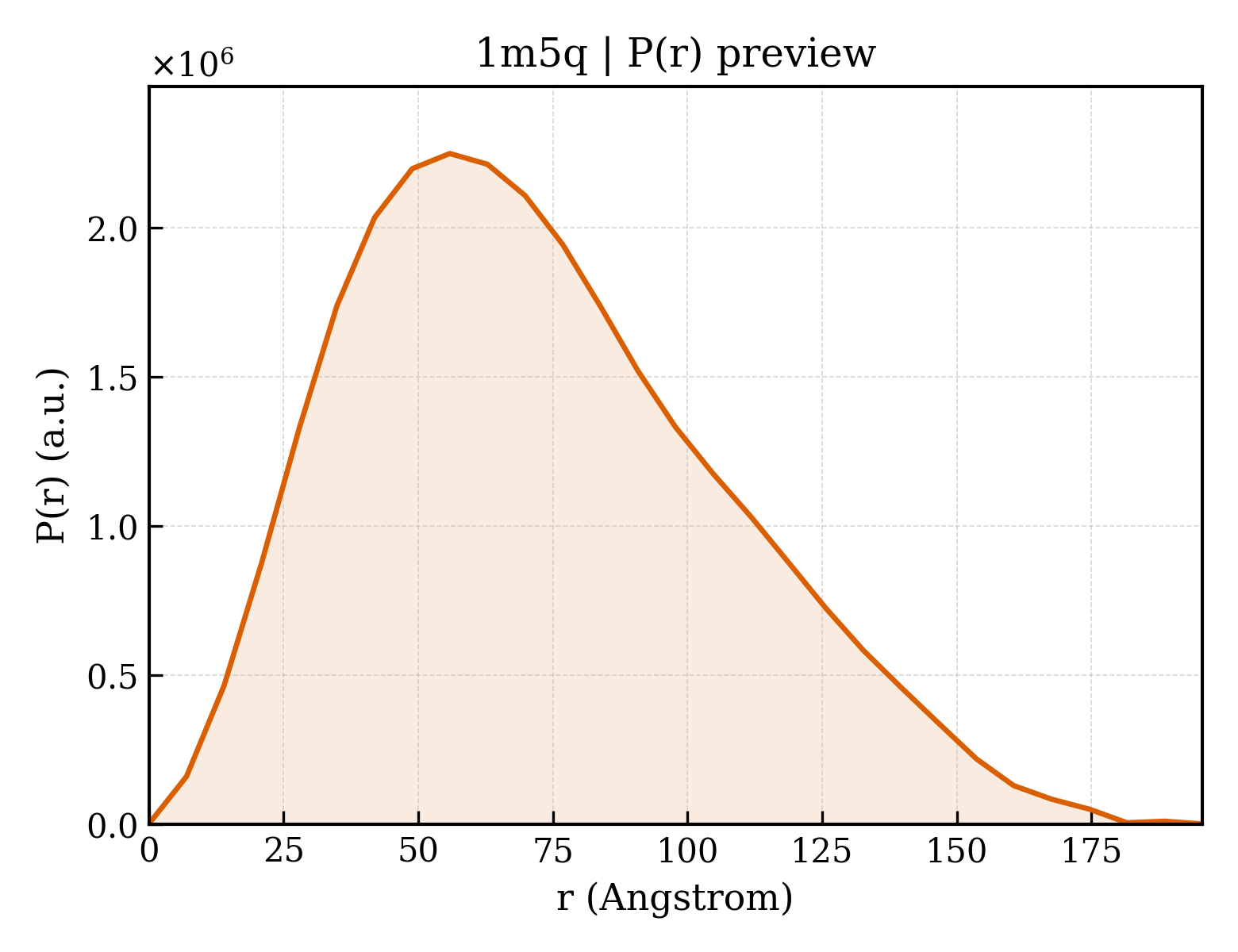

1m5q__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.30 Å
Rg (electron density)	37.79 Å
Total Rg	38.32 Å
Atom count	14375
Residues	1741
Excluded volume	259250 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m5q__assembly_1__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`1m5q__assembly_2__model_1`	tetradecameric （14）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	small nuclear ribonucleoprotein homolog
Molecular weight formula_weight	15007.8 kDa
Source method src_method	man
Copy count entity_count	28

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,1,2
Atom count atom_count	30641

FVAELNNLLGREVQVVLSNGEVYKGVLHAVDNQLNIVLANASNKAGEKFNRVFIMYRYIVHIDSTERRIDMREFAKQAEKIFPGMVKYIEETNVVLIGDKVRVSEIGVEGVGPVAERAKRLFEEFLKRYS

Source Source

Source organism organism	Pyrobaculum aerophilum
NCBI taxonomy ID ncbi_taxonomy_id	13773
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	28

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 5 Entity 5 non-polymer

Description description	ACETIC ACID
Molecular weight formula_weight	60.1 kDa
Source method src_method	syn
Copy count entity_count	15

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1888

▼

6. Fold Classification (SCOP + CATH) 84 domains

SCOP 2.08 (28 domains)

Domain ID domain_id	d1m5q1_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5q2_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qa_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qb_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qc_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qd_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qe_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qf_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qg_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qh_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qi_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qj_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qk_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5ql_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qm_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qn_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qo_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qp_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qq_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qr_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qs_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qt_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qu_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qv_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qw_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qx_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qy_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

Domain ID domain_id	d1m5qz_
Class class	b — All beta proteins
Fold Fold fold	b.38 — Sm-like fold
Superfamily Superfamily superfamily	b.38.1 — Sm-like ribonucleoproteins
Family Family family	b.38.1.1 — Sm motif of small nuclear ribonucleoproteins, SNRNP

CATH v4.4 (56 domains)

Domain ID domain_id	1m5q101
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5q102
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5q201
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5q202
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qA01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qB01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qB02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qC01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qD01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qD02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qE01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qF01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qF02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qG01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qH01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qH02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qI01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qI02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qJ01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qJ02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qK01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qK02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qL01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qL02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qM01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qM02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qN01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qN02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qO01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qO02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qP01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qP02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qQ01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qQ02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qR01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qR02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qS01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qS02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qT01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qT02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qU01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qU02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qV01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qV02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qW01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qW02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qX01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qX02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qY01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qY02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

Domain ID domain_id	1m5qZ01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	1m5qZ02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	310 — TATA-Binding Protein
Homologous superfamily homologous superfamily	60 — Like-Sm ribonucleoprotein, C-terminal domain

▶

Unit-cell length a length_a	83.322 Å
Unit-cell length b length_b	172.427 Å
Unit-cell length c length_c	148.108 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	56

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.1910
R_work r_work	0.1910
R_free r_free	0.2360

Crystal structure of a novel Sm-like archaeal protein from Pyrobaculum aerophilum

1. Protein Identity and Related Structures Protein Identity & Related Structures

small nuclear ribonucleoprotein homolog

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1m5q__assembly_1__model_1

1m5q__assembly_1__model_1 | I(q)

1m5q__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 84 domains

SCOP 2.08 (28 domains)

CATH v4.4 (56 domains)

7. Citations (2)

Crystal structure of a novel Sm-like archaeal protein from Pyrobaculum aerophilum

1. Protein Identity and Related Structures Protein Identity & Related Structures

small nuclear ribonucleoprotein homolog

State in the Current Structure

Other States of the Same Protein in the Database

Monomer

Homodimer

Homotetramer

Other homooligomers

Heteromeric or nucleic-acid complex

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1m5q__assembly_1__model_1

1m5q__assembly_1__model_1 | I(q)

1m5q__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 non-polymer

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

6. Fold Classification (SCOP + CATH) 84 domains

SCOP 2.08 (28 domains)

CATH v4.4 (56 domains)

7. Citations (2)
