Caulobacter vibrioides
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | water × 1 | Consistent with protein count |
| UniProt name | Q9A5I4_CAUCR |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–124； UniProt 2–125 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 1m5u |
| Deposition date deposition_date | 2002-07-10 |
| Structure title title | CRYSTAL STRUCTURE OF THE RESPONSE REGULATOR DIVK. STRUCTURE AT PH 8.0 IN THE APO-FORM |
| Keywords keywords | ;RESPONSE REGULATOR, SIGNAL TRANSDUCTION PROTEIN, Structural Proteomics in Europe, SPINE, Structural Genomics, SIGNALING PROTEIN, CELL CYCLE ;; SIGNALING PROTEIN, CELL CYCLE |
| Experimental Method method | X-RAY DIFFRACTION |
This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

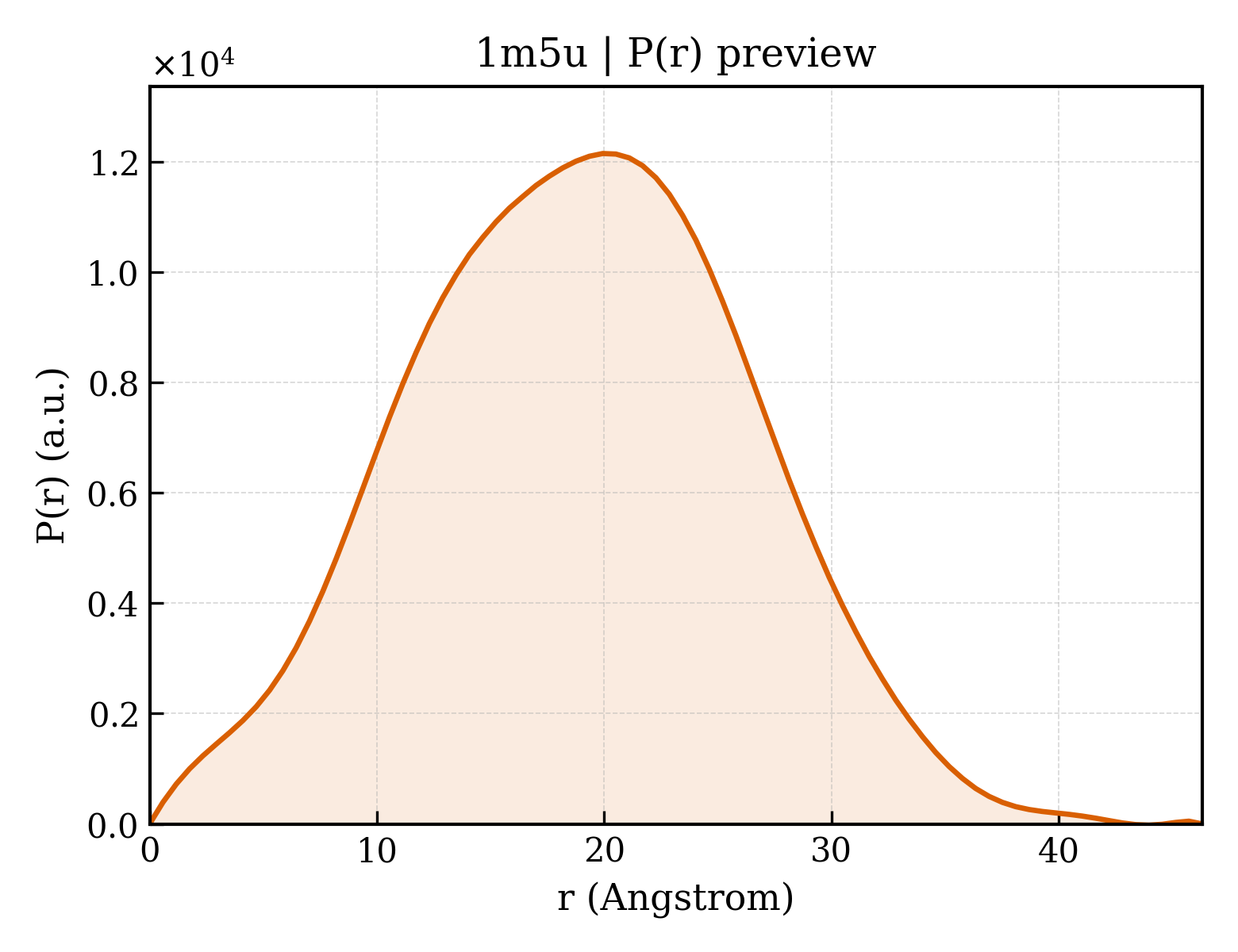

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 14.49 Å |
| Rg (electron density) | 12.89 Å |
| Total Rg | 14.19 Å |
| Atom count | 872 |
| Residues | 113 |
| Excluded volume | 15693 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d1m5ua_ |
| Class class | c — Alpha and beta proteins (a/b) |
| Fold Fold fold | c.23 — Flavodoxin-like |
| Superfamily Superfamily superfamily | c.23.1 — CheY-like |
| Family Family family | c.23.1.1 — CheY-related |
| Domain ID domain_id | 1m5uA00 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 40 — 3-Layer(aba) Sandwich |
| Topology topology | 50 — Rossmann fold |
| Homologous superfamily homologous superfamily | 2300 — Response regulator |
