1m64
Crystal structure of Q363F mutant flavocytochrome c3
SAXS 散射曲线 SAXS Profile

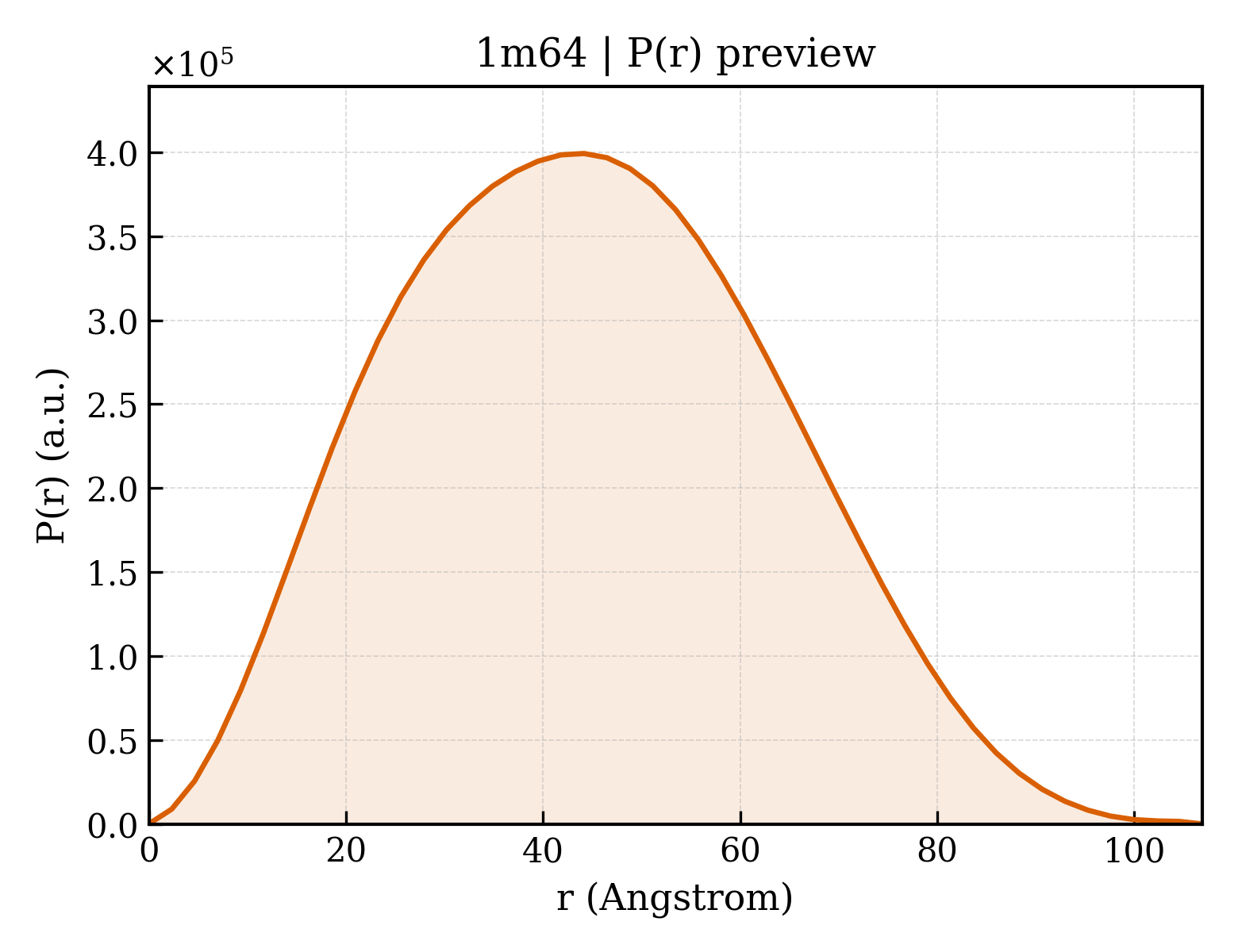

P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 1m64 |
| 沉积日期 deposition_date | 2002-07-12 |
| 结构标题 title | Crystal structure of Q363F mutant flavocytochrome c3 |
| 关键词 keywords | FLAVOCYTOCHROME, ELECTRON TRANSPORT, FAD, OXIDOREDUCTASE; OXIDOREDUCTASE |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 34.21 Å |
| 回转半径 Rg (电子) rg_electron | 33.54 Å |
| 零角强度 I(0) i0 | 261630000.00 |
| 分子量 molecular_weight | 125970.0 kDa |
| 排除体积 excluded_volume | 155700 ų |
| 包络体积 envelope_volume | 199330 ų |
| 水化壳体积 shell_volume | 48554 ų |
| 包络直径 envelope_diameter | 112.0 Å |
| 壳层 Rg shell_rg | 41.08 Å |
| 包络 Rg envelope_rg | 33.12 Å |
| 形状 Rg shape_rg | 33.55 Å |
| 总 Rg total_rg | 34.04 Å |
| 总原子数 total_atoms | 8829 |
| 残基数 n_residues | 1136 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 106.9 Å |
| Rg (实空间) rg_real | 34.10 Å |
| Rg 误差 (实空间) rg_real_error | 0.62 Å |
| I(0) (实空间) i0_real | 2.6160e+08 |
| I(0) 误差 (实空间) i0_real_error | 4.1340e+06 |
| Rg (倒空间) rg_reciprocal | 34.17 Å |
| I(0) (倒空间) i0_reciprocal | 261600000.0000 |
| 解质量估计 total_estimate | 0.9049 |
| 解质量评级 solution_quality | EXCELLENT a EXCELLENT solution |
| P(r) 峰数 n_peaks | 1 |
| 主峰位置 r_peak_primary | 44.2 Å |
| 偏度 Skewness skewness | 0.177 |
| 峰度 Kurtosis kurtosis | -0.551 |
| 角度范围 angular_range | — – 0.2300 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 68290000.0000 |
| 实空间数据点数 n_real_points | 47 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.952; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.907 |
4. 晶体学与实验 4. Crystallography & Experiment
5. 实体与聚合体信息 (6)
6. 折叠分类 (SCOP + CATH) 12 domains
SCOP 2.08 (6 domains)
| 结构域编号 domain_id | d1m64a1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.138 — Multiheme cytochromes |
| 超家族 Superfamily superfamily | a.138.1 — Multiheme cytochromes |
| 家族 Family family | a.138.1.3 — Di-heme elbow motif |
| 结构域编号 domain_id | d1m64a2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.3 — FAD/NAD(P)-binding domain |
| 超家族 Superfamily superfamily | c.3.1 — FAD/NAD(P)-binding domain |
| 家族 Family family | c.3.1.4 — Succinate dehydrogenase/fumarate reductase flavoprotein N-terminal domain |
| 结构域编号 domain_id | d1m64a3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.168 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 超家族 Superfamily superfamily | d.168.1 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 家族 Family family | d.168.1.1 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 结构域编号 domain_id | d1m64b1 |
| 类 Class class | a — All alpha proteins |
| 折叠类型 Fold fold | a.138 — Multiheme cytochromes |
| 超家族 Superfamily superfamily | a.138.1 — Multiheme cytochromes |
| 家族 Family family | a.138.1.3 — Di-heme elbow motif |
| 结构域编号 domain_id | d1m64b2 |
| 类 Class class | c — Alpha and beta proteins (a/b) |
| 折叠类型 Fold fold | c.3 — FAD/NAD(P)-binding domain |
| 超家族 Superfamily superfamily | c.3.1 — FAD/NAD(P)-binding domain |
| 家族 Family family | c.3.1.4 — Succinate dehydrogenase/fumarate reductase flavoprotein N-terminal domain |
| 结构域编号 domain_id | d1m64b3 |
| 类 Class class | d — Alpha and beta proteins (a+b) |
| 折叠类型 Fold fold | d.168 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 超家族 Superfamily superfamily | d.168.1 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 家族 Family family | d.168.1.1 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
CATH v4.4 (6 domains)
| 结构域编号 domain_id | 1m64A01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 700 — Flavocytochrome C3; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 结构域编号 domain_id | 1m64A02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 1130 — Flavocytochrome C3; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Flavocytochrome C3; Chain A |
| 结构域编号 domain_id | 1m64A03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 50 — FAD/NAD(P)-binding domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — FAD/NAD(P)-binding domain |
| 结构域编号 domain_id | 1m64B01 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 90 — Alpha-Beta Complex |
| 拓扑 Topology topology | 700 — Flavocytochrome C3; Chain A, domain 1 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Succinate dehydrogenase/fumarate reductase flavoprotein, catalytic domain |
| 结构域编号 domain_id | 1m64B02 |
| 类 Class class | 1 — Mainly Alpha |
| 架构 Architecture architecture | 10 — Orthogonal Bundle |
| 拓扑 Topology topology | 1130 — Flavocytochrome C3; Chain A, domain 2 |
| 同源超家族 H-superfamily homologous superfamily | 10 — Flavocytochrome C3; Chain A |
| 结构域编号 domain_id | 1m64B03 |
| 类 Class class | 3 — Alpha Beta |
| 架构 Architecture architecture | 50 — 3-Layer(bba) Sandwich |
| 拓扑 Topology topology | 50 — FAD/NAD(P)-binding domain |
| 同源超家族 H-superfamily homologous superfamily | 60 — FAD/NAD(P)-binding domain |
