1m6b

Structure of the HER3 (ERBB3) Extracellular Domain

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Receptor protein-tyrosine kinase erbB-3

Homo sapiens

UniProt P21860

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Other combination Monomer Protein 1 其他Polymer 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 water × 1 Consistent with protein count
2 Other combination Monomer Protein 1 其他Polymer 1 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 SULFATE ION × 1 water × 1 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
3lmg 3lmg 6op9

3 assemblies

Homodimer
2l9u 3kex 3kex

3 assemblies

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1m6b 1m6b 3p11 4leo 4p59 4riw 4riw 4rix 4rix 4riy 4riy 5cus

30 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name ERB3_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–621； UniProt 20–640 Author chain B； PDBConstruct 1–621； UniProt 20–640

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1m6b
Deposition date deposition_date2002-07-15
Structure title titleStructure of the HER3 (ERBB3) Extracellular Domain
Keywords keywordstyrosine kinase; cell surface receptor; immunity, SIGNALING PROTEIN, TRANSFERASE; SIGNALING PROTEIN, TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m6b__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

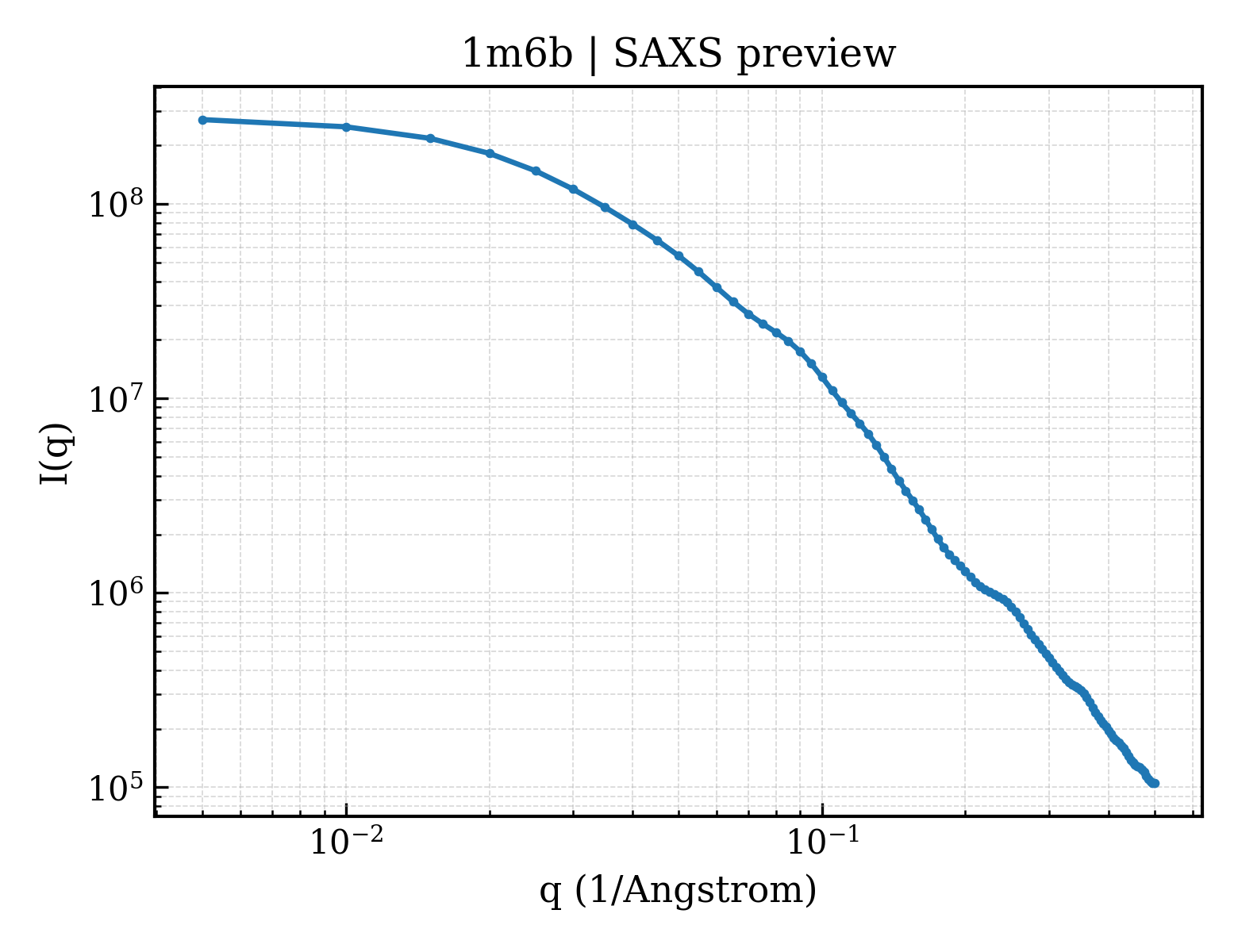

1m6b__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

1m6b__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）36.39 Å
Rg (electron density)36.15 Å
Total Rg36.41 Å
Atom count4332
Residues549
Excluded volume76106 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 1m6b__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 1m6b__assembly_2__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

▼

6. Fold Classification (SCOP + CATH) 16 domains

SCOP 2.08 (8 domains)

Domain ID domain_idd1m6ba1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamilyc.10.2 — L domain-like
Family Family familyc.10.2.5 — L domain
Domain ID domain_idd1m6ba2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamilyc.10.2 — L domain-like
Family Family familyc.10.2.5 — L domain
Domain ID domain_idd1m6ba3
Class classg — Small proteins
Fold Fold foldg.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamilyg.3.9 — Growth factor receptor domain
Family Family familyg.3.9.1 — Growth factor receptor domain
Domain ID domain_idd1m6ba4
Class classg — Small proteins
Fold Fold foldg.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamilyg.3.9 — Growth factor receptor domain
Family Family familyg.3.9.1 — Growth factor receptor domain
Domain ID domain_idd1m6bb1
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamilyc.10.2 — L domain-like
Family Family familyc.10.2.5 — L domain
Domain ID domain_idd1m6bb2
Class classc — Alpha and beta proteins (a/b)
Fold Fold foldc.10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Superfamily Superfamily superfamilyc.10.2 — L domain-like
Family Family familyc.10.2.5 — L domain
Domain ID domain_idd1m6bb3
Class classg — Small proteins
Fold Fold foldg.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamilyg.3.9 — Growth factor receptor domain
Family Family familyg.3.9.1 — Growth factor receptor domain
Domain ID domain_idd1m6bb4
Class classg — Small proteins
Fold Fold foldg.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamilyg.3.9 — Growth factor receptor domain
Family Family familyg.3.9.1 — Growth factor receptor domain

CATH v4.4 (8 domains)

Domain ID domain_id1m6bA01
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily20 — Receptor L-domain
Domain ID domain_id1m6bA02
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
Domain ID domain_id1m6bA03
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily20 — Receptor L-domain
Domain ID domain_id1m6bA04
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
Domain ID domain_id1m6bB01
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily20 — Receptor L-domain
Domain ID domain_id1m6bB02
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
Domain ID domain_id1m6bB03
Class class3 — Alpha Beta
Architecture architecture80 — Alpha-Beta Horseshoe
Topology topology20 — 24 nucleotide stem-loop, u2 snrnp hairpin iv. U2 a'; Chain A
Homologous superfamily homologous superfamily20 — Receptor L-domain
Domain ID domain_id1m6bB04
Class class2 — Mainly Beta
Architecture architecture10 — Ribbon
Topology topology220 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A domain 2
Homologous superfamily homologous superfamily10 — Hormone Receptor, Insulin-like Growth Factor Receptor 1; Chain A, domain 2
▶

7. Citations (1)
