SAXSdb — 1m6e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

S-adenosyl-L-methionine:salicylic acid carboxyl methyltransferase

Clarkia breweri

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	LUTETIUM (III) ION × 2 S-ADENOSYL-L-HOMOCYSTEINE × 2 2-HYDROXYBENZOIC ACID × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q9SPV4_CLABR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain X； PDBConstruct 1–359； UniProt 1–359

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m6e
Deposition date deposition_date	2002-07-16
Structure title title	CRYSTAL STRUCTURE OF SALICYLIC ACID CARBOXYL METHYLTRANSFERASE (SAMT)
Keywords keywords	Rossmann fold, protein-small molecule complex, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m6e__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1m6e__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

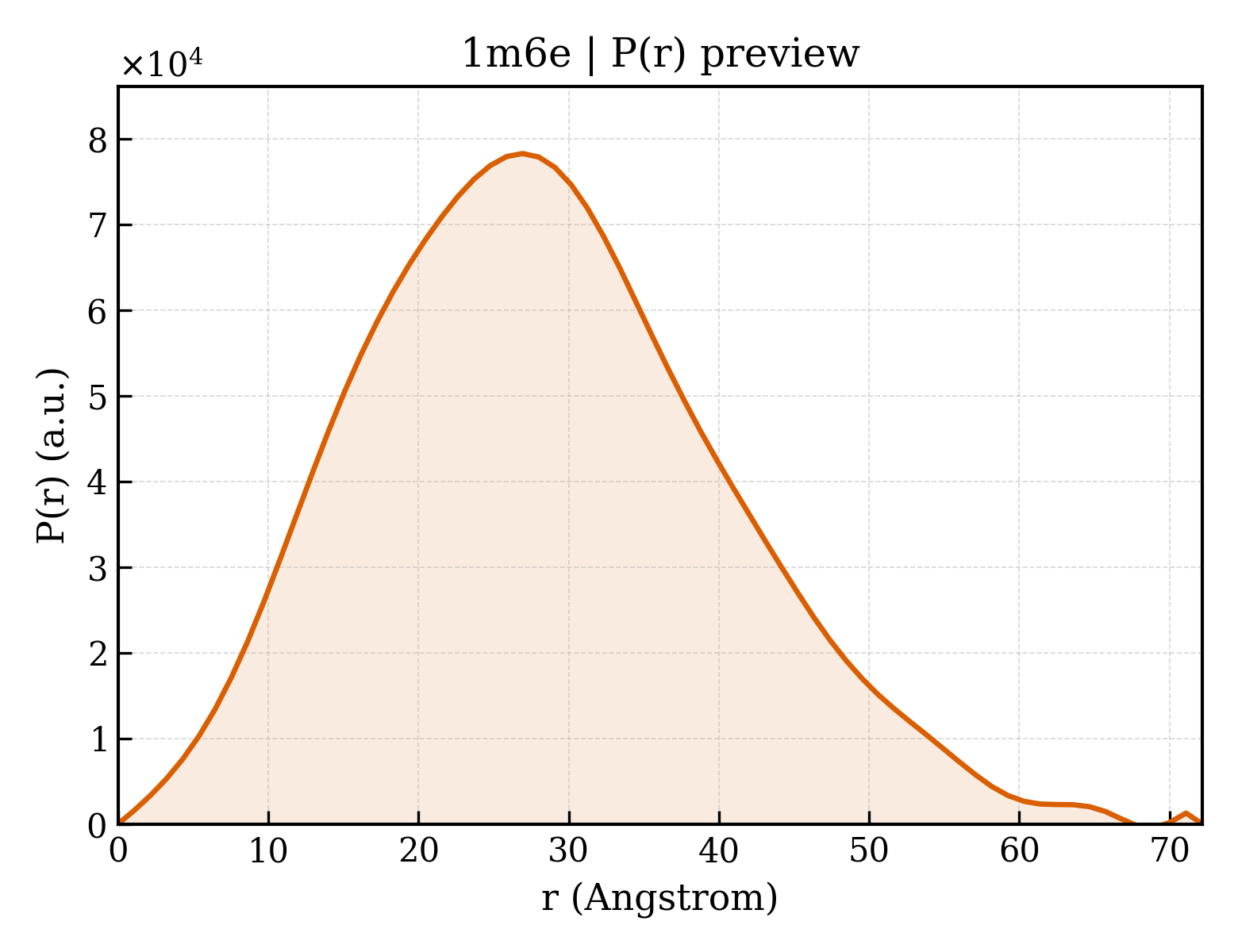

1m6e__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.26 Å
Rg (electron density)	28.34 Å
Total Rg	29.25 Å
Atom count	5726
Residues	718
Excluded volume	102050 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m6e__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	S-adenosyl-L-methionine:salicylic acid carboxyl methyltransferase
Molecular weight formula_weight	40331.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X
Atom count atom_count	2877

MDVRQVLHMKGGAGENSYAMNSFIQRQVISITKPITEAAITALYSGDTVTTRLAIADLGCSSGPNALFAVTELIKTVEELRKKMGRENSPEYQIFLNDLPGNDFNAIFRSLPIENDVDGVCFINGVPGSFYGRLFPRNTLHFIHSSYSLMWLSQVPIGIESNKGNIYMANTCPQSVLNAYYKQFQEDHALFLRCRAQEVVPGGRMVLTILGRRSEDRASTECCLIWQLLAMALNQMVSEGLIEEEKMDKFNIPQYTPSPTEVEAEILKEGSFLIDHIEASEIYWSSCTKDGDGGGSVEEEGYNVARCMRAVAEPLLLDHFGEAIIEDVFHRYKLLIIERMSKEKTKFINVIVSLIRKSD

Source Source

Source organism organism	Clarkia breweri
NCBI taxonomy ID ncbi_taxonomy_id	36903
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	LUTETIUM (III) ION
Molecular weight formula_weight	175.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	S-ADENOSYL-L-HOMOCYSTEINE
Molecular weight formula_weight	384.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-HYDROXYBENZOIC ACID
Molecular weight formula_weight	138.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	14

▼

6. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1m6ex_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.66 — S-adenosyl-L-methionine-dependent methyltransferases
Superfamily Superfamily superfamily	c.66.1 — S-adenosyl-L-methionine-dependent methyltransferases
Family Family family	c.66.1.35 — Salicylic acid carboxyl methyltransferase (SAMT)

CATH v4.4 (2 domains)

Domain ID domain_id	1m6eX01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	1200 — Non-ribosomal Peptide Synthetase Peptidyl Carrier Protein; Chain A
Homologous superfamily homologous superfamily	270 — Methyltransferase, alpha-helical capping domain

Domain ID domain_id	1m6eX02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	150 — Vaccinia Virus protein VP39

▶

Unit-cell length a length_a	141.740 Å
Unit-cell length b length_b	141.740 Å
Unit-cell length c length_c	63.983 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	24.810 Å
R factor r_factor	—
R_work r_work	0.2253
R_free r_free	0.2880
