SAXSdb — 1m6k

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

beta-lactamase OXA-1

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	(4S)-2-METHYL-2,4-PENTANEDIOL × 10 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BLO1_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–251； UniProt 24–276 Author chain B； PDBConstruct 1–251； UniProt 24–276

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1m6k
Deposition date deposition_date	2002-07-16
Structure title title	Structure of the OXA-1 class D beta-lactamase
Keywords keywords	side chain modification, lysine carbamylation, hydrolysis, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1m6k__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

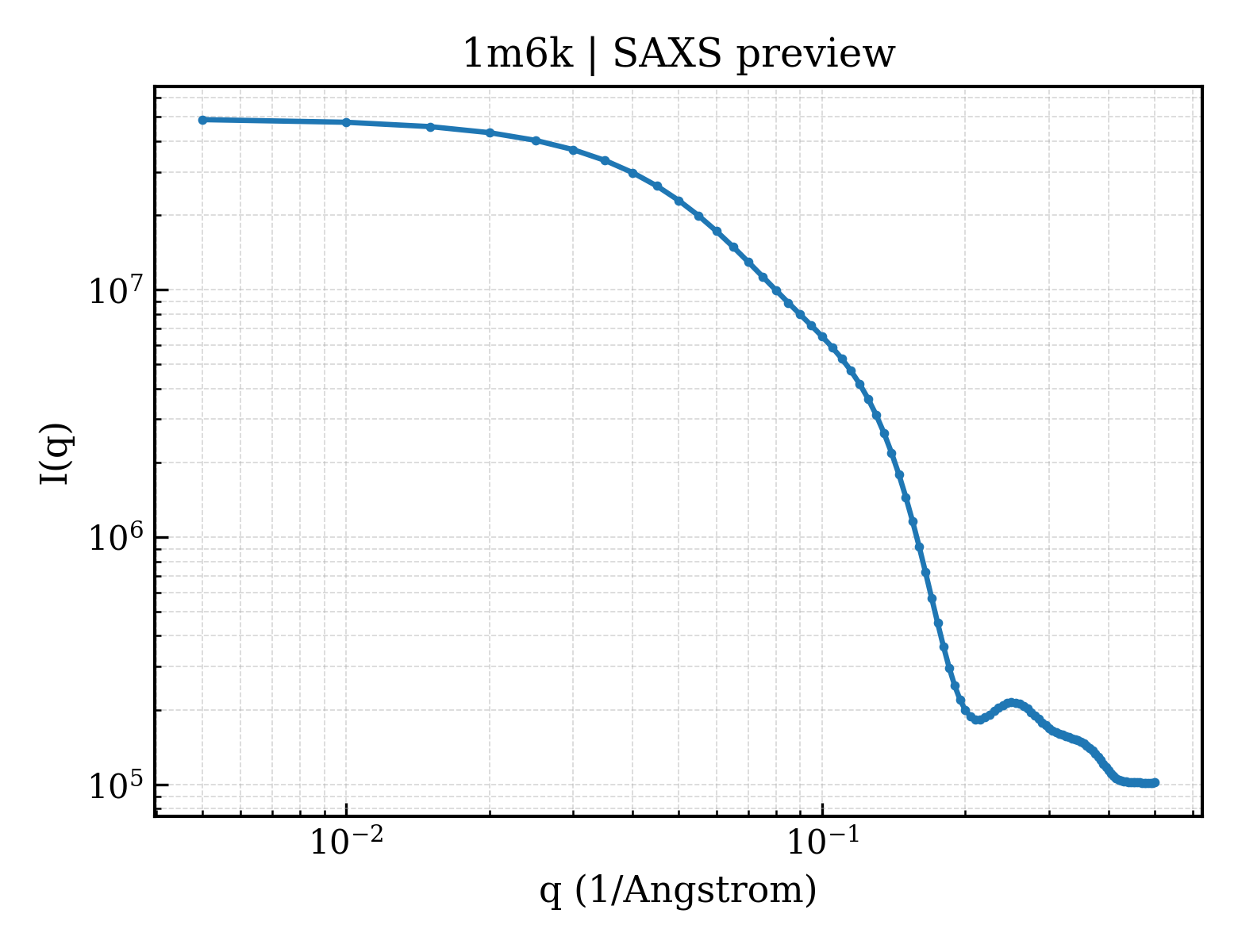

1m6k__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

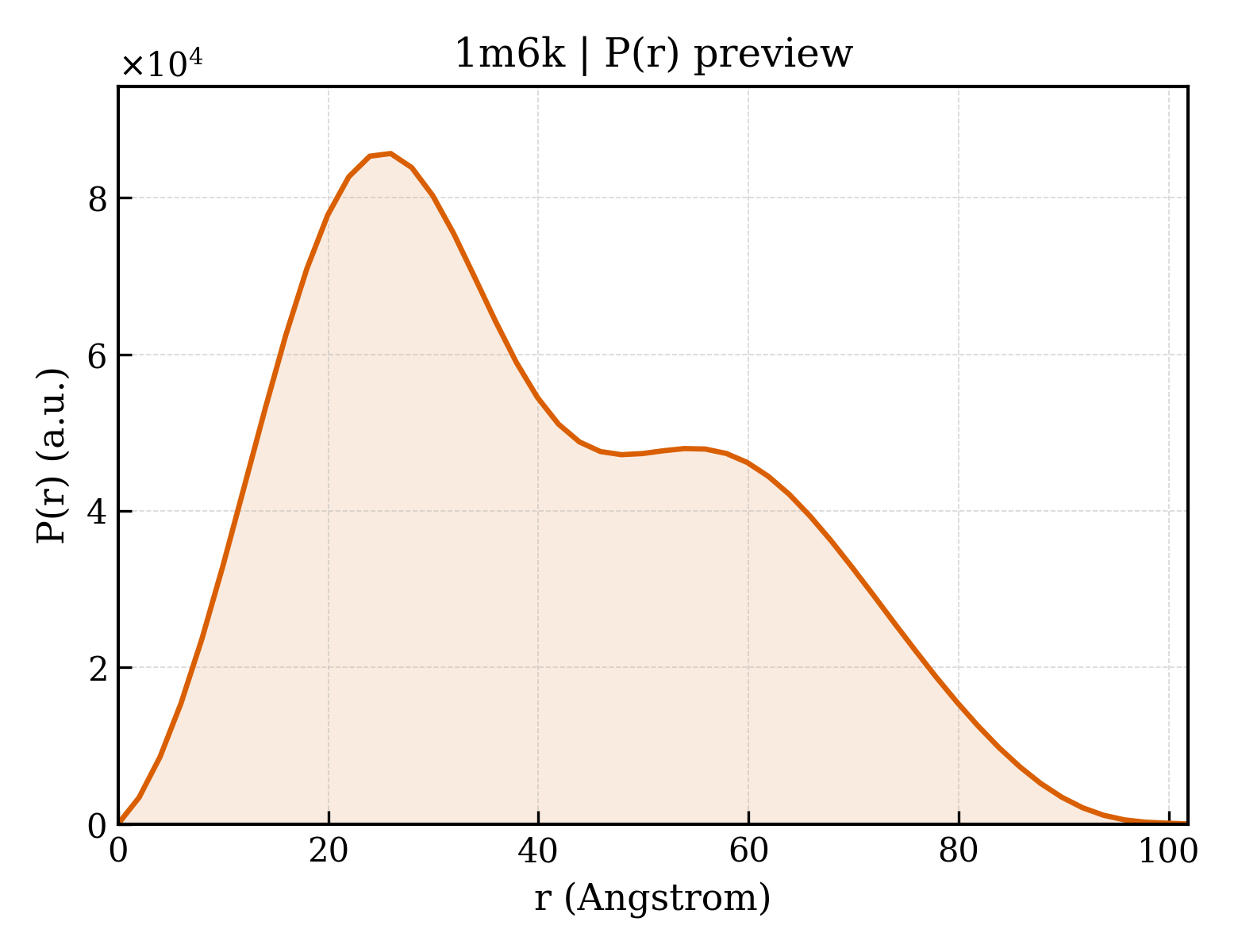

1m6k__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.93 Å
Rg (electron density)	30.32 Å
Total Rg	30.85 Å
Atom count	4005
Residues	498
Excluded volume	71895 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1m6k__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	beta-lactamase OXA-1
Molecular weight formula_weight	28203.8 kDa
EC 编号 ec_number	3.5.2.6
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4570

STDISTVASPLFEGTEGCFLLYDASTNAEIAQFNKAKCATQMAPDSTFKIALSLMAFDAEIIDQKTIFKWDKTPKGMEIWNSNHTPKTWMQFSVVWVSQEITQKIGLNKIKNYLKDFDYGNQDFSGDKERNNGLTEAWLESSLKISPEEQIQFLRKIINHNLPVKNSAIENTIENMYLQDLDNSTKLYGKTGAGFTANRTLQNGWFEGFIISKSGHKYVFVSALTGNLGSNLTSSIKAKKNAITILNTLNL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	10

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	559

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d1m6ka_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
Family Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

Domain ID domain_id	d1m6kb_
Class class	e — Multi-domain proteins (alpha and beta)
Fold Fold fold	e.3 — beta-lactamase/transpeptidase-like
Superfamily Superfamily superfamily	e.3.1 — beta-lactamase/transpeptidase-like
Family Family family	e.3.1.1 — beta-Lactamase/D-ala carboxypeptidase

CATH v4.4 (2 domains)

Domain ID domain_id	1m6kA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	710 — Beta-lactamase
Homologous superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

Domain ID domain_id	1m6kB00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	710 — Beta-lactamase
Homologous superfamily homologous superfamily	10 — DD-peptidase/beta-lactamase superfamily

▶

Unit-cell length a length_a	36.020 Å
Unit-cell length b length_b	51.620 Å
Unit-cell length c length_c	72.890 Å
Unit-cell angle α angle_alpha	70.19 °
Unit-cell angle β angle_beta	84.11 °
Unit-cell angle γ angle_gamma	81.51 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	48.210 Å
R factor r_factor	0.1820
R_work r_work	0.1820
R_free r_free	0.2030
